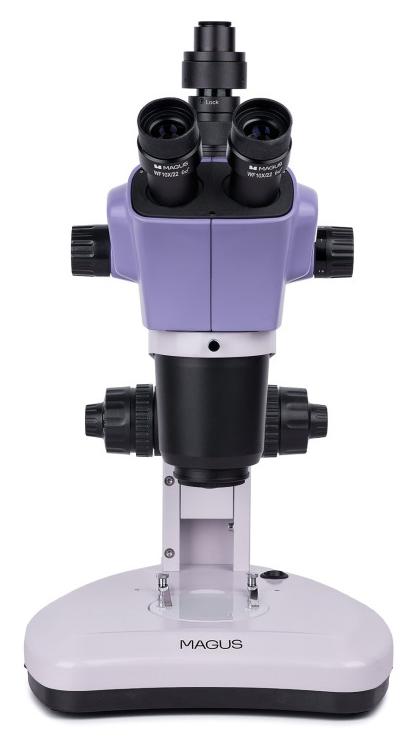

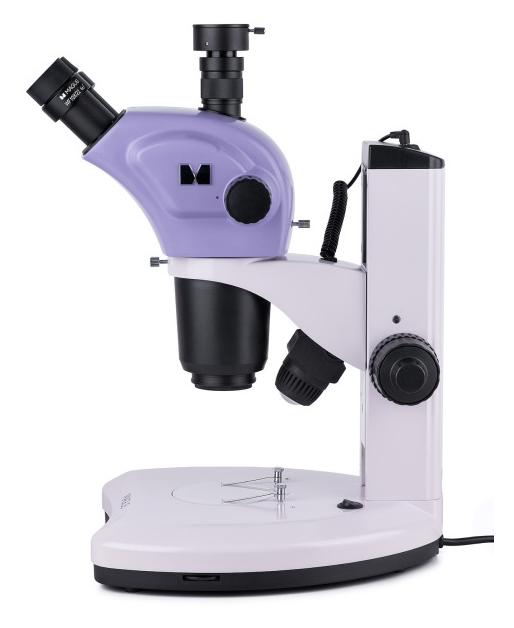

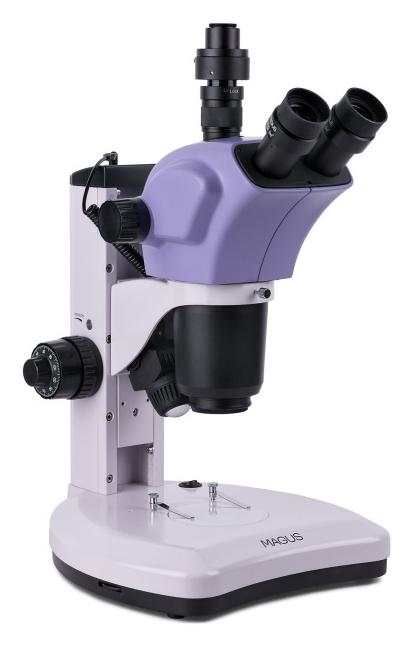

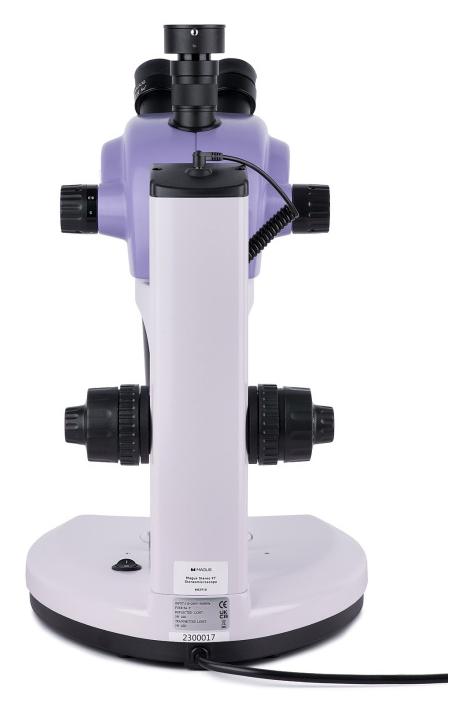

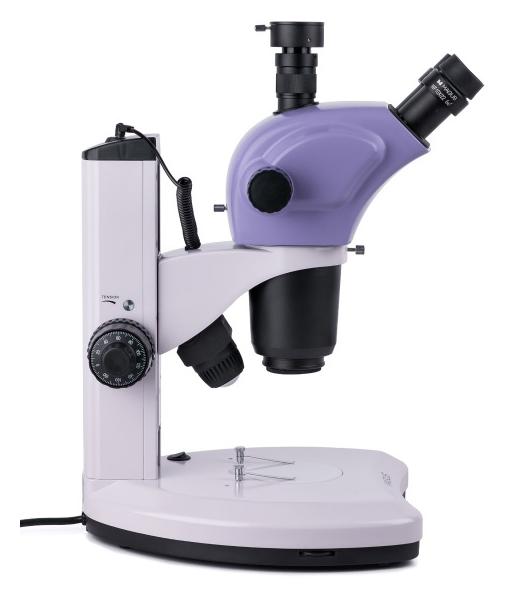

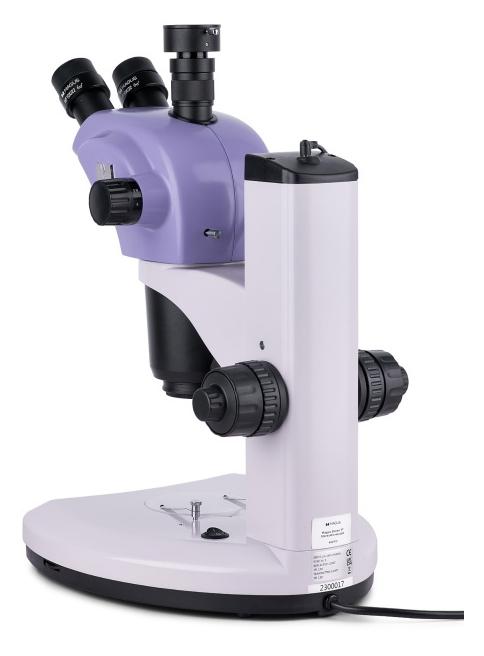

The MAGUS Stereo D9T LCD stereo microscope creates a three-dimensional, non-inverted image and provides a large working distance. The Greenough optical system allows sharp, spatial observations, and thanks to the LED illuminators (reflective and transmitted), the microscope is suitable for a variety of applications - from service work to quality control. The zoom lens in combination with 10x eyepieces provides a magnification range of 7-63x (optionally up to 315x).

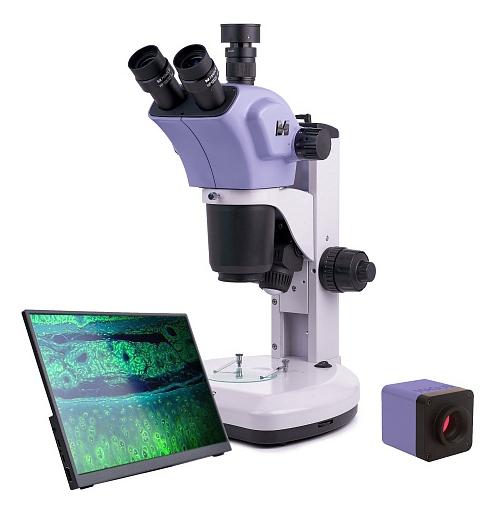

The set includes a MAGUS CHD10 camera (2 MP, HDMI, 60 fps, Full HD, SONY Starvis matrix) and a MAGUS MCD20 LCD monitor (13.3", IPS, 1920x1080). The camera does not require a computer - connecting via HDMI allows direct display of the image on the screen. The monitor can be set on a tripod or flat. The microscope is equipped with a trinocular head, a mechanism for fine and coarse focus adjustment and a set of table plates. The LED illuminators have a lifespan of 50,000 h.

Key Features

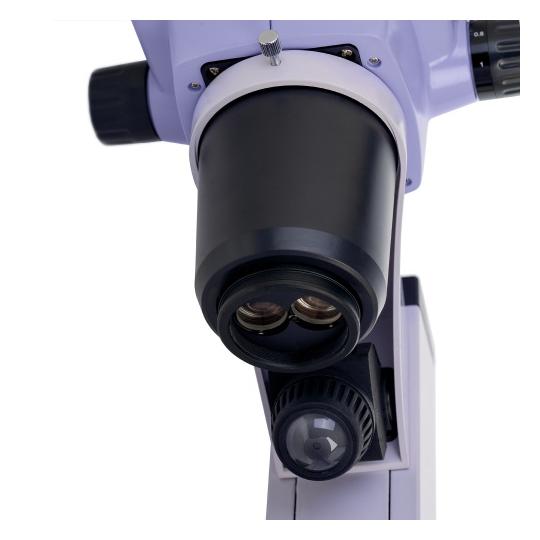

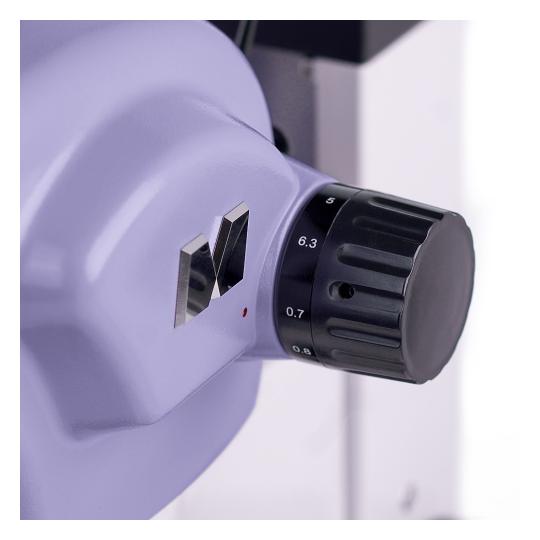

• 0.7–6.3x zoom lens (9:1 ratio)
• 7–63x magnification (optional 3.5–315x)
• 360° rotating trinocular head
• Greenough optical system – spatial image with large depth of field
• LED: reflected light (oblique, 3 W) and transmitted light (5 W)
• Full HD 2 MP camera with HDMI – 60 fps

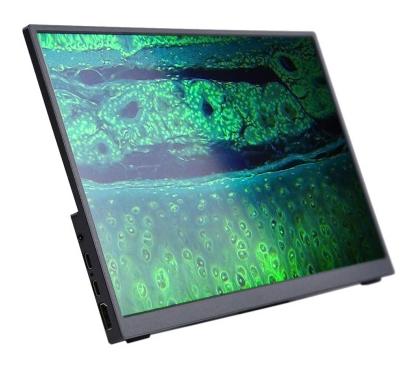

• 13.3” LCD monitor (IPS, 1920x1080)

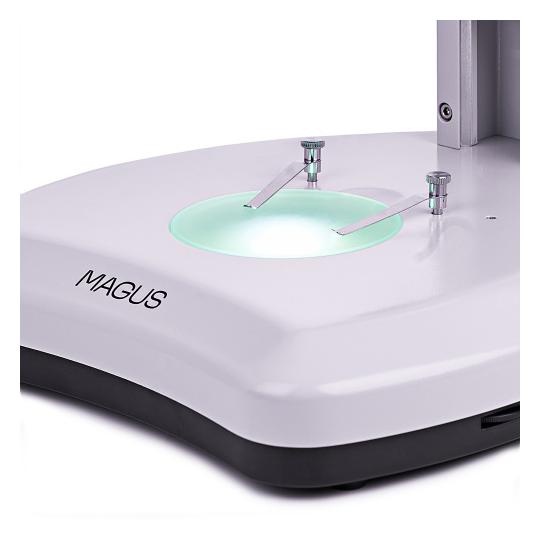

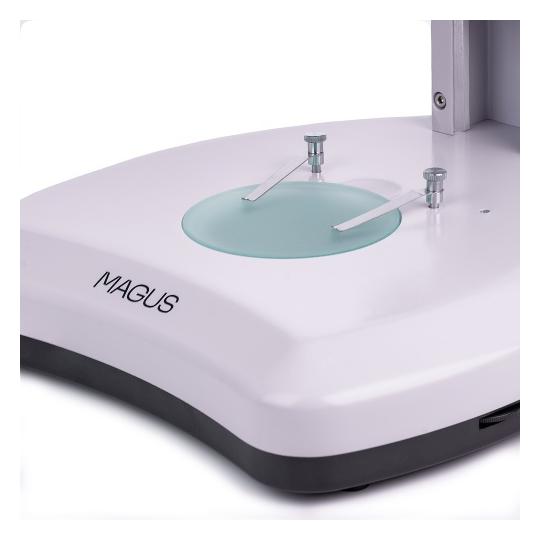

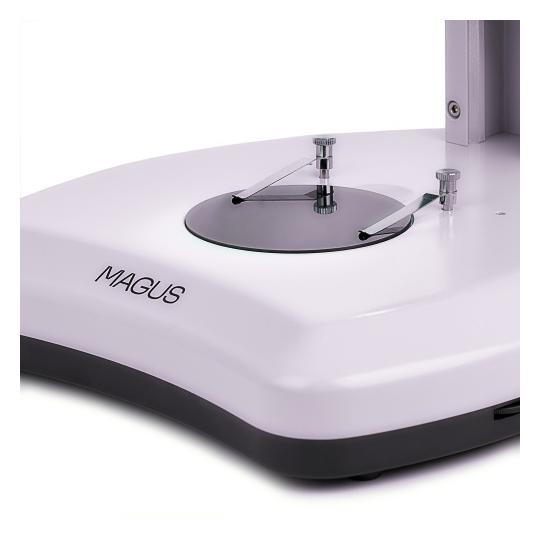

• tiles: white, transparent, black and white
• fine and coarse focus adjustment
• expandable with glasses, lenses, polarizing devices and other accessories

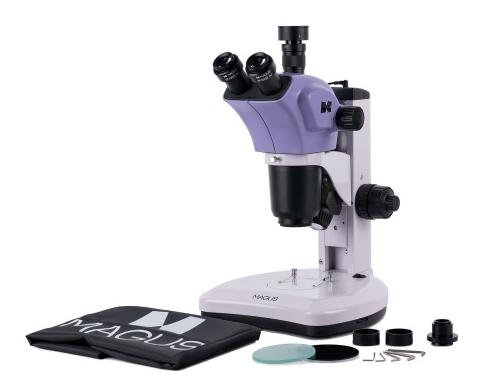

Set components

• MAGUS Stereo D9T LCD microscope

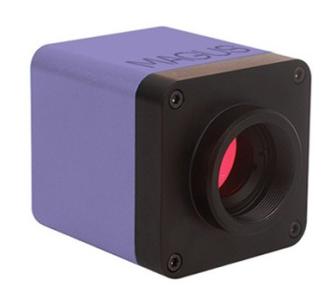

• MAGUS CHD10 camera with accessories (HDMI, power supply, 32 GB SD card, mouse)
• MAGUS MCD20 monitor
• trinocular head

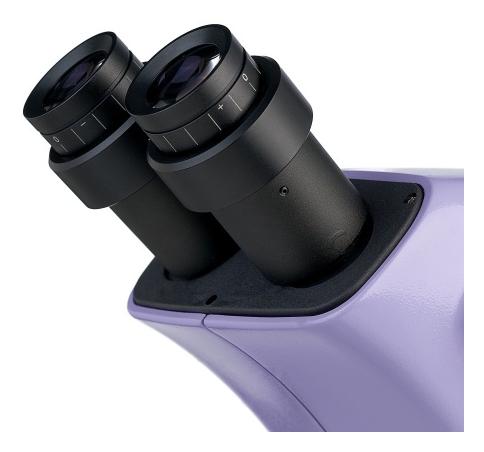

• eyepieces 10x/22 mm (2 pcs.)

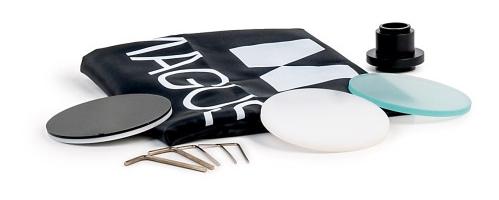

• tiles: white, transparent, black and white
• LED oblique illuminator
• C-mount adapter
• power cord, dust cover
• user manual and warranty card

Technical parameters

• Product ID: 83045
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018584
• package size: 44x42x67 cm
• shipment weight: 13.65 kg
• type: digital, stereoscopic/optical
• head: trinocular, 360° rotatable, 45° tilt angle
• magnification: 7–63x (optional 3.5–315x)
• eyepieces: 10x/22 mm (*optional: 15x/15 mm, 16x/15 mm, 20x/12 mm, 25x/9 mm)
• Lens: 0.7–6.3x (*with additional 0.5x or 2x)
• working distance: 110 mm (*up to 188 mm with 0.5x)
• focus adjustment: coarse and fine
• lighting: LED – transmitted light 5 W, reflected light 3 W
• camera: SONY Starvis, 2 MP, 1920x1080, 60 fps, HDMI
• monitor: IPS 13.3", 1920x1080, contrast 1000:1, brightness 400 cd/m²
• power supply: AC 220 V / DC 12 V (camera), 5–12 V (monitor)
• microscope weight: 8 kg
• microscope dimensions: 280x463x335 mm
