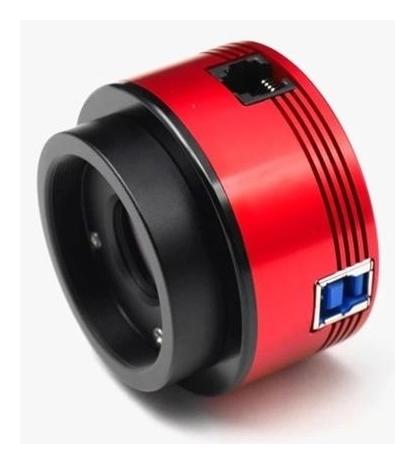

ZWO ASI174MM is a camera with a monochrome Sony Exmor IMX174 2.35MP matrix, equipped with a "global shutter" type shutter.
The matrix with a diagonal of 1 / 1.2 "and a single pixel size of 5.86 µm make it a great camera for lunar and planetary astrophotography in long-focal telescopes (RC, Cassegrain, SCT, MAK). QE, low read noise and very fast speed - this camera will please every user.

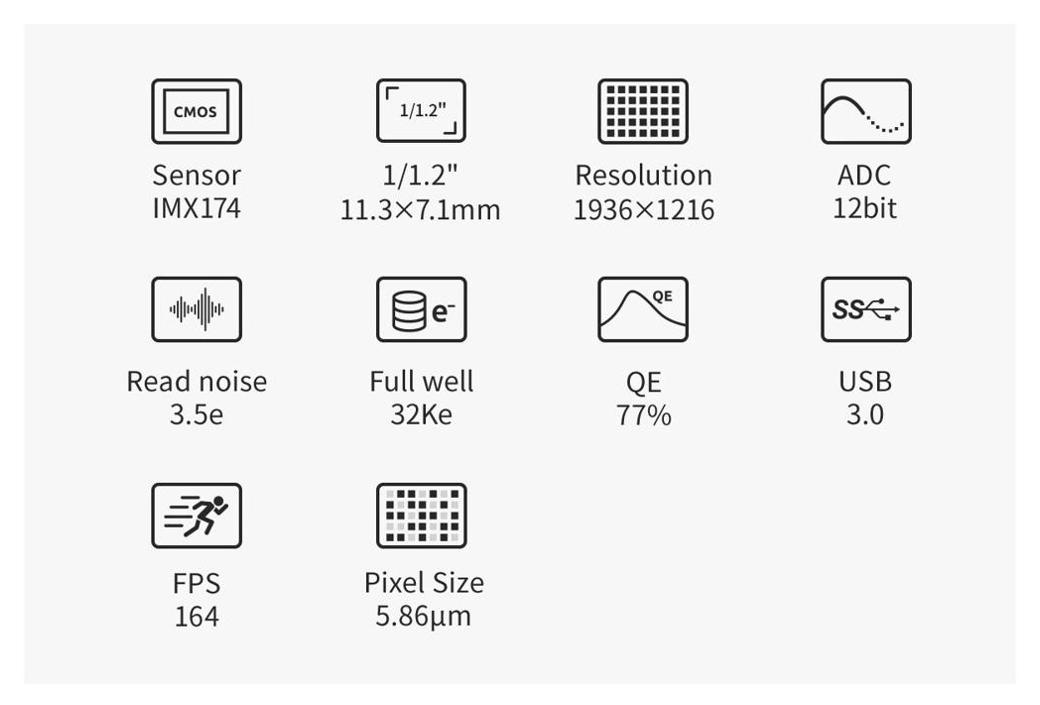

See also: Top Pick Nomination at Astrobin for our astrophotographer - Moon photographed by GSO RC10 + ZWO ASI 174 MM (click to see this photo) • matrix: 1 / 1.2 "CMOS IMX174LLJ / IMX174LQJ
• resolution: 2.3 MPix, 1936 × 1216
• single pixel size: 5.86 µm
• range of exposure times: 32 µs - 300 s
• ROI (select area of interest): yes

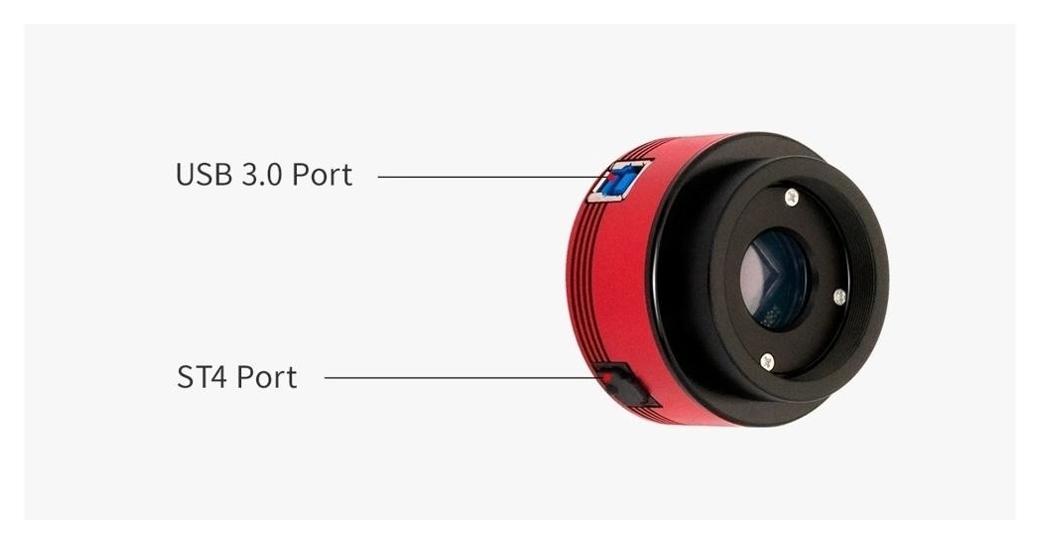

• communication port standard: USB3.0 / USB2.0
• Bit rate: 12bit (12bit ADC)
• adapters / connectors: 2 "/ 1.25" / M42x0.75
• dimensions: diameter φ = 62 mm x 41 mm
• weight: 140 g
Supported resolutions
• 12bit ADC, binning 1 × 1:
1936X1216 @ 128FPS, 640 × 480 @ 309FPS, 320 × 240 @ 577FPS
• 10bit ADC, binning 1 × 1:
1936X1216 @ 164FPS, 640 × 480 @ 397FPS, 320 × 240 @ 740FPS
• binning 2 × 2:

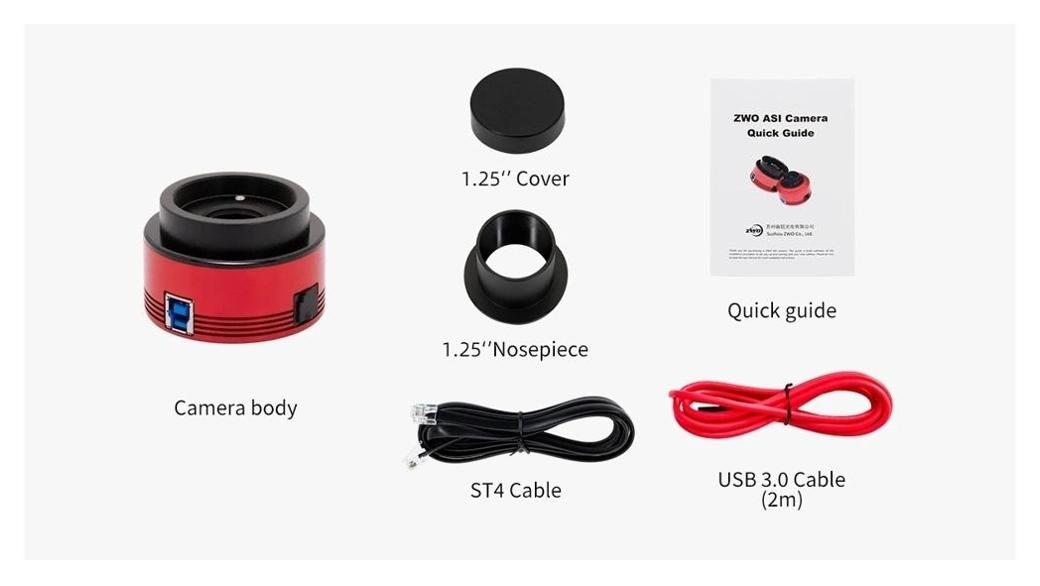

968 × 608 @ 164FPS • camera (body, without lens)
• 2 meter ST4 guiding cable
• case back
• nose T2 / 1.25 "
• 2 meters USB cable
• drivers and additional software (Mac, PC and Linux) - online download from the manufacturer's website 24 months
|
