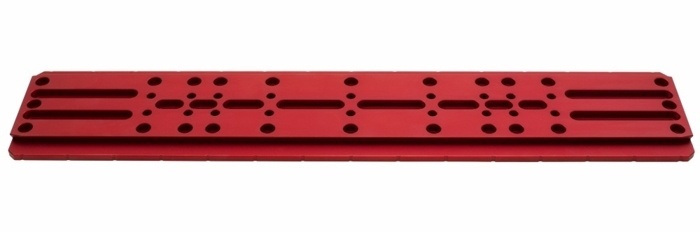

Losmandy style dovetail plate 495 mm PLUS (PrimaLuceLab, SKU: PLLLOS495P ) is a long 4″ mounting plate (Losmandy D) designed to stably mount medium and heavier telescopes on Losmandy clamps. CNC milled from a single block of 6061-T6 aluminum and hard-anodized, it provides high rigidity, and the modular hole pattern of the PLUS system allows for easy addition of tube clamps, guides or EAGLE accessories without drilling new holes.
• Losmandy D standard – 100 mm wide, compatible with EQ8, CGX-L, GM2000, AZ-EQ6 (with Losmandy adapter) and many others
• 495 mm length allows for a wide balance range for tubes weighing up to ≈ 25 kg
• PLUS hole system – M6 threads and Ø6.5 mm holes spaced every 55 mm along the board axis
• chamfered contact edges – smooth insertion into the mounting clamp without the risk of scratching the anode
• milled load-relieving pockets – optimal strength-to-weight ratio
• hard anodizing (PrimaLuceLab red) – durable protection against corrosion and abrasion
• Losmandy PLUS rail 495 mm
• length: 495 mm
• width: 100 mm (Losmandy D)
• profile thickness: 13 mm
• material: 6061-T6 aluminum, hard anodized
• threads/holes: M6 + Ø6.5 mm (55 mm axial spacing)
• weight: 1.2 kg
• recommended tube weight: ≤ 25 kg
• Compatibility: PLUS system clamps and accessories; mounts with Losmandy D clamps
• manufacturer: PrimaLuceLab – Italy
The 495mm PLUS rail provides rigid, secure mounting for medium and large instruments, while the modular hole pattern makes it easy to expand the set with a guide, parallel plates or EAGLE computer, creating a fully configurable astrophotography system.
