Svbony SV601 Microscope with SV189 Microscope Camera (SKU: F9365A-W9148A) Svbony microscopes opinie

171 EUR price without VAT: 139 EUR Shop online: ● ready for shipping  Shop in Warsaw (qty): 1 ● ready for shipping  Shop in Chorzow (qty): 1 ● ready for shipping

CHEAP DELIVERY TO EUROPEAN COUNTRIES CHECK IT OUT!

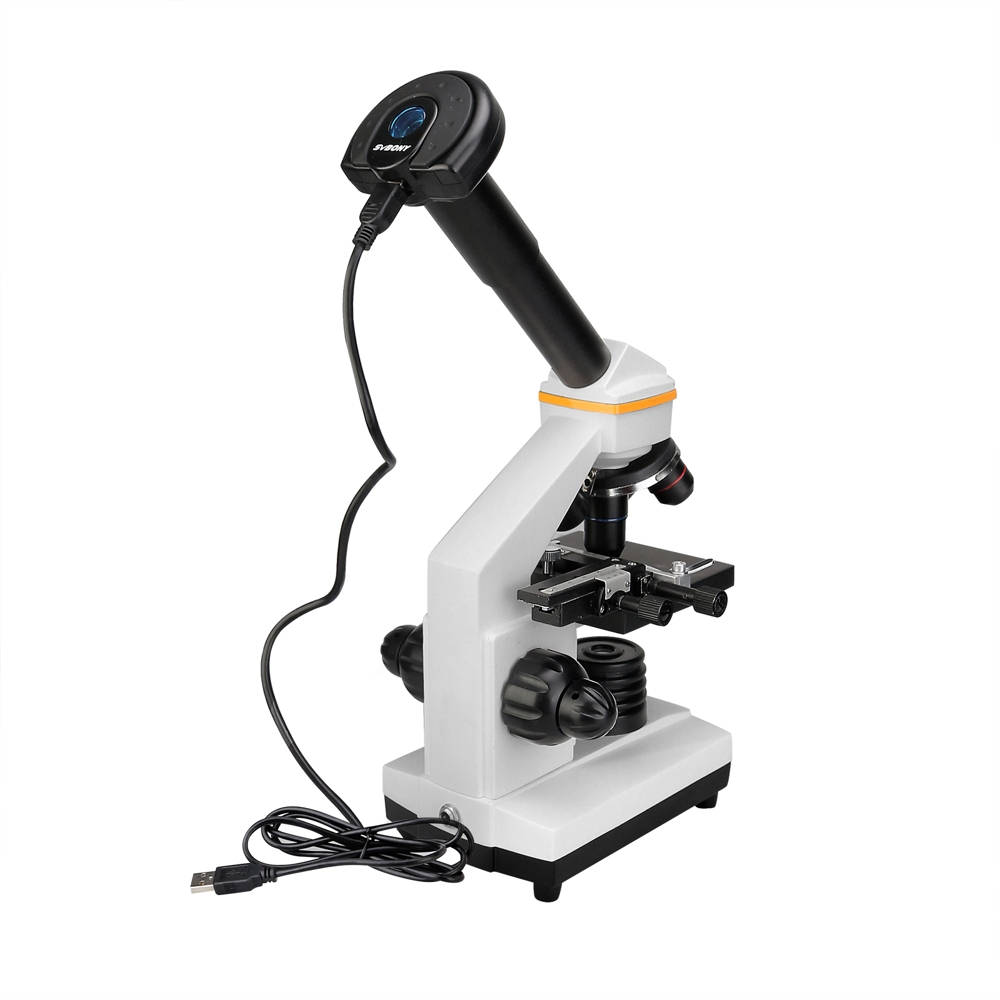

The Svbony SV601 microscope with the Svbony SV189 camera is a high-quality set that performs excellently not only as a laboratory instrument but also as an educational and demonstration tool.

This microscope features a classic design known from most optical microscopes. It is equipped with 4×, 10× and 40× objectives which, when combined with WF 10× and WF 20× eyepieces, provide a magnification range of 40–1600× — fully sufficient for most microbiological and histological observations. Thanks to the dual illumination system, observations can be carried out both in reflected and transmitted light.

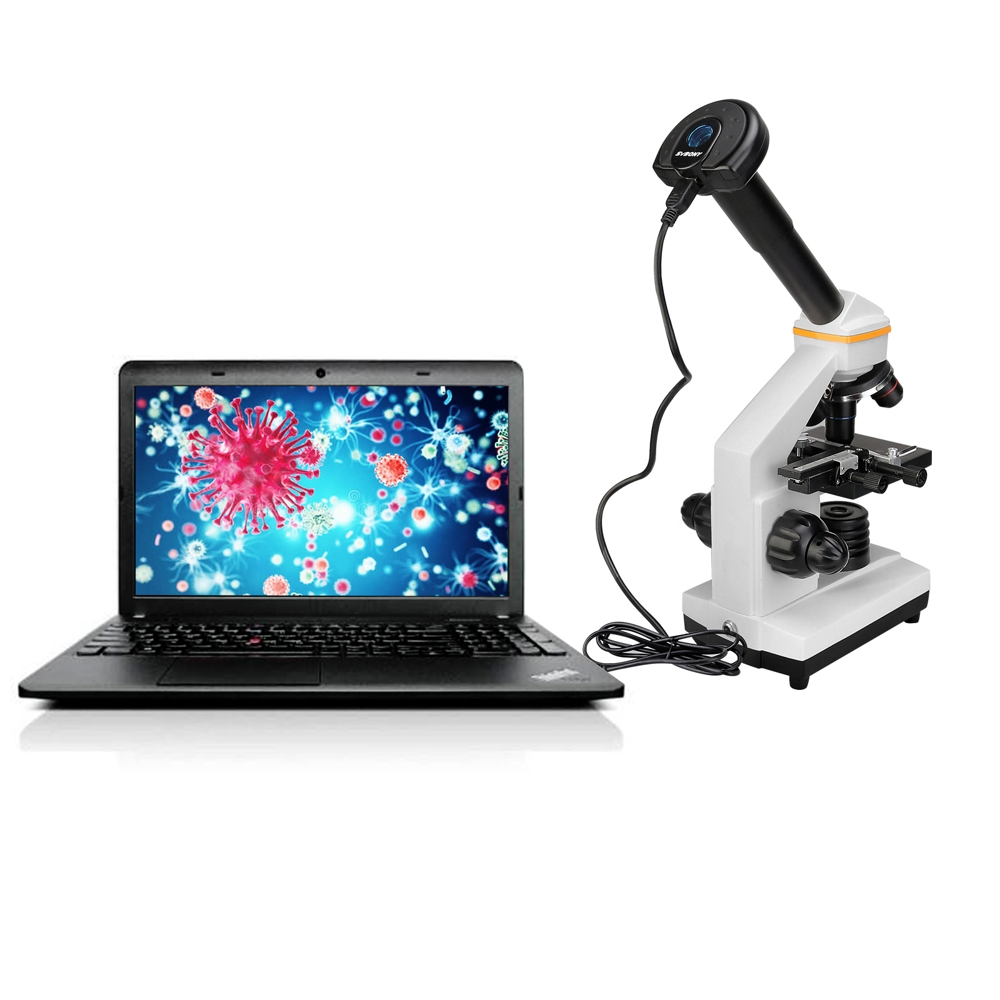

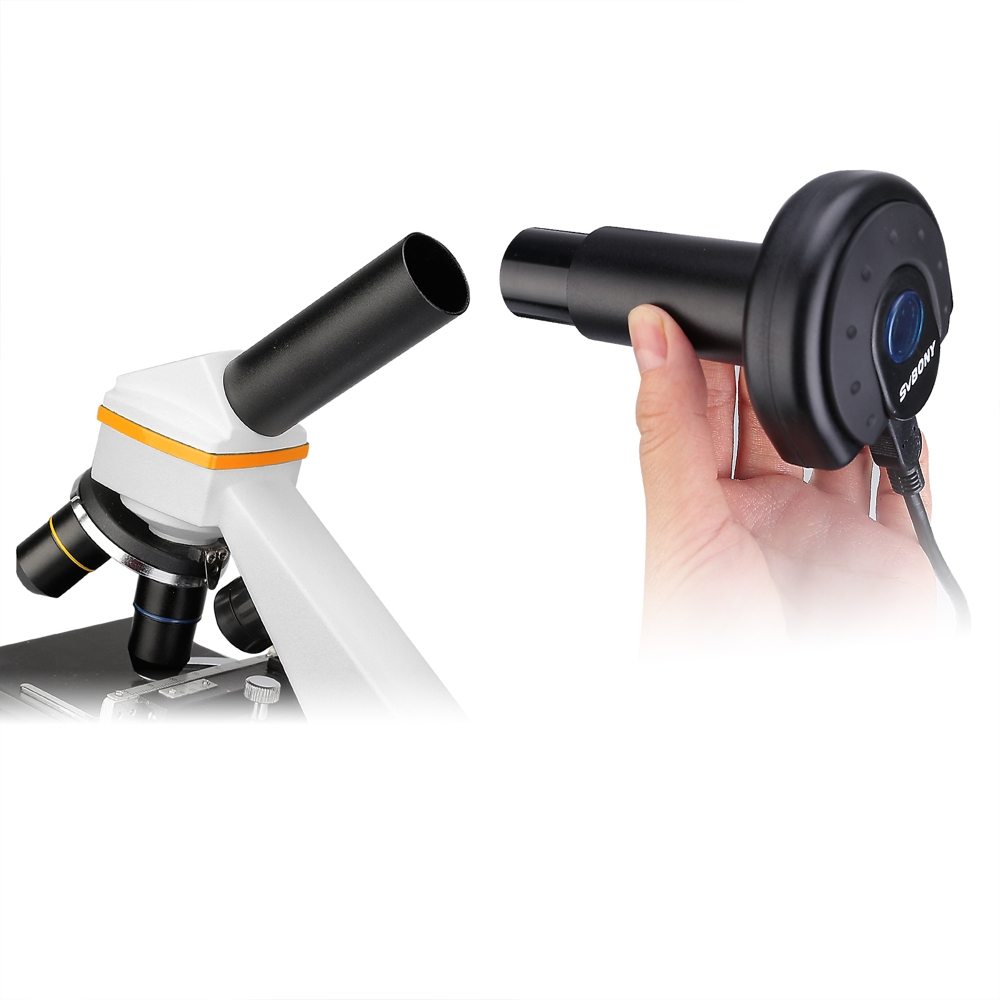

The set includes the Svbony SV189 camera, which is mounted in place of the eyepiece using the included adapter. It allows real-time presentation and discussion of the observed specimen, as well as saving images and videos — enabling the creation of high-quality materials for remote teaching.


Key features of the Svbony SV601 microscope with Svbony SV189 camera

• optical system with three objectives
• 40–1600× magnification
• 1.3 MP camera with photo and video recording
• dual LED illumination
• rotatable eyepiece tube

Technical specifications — microscope

• magnification: 40–1600×
• eyepieces: WF 10× / WF 20×
• eyepiece inclination: 45°
• objectives: 4×, 10×, 40×
• mechanical stage: 90 × 90 mm
• focusing system: coaxial coarse and fine adjustment
• illumination type: upper / lower
• light source: LED
• power supply: mains / 2× AAA batteries (not included)
• color filter: 6 colors
• body material: metal
• dimensions: 155 × 110 × 290 mm
• weight: 1200 g

Technical specifications — camera

• sensor type: CMOS
• sensor resolution: 1.3 MP; 1/4"
• pixel size: 2.8 × 2.8 µm
• spectral range: 400–1000 nm
• still image resolution: 1280 × 1024 px; 640 × 480 px; 320 × 240 px
• video resolution: 1280 × 1024 px @ 24 fps
• sensitivity: 1 V / lux-sec @ 550 nm
• shutter type: electronic, rolling shutter
• image formats: .jpeg / .bmp
• white balance: manual / automatic
• compatible operating systems: Windows, MacOS
• interface: USB 2.0
• weight: 90 g

Included items

• Svbony SV601 microscope
• Svbony SV189 camera
• documentation

Warranty

24 months
