The MAGUS MCD40 LCD monitor (MAGUS, SKU: 83211) is designed to work with MAGUS CHD40 and CHD50 digital cameras, creating a complete microscope visualization system. The 13.3" IPS screen displays an image at a resolution of 3840×2160 pixels (4K), providing high image quality and wide viewing angles.
• IPS matrix with wide viewing angles of 178°/178°
• resolution 3840×2160 pixels (4K)
• screen size 13.3"
• HDMI interface for direct connection to a digital camera
• can be placed on a stand or mounted to a camera or microscope
• brightness 400 cd/m² and contrast 1000:1
• LED backlight with a lifespan of 50,000 hours

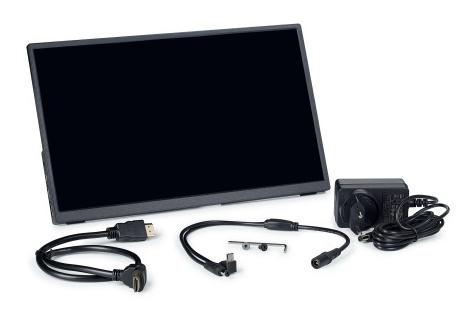

• MAGUS MCD40 LCD monitor
• Product ID: 83211
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555019338
• Package size (L × W × D): 35×24×6 cm
• shipment weight: 1.25 kg
• matrix type: IPS
• display diagonal: 13.3"
• resolution: 3840×2160 px
• Aspect ratio: 16:9
• brightness: 400 cd/m²
• number of colors: 16.7 million
• contrast: 1000:1
• viewing angles: 178°/178°
• active area size: 295×165 mm
• pixel size: 0.154×0.154 mm
• optical source frequency: 60 Hz
• backlight type: LED
• backlight lifespan: 50,000 h
• interface: HDMI
• operating temperature range: –15...+55°C
• operating humidity range: 10–90%
• power supply: AC 110–220 V, DC 5–12 V/1 A (Type-C)
• power consumption: 12 W (max)
The MCD40 monitor is a universal solution for digital microscopy, providing high image quality and the convenience of real-time observation without the need for a computer.
