Digital Camera MAGUS CBF90 (SKU: 83199) Magus microscopes opinie

6639 zł price without VAT: 5397,56 zł Shop online: ● on request  Shop in Warsaw (qty): ● on request  Shop in Chorzow (qty): ● on request

CHEAP DELIVERY TO EUROPEAN COUNTRIES CHECK IT OUT!

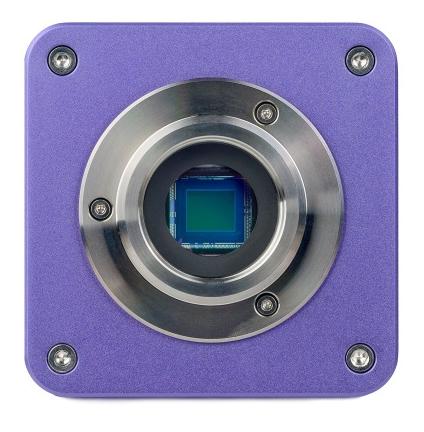

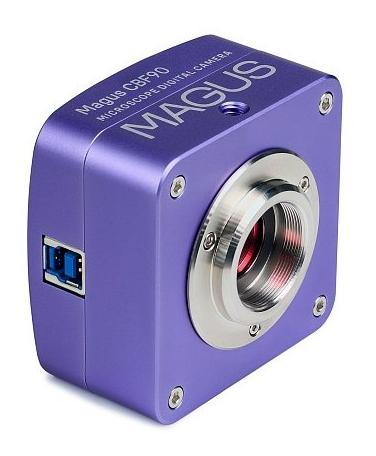

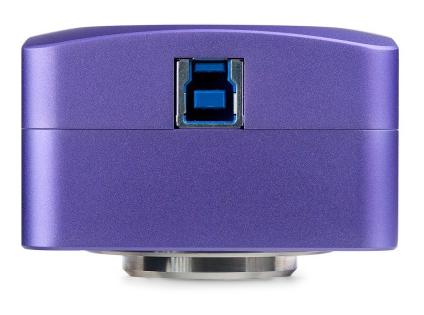

The MAGUS CBF90 digital camera (MAGUS, SKU: 83199) is a professional tool for microscopic imaging, allowing you to take pictures and record videos, edit material, take measurements and present the image in real time on an external monitor. The high sensitivity of the SONY Exmor CMOS matrix and the USB 3.0 interface ensure smooth operation even in low light conditions.

Key Features

• 2/3" SONY Exmor CMOS color sensor
• two operating modes: 2448×2048 px at 35 fps and 1224×1024 px at 50 fps
• Light sensitivity 1146 mV at 1/30 s
• USB 3.0 interface with a throughput of 5 Gb/s
• ability to perform linear and angular measurements (after calibration)
• built-in infrared filter (spectral range 380–650 nm)
• compatibility with C-type adapters and rings for various tube diameters
• recording movies and saving images in *.jpg, *.bmp, *.png, *.tif, *.wmv, *.avi, *.h264, *.h265 formats

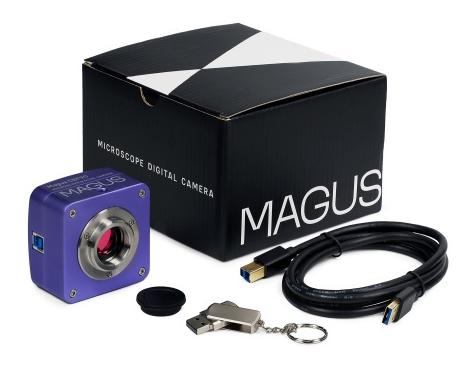

Set components

• MAGUS CBF90 digital camera
• USB cable
• installation CD with drivers and software
• user manual and warranty card

Technical parameters

• Product ID: 83199
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555019215
• package size (L × W × D): 15×15×10 cm
• shipment weight: 0.6 kg
• sensor: SONY Exmor CMOS
• type: colorful
• resolution: 2448×2048 px
• megapixels: 5
• matrix size: 2/3" (8.45×7.07 mm)
• pixel size: 3.45×3.45 µm
• Light sensitivity: 1146 mV at 1/30 s
• Signal to noise ratio: 0.15 mV at 1/30 s
• exposure time: 0.1 ms – 15 s
• frames per second: 35 (2448×2048), 50 (1224×1024)
• mounting location: trinocular head tube, eyepiece tube
• image formats: *.jpg, *.bmp, *.png, *.tif
• video formats: *.wmv, *.avi, *.h264, *.h265
• shutter type: ERS (electronic)
• white balance: manual, automatic
• exposure time: manual, automatic
• programmable parameters: image size, brightness, exposure time
• output: USB 3.0
• software: MAGUS View
• mounting type: type C
• body: durable aluminum
• power supply: 5 V from USB port
• operating temperature range: –10...+50°C
• operating humidity range: 30–80%

The CBF90 is designed for demanding microscopy tasks, combining high image quality with the functionality necessary for research and teaching.
