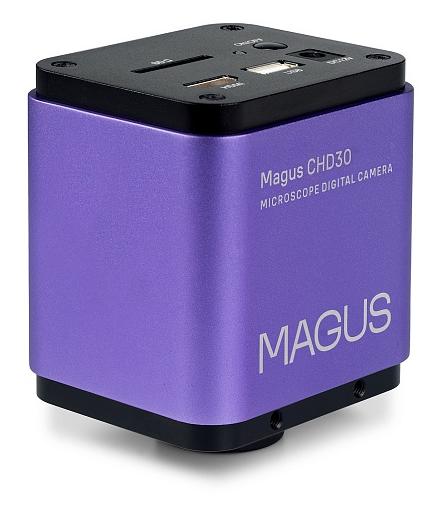

MAGUS CHD30 is a camera designed for use with a microscope. It allows you to take pictures and record videos of the observed object, edit the image and take measurements. The camera can work autonomously or be connected to a computer via Wi-Fi and to an external screen via HDMI. The image display speed is 60 fps (HDMI) or 25 fps (Wi-Fi). After connecting to the screen, the camera automatically focuses on the object, which makes photography easier and provides high image quality Full HD (1920x1080 pixels).
The device is equipped with a color CMOS sensor from SONY with a size of 1/1.9" and pixels of 3.75×3.75 µm. The backlight technology provides high light sensitivity (1120 mV at 1/30 s), thanks to which the camera works effectively even in low light conditions. In order to obtain a wide field of view without distortions, it is recommended to use an adapter with a magnification of 0.5× to 0.75×.
Built-in software allows you to operate the camera without the need for a computer. It allows you to take pictures, record videos, edit images and perform linear and angular measurements after calibration. You can connect the camera to a computer via Wi-Fi.
The camera can be installed in the trinocular head tube or in the eyepiece tube instead of the eyepiece. In both cases, an adapter with a C-mount is required. In the case of mounting in the eyepiece tube, an additional adapter ring is necessary.
The camera works with additional accessories, such as a USB mouse or SD card. It is also compatible with special MAGUS monitors, which can be installed directly on the device, creating a full visualization system.
• possibility of autonomous operation and connection to a computer or screen
• built-in image editing and measurement software
• Full HD resolution 1920x1080 pixels
• number of frames per second: 60 (HDMI), 25 (Wi-Fi)
• autofocus when connected to an external screen
• compatibility with USB mouse, SD card and MAGUS monitors

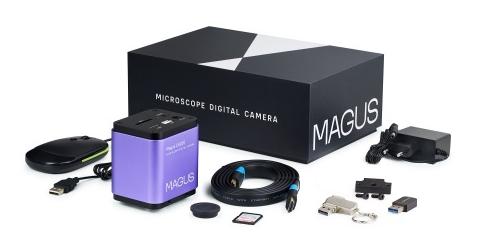

• digital camera
• HDMI cable (1.5m)
• USB mouse
• 32GB SD memory card
• USB Wi-Fi adapter
• 12V/1A mains adapter (Euro)
• installation CD with drivers and software
• user manual and warranty card
• Product ID: 83193
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555019154
• package size: 25x17x9 cm
• shipment weight: 1.5 kg
• sensor: SONY CMOS
• color/monochrome: color
• megapixels: 2
• maximum resolution: 1920x1080
• matrix size: 1/1.9" (7.20x4.05 mm)
• pixel size: 3.75x3.75 µm

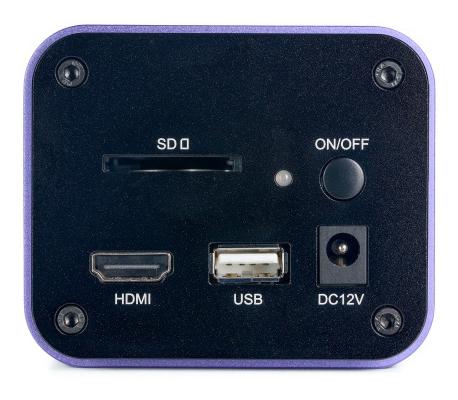

• interface connectors: Wi-Fi, HDMI 1.4
• memory card: SD up to 32 GB
• possibility of connecting additional devices: computer mouse (USB), Wi-Fi adapter (USB)
• Wi-Fi settings: 802.11n, 150 Mbps, 20 dBm
• Photosensitivity: 1120 mV with 1/30 s
• Signal to noise ratio: 0.15 mV at 1/30 s
• exposure time: 0.06 ms – 918 ms
• video recording: ✓
• Frame Rate: 60 @ 1920x1080 (HDMI), 25 @ 1920x1080 (Wi-Fi)
• mounting location: trinocular head tube, eyepiece tube instead of eyepiece
• image format: *.jpg
• video file format: *.asf
• spectral range: 380–650 nm (built-in infrared filter)
• shutter type: ERS (electronic shutter)
• system requirements: Windows 8/10/11 (32- and 64-bit), Mac OS X, Linux, Intel Core 2 2.8 GHz processor or newer, at least 4 GB RAM, USB 2.0 port, CD-ROM drive, 19” monitor or larger
• software: HDMI – built-in; USB – MAGUS View

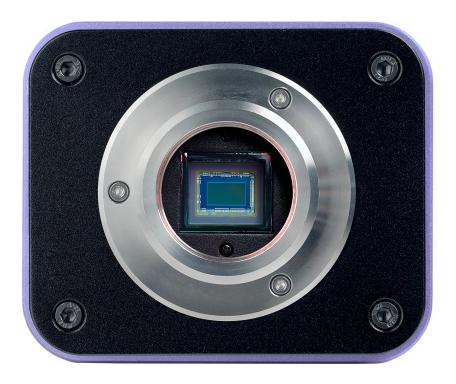

• mounting type: C-mount
• body: CNC aluminum alloy
• power supply: DC 12 V, 1 A power supply
• temperature range: -10...+50°C
• operating humidity range: 30–80%
