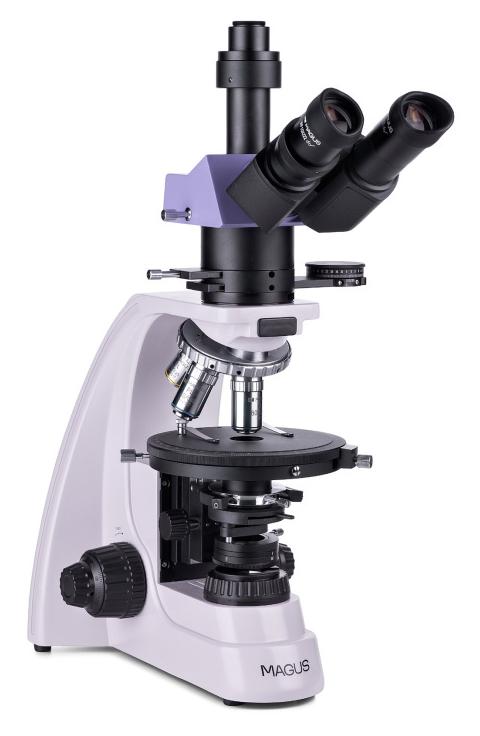

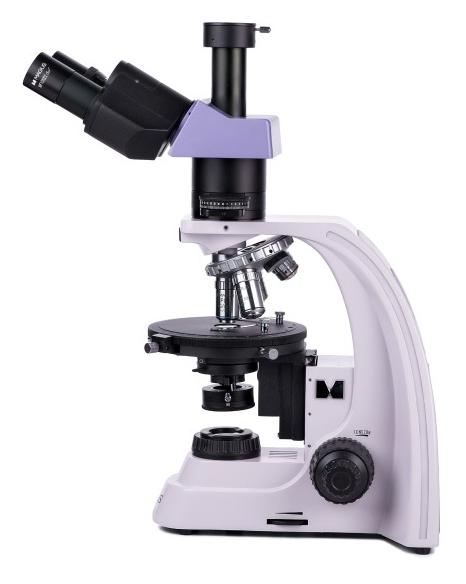

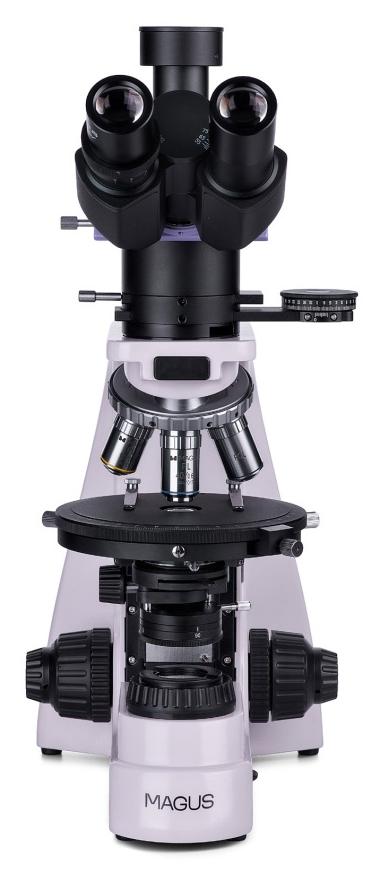

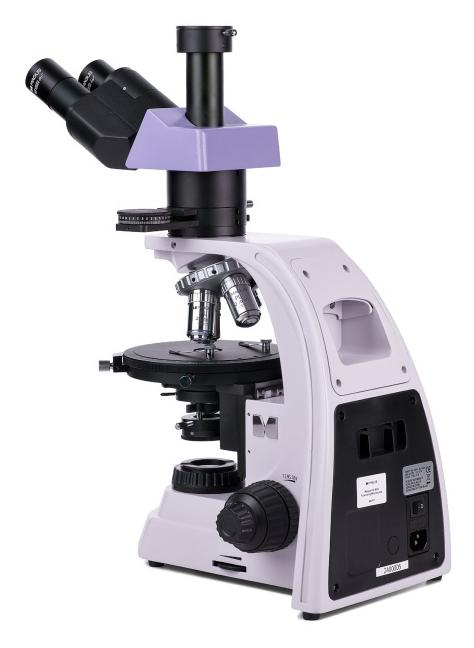

The MAGUS Pol D800 LCD polarizing microscope is an advanced biological microscope designed for research in transmitted and polarized light. Thanks to the stress-free optical system (Strain-Free), it provides realistic images without optical distortion. Equipped with planar-achromatic objectives with infinity correction and halogen illumination in accordance with the Köhler method, it is perfect for mineralogy, biology, medicine or forensics.

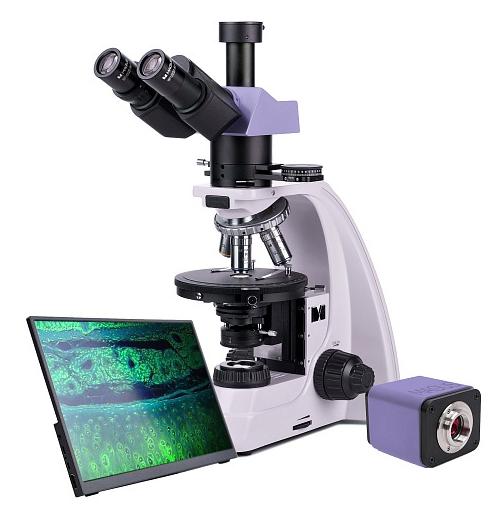

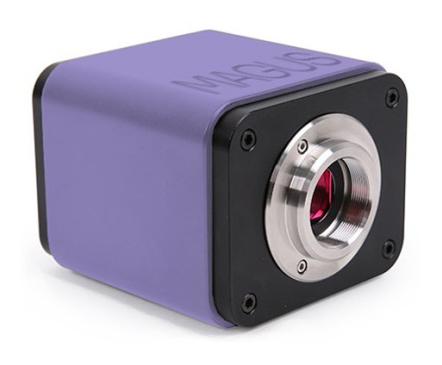

The set includes a MAGUS CHD40 digital camera with an 8 MP matrix and automatic resolution switching (4K/Full HD) and a MAGUS MCD40 monitor with an IPS matrix and a 13.3" diagonal. The camera can operate independently (HDMI) or with a computer (USB/Wi-Fi), offering smooth video recording at 30 fps. The monitor allows comfortable work thanks to high contrast and wide viewing angles.
• observations in transmitted light using the bright field method and polarization methods
• The light source is a 30 W halogen bulb with a "warm" light spectrum that is comfortable for the eyes
• polarization is obtained using a rotating analyzer and polarizer; the attachment includes a Bertrand lens and sockets for compensators
• it is possible to adjust the lighting according to the Köhler method, which improves the clarity of the image
• the third tube allows for mounting a digital camera
• Strain-Free, infinity-corrected plan achromatic objectives; centered turret sockets

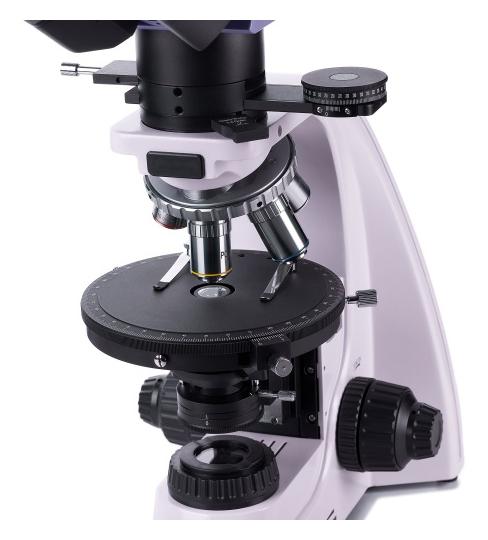

• rotary table, coarse and fine focus adjustment mechanism
• compatibility with additional accessories: glasses, lenses, etc.
• MAGUS CHD40 digital camera (digital camera, HDMI cable (1.5 m), USB 3.0 cable (1.5 m), USB mouse, 32 GB SD memory card, USB Wi-Fi adapter (2 pcs.), 12 V/1 A (Euro) mains adapter, installation CD, user manual and warranty card)

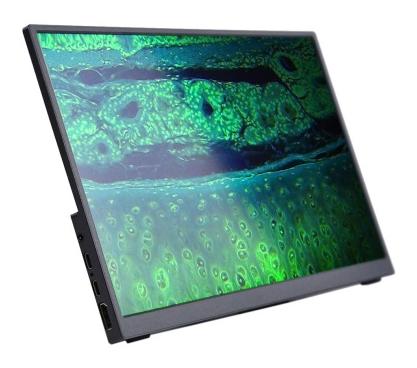

• MAGUS MCD40 LCD monitor

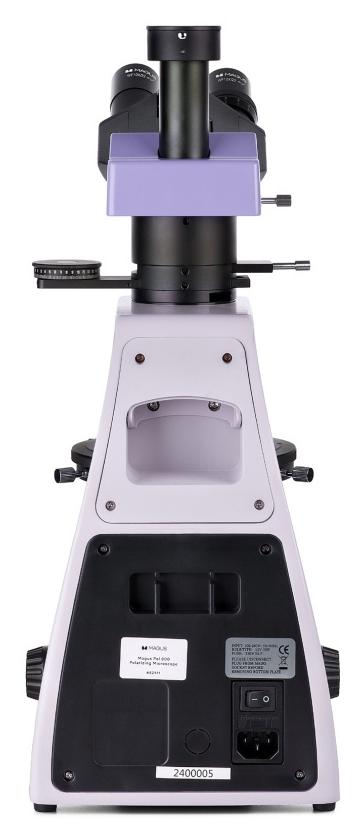

• base with power socket, transmitted light source and condenser, focus adjustment mechanism, table and revolving bowl
• trinocular head
• intermediate tube with Bertrand lens, analyzer and compensator socket
• compensators: λ compensator, λ/4 compensator, quartz wedge
• plan achromatic objectives: PL 4x/0.10 WD 21 mm, PL 10x/0.25 WD 5.0 mm, PL 40x/0.65 WD 0.66 mm, PL 60x/0.80 WD 0.46 mm
• eyepieces 10x/22 mm (2 pcs.)
• 10x/22 mm eyepiece with scale (scale value: 0.1 mm)
• C-mount adapter, 1x
• Allen key
• power cord
• dust cover
• user manual and warranty card
• Product ID: 83041
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018522
• Package size (L × W × D): 43×27×63 cm
• shipment weight: 17.25 kg
• type: biological, light/optical, digital
• type of microscope head: trinocular, digital display/PC monitor
• head: Siedentopf
• head tilt angle: 30°
• magnification: 40–600x
• Diameter of the eyepiece tube: 30 mm
• eyepieces: 10x/22 mm, 10x/22 mm with scale
• lenses: PL 4x/0.10 WD 21 mm, PL 10x/0.25 WD 5.0 mm, PL 40x/0.65 WD 0.66 mm, PL 60x/0.80 WD 0.46 mm
• revolver: 5 sockets, centering option
• pupil distance: 48–75 mm

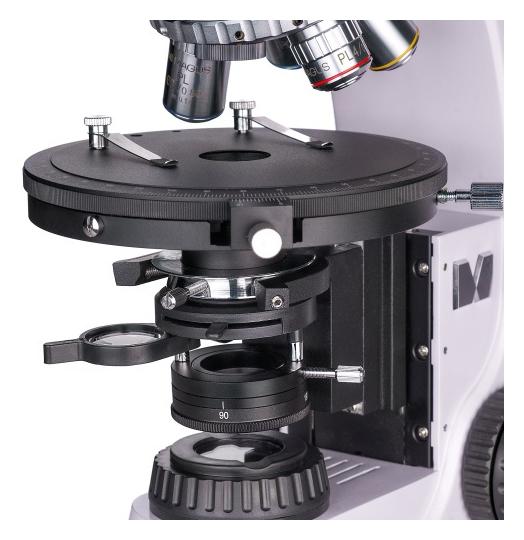

• table: Ø150 mm, rotatable 360°, with 1° graduation and vernier scale
• diopter adjustment: ±5 (in left tube)
• condenser: Abbe NA 1.25
• diaphragm: aperture and field iris diaphragm
• focus adjustment: coarse (21 mm, 39.8 mm/turn) and fine (0.002 mm), with lock and tension adjustment
• lighting: halogen 12 V/30 W
• brightness adjustment: ✓
• power supply: 220±22 V, 50 Hz
• temperature range: 5...+35°C
• level of advancement: experienced users, professionals
• assembly difficulty: complicated
• polarizer: with markings, rotation 0-360°
• intermediate tube: analyzer, Bertrand lens, compensator socket
• compensator: λ, λ/4, quartz wedge
• use: clinical/laboratory
• light source location: bottom
• test method: bright field, polarization
• cover: dust cover
