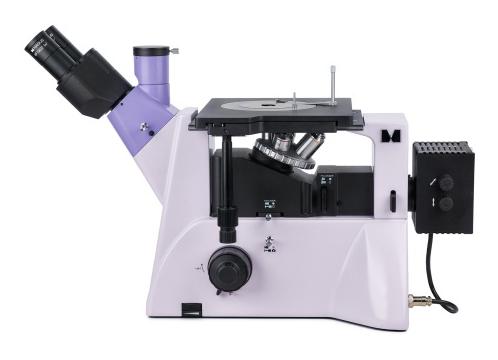

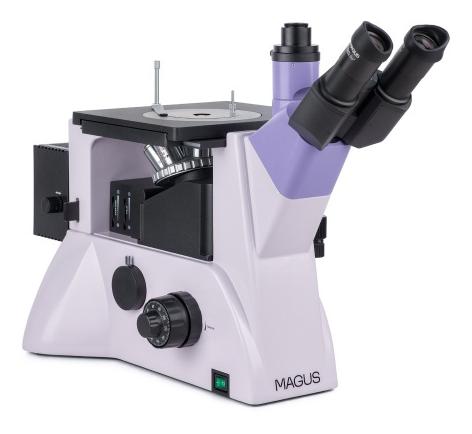

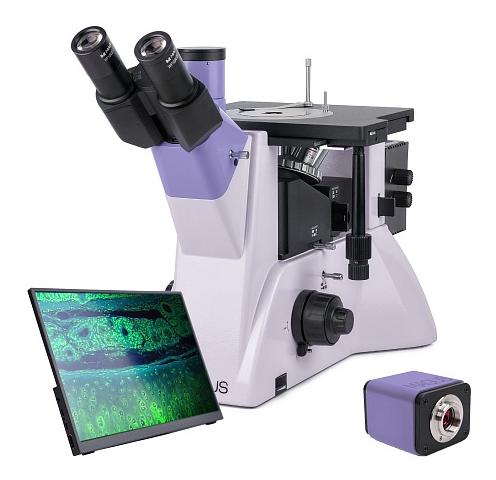

MAGUS Metal VD700 LCD (SKU: 83037) is an inverted metallurgical microscope with a digital Full HD camera and a 13-inch LCD monitor. Thanks to reflected illumination and a set of plan achromatic objectives, the microscope enables precise examination of opaque materials using the bright field method and polarized light. A large stage, a lateral camera socket, a third tube with a beam splitter and image optimization functions make the set perfect for quality control, materials research and industrial environments.

Key Features

• examination of large and heavy preparations using bright field and polarization methods
• large table and replaceable, rotating plates with holes Ø10 mm, Ø20 mm and Ø30 mm

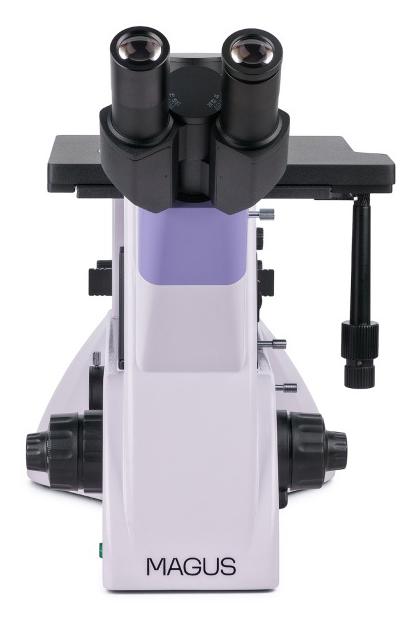

• trinocular head with 180° rotation option
• camera and monitor assembly: side socket in the body (100:0/0:100) and third tube in the head (50:50 and 100)

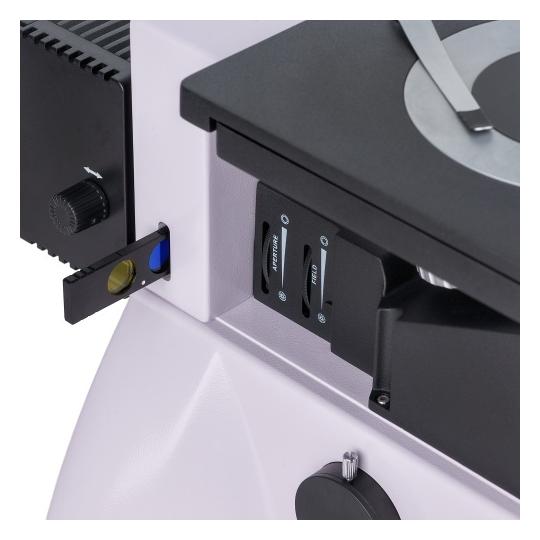

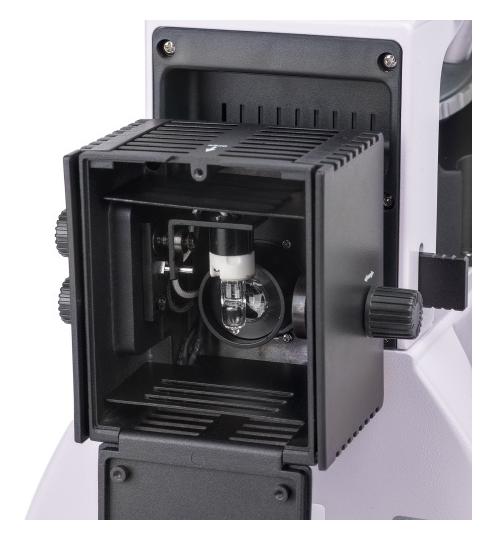

• 30 W halogen reflected light with brightness control, Köhler setting, colour filters

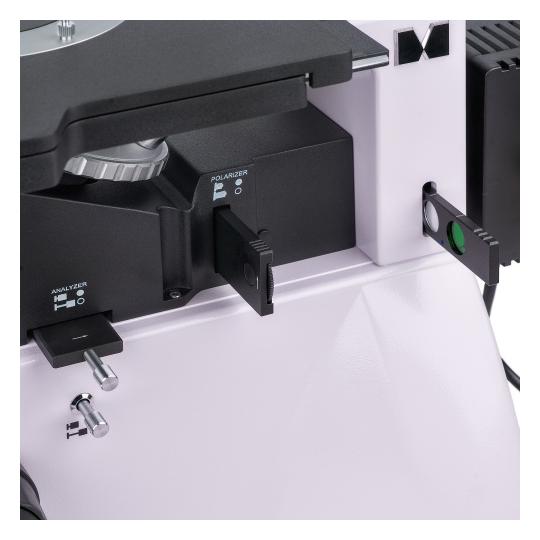

• removable analyzer and polarizer
• wide selection of additional accessories: glasses, lenses, cameras, calibration preparations

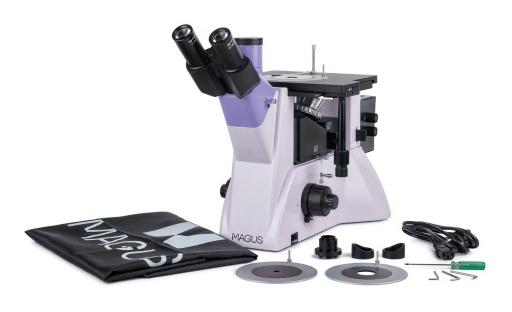

Set components

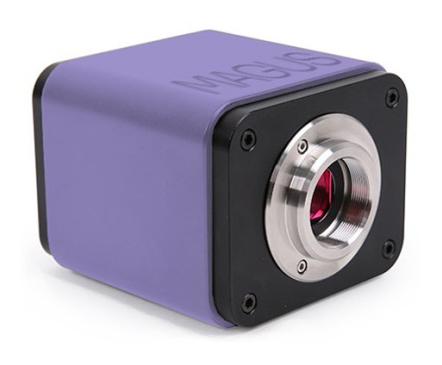

• MAGUS CHD20 digital camera (camera, 1.5 m HDMI cable, 2 m USB 2.0 cable, USB mouse, 32 GB SD card, 12 V/1 A power supply, CD, manual and warranty card)

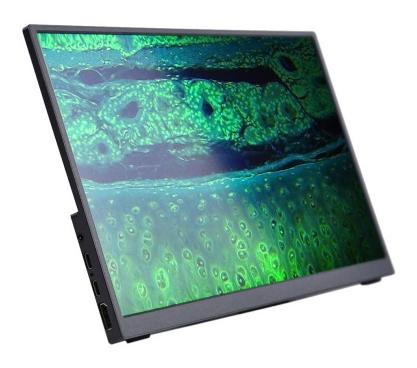

• LCD monitor MAGUS MCD20
• base with power socket, focus adjustment mechanism, table and revolver bowl
• Reflected light illuminator with lamp cover
• trinocular head

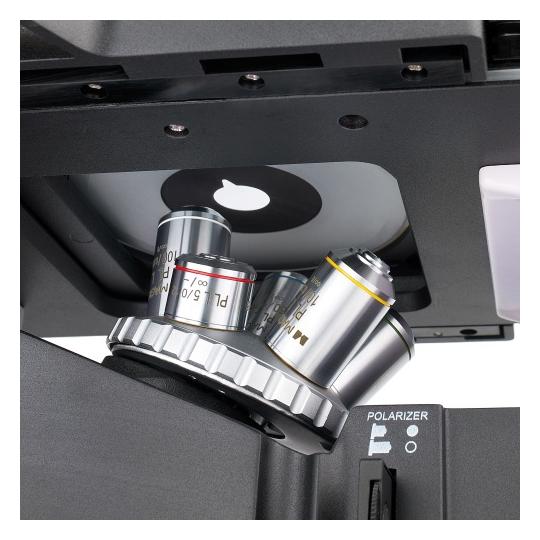

• lenses: PL L5x/0.12 WD 26.1 mm, PL L10x/0.25 WD 20.2 mm, PL L20x/0.40 WD 8.80 mm, PL L50x/0.70 WD 3.68 mm, PL L100x/0.85 WD 0.40 mm

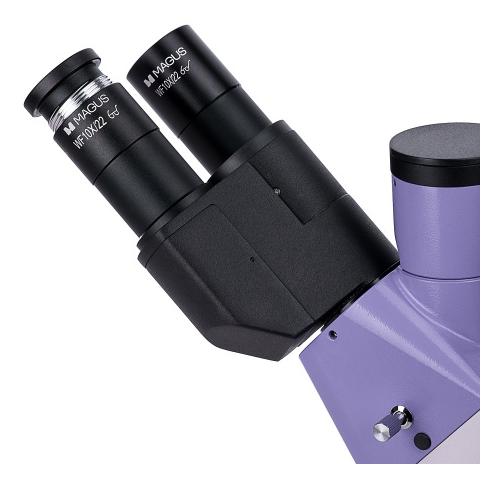

• eyepieces 10x/22 mm (2 pcs.)
• C-mount adapter
• Allen key
• power cord
• dust cover
• user manual and warranty card

Technical parameters

• Product ID: 83037
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018461
• Package size (L x W x D): 49 x 34 x 68 cm
• shipment weight: 19.25 kg
• type: light/optical, digital, metallurgical
• type of microscope head: trinocular, digital display/PC monitor
• head: Siedentopf, rotatable 180°
• head angle: 45°
• magnification: 50–1000x
• magnification (optional): 50–1250/1500/2000/2500x
• Diameter of the eyepiece tube: 30 mm
• eyepieces: 10x/22 mm (*optional: with scale, 12.5x/14 mm, 15x/15 mm, 20x/12 mm, 25x/9 mm)
• lenses: PL L5x, PL L10x, PL L20x, PL L50x, PL L100x (*optional: PL L40x, L60x, L80x)
• revolver: 5 sockets
• working distance: 26.1 mm (5x), 20.2 mm (10x), 8.80 mm (20x), 3.68 mm (50x), 0.40 mm (100x), 3.98 mm (40x), 2.08 mm (60x), 1.25 mm (80x)
• pupil distance: 48–75 mm

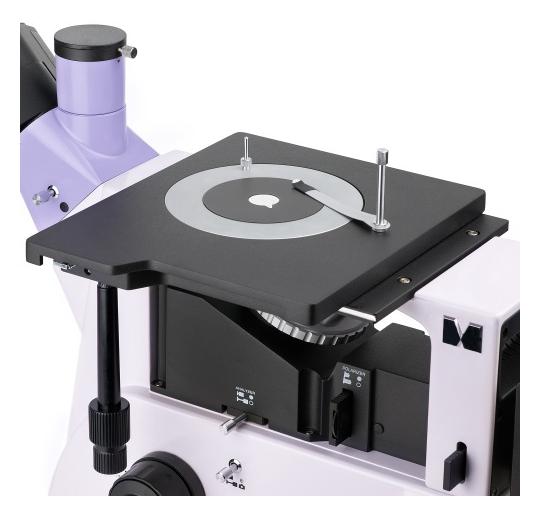

• table: 242×200 mm, round plate Ø130 mm with holes 10/20/30 mm
• focus adjustment: coaxial, coarse with tension adjustment and lock, fine (0.002 mm)
• lighting: halogen 12 V/30 W
• filters: green, blue, yellow, matte
• Light source: reflected, bottom
• additional functions: removable analyzer and polarizer
• power supply: 220±22 V, 50 Hz
• level of advancement: experienced users, professionals
• assembly difficulty: complicated
• application: metallurgical
• cover: dust cover
