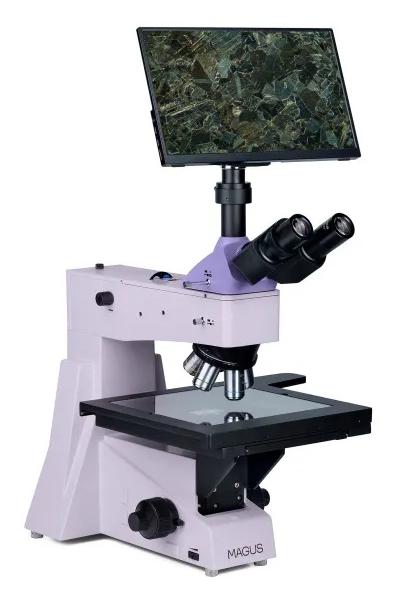

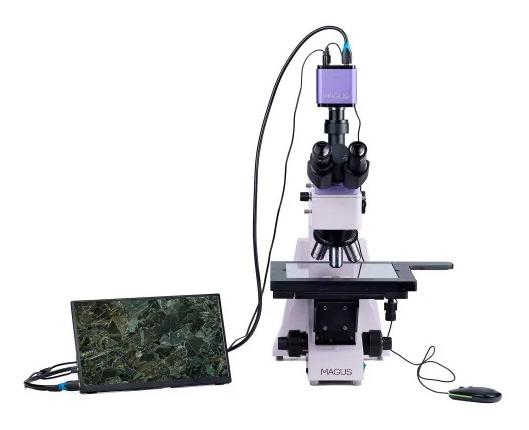

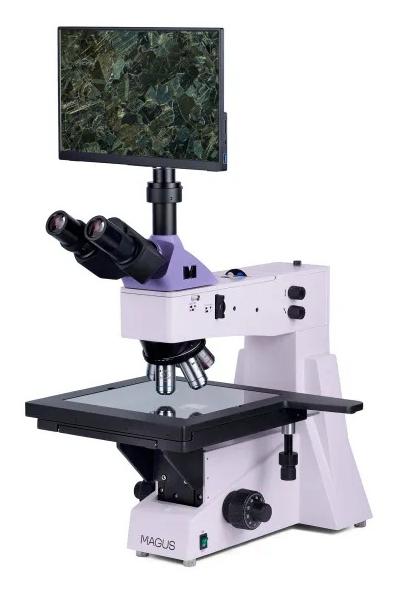

MAGUS Metal D650 BD LCD (SKU: 83035) is a metallurgical microscope with a trinocular head, five BD objectives for bright and dark field and advanced reflected illumination with polarization function. Thanks to a large stage, precise focus adjustment (0.7 µm scale) and a 4K digital camera, the set is perfect for research of photomasks, PCBs, semiconductor structures and quality control in industrial laboratories and academic units.

Key Features

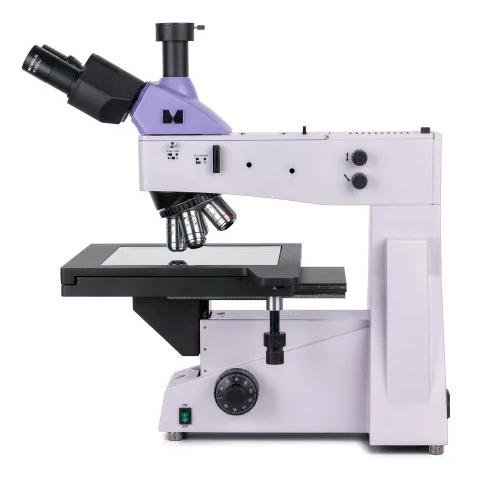

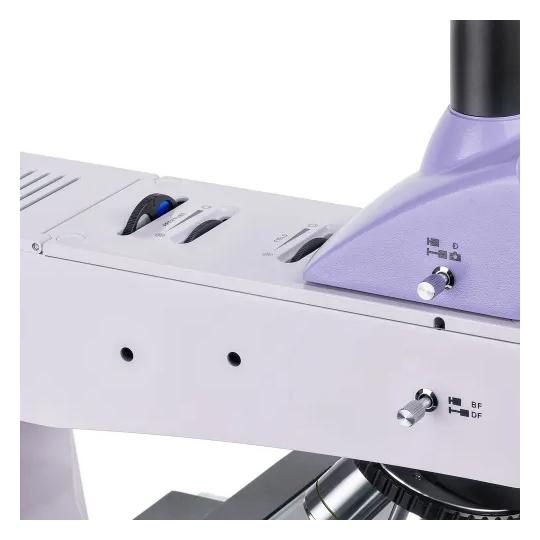

• bright field, dark field and polarization microscope
• five BD lenses for advanced metallographic observations

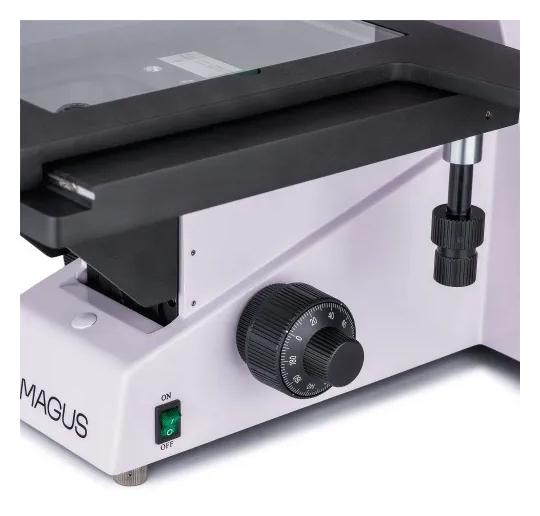

• precise focus adjustment – 0.7 µm scale, tension adjustment and lock

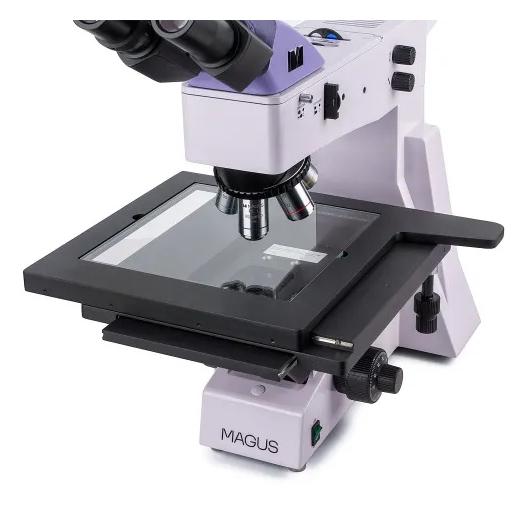

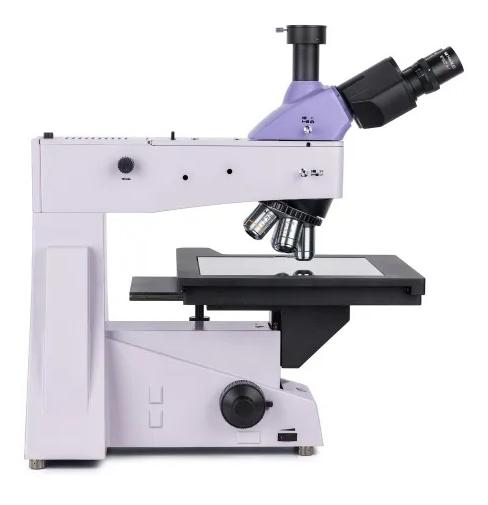

• large table 280x270 mm, movement range 204 mm in both axes

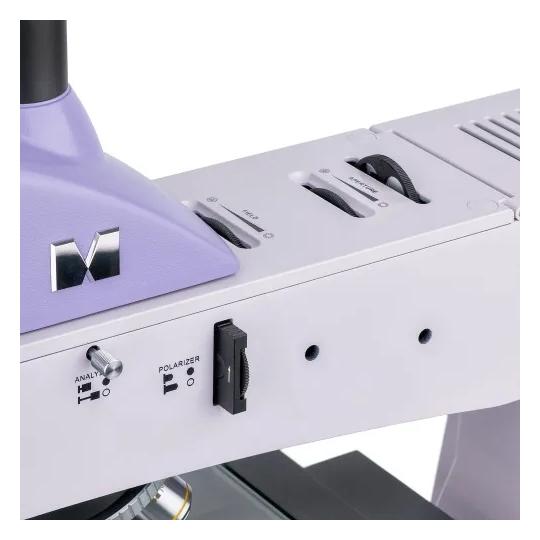

• Köhler lighting, 50 W halogen, color filters, analyzer and polarizer
• third camera tube, 100:0 and 0:100 light-splitting cube

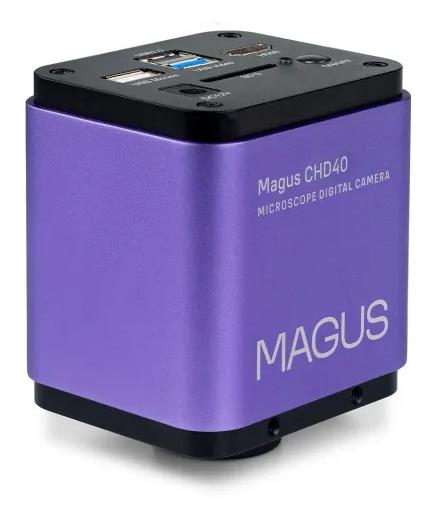

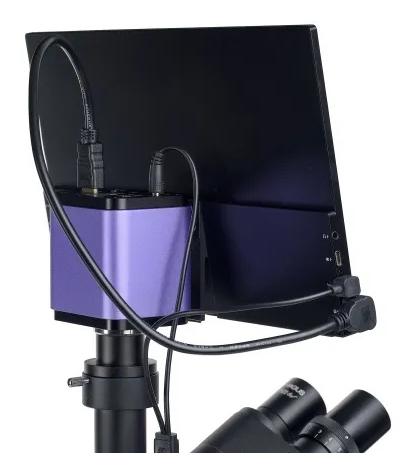

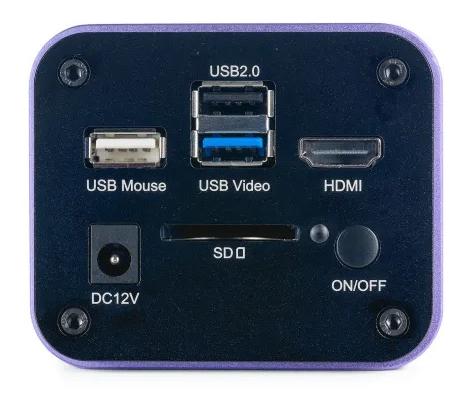

• MAGUS CHD40 camera: 4K/Full HD, HDMI, USB 3.0, Wi-Fi, SONY Starvis matrix

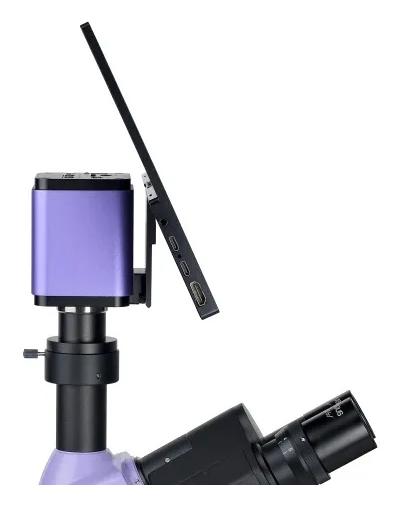

• MAGUS MCD40 monitor with IPS matrix and 4K resolution

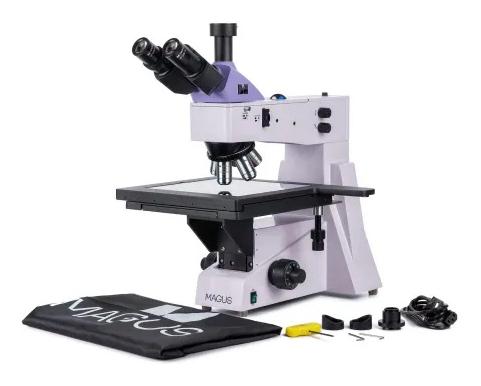

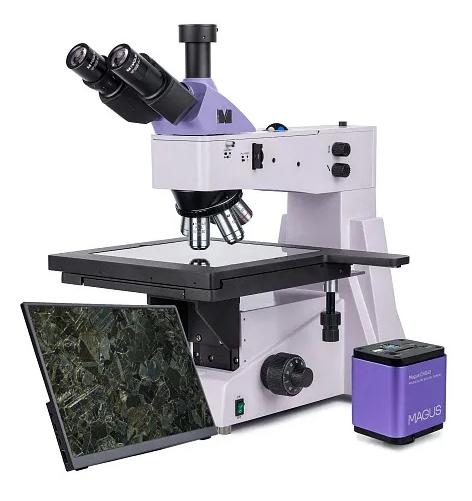

Set components

• MAGUS CHD40 digital camera (camera, HDMI 1.5 m, USB 3.0 1.5 m, USB mouse, 32 GB SD card, 2× USB Wi-Fi adapter, 12 V/1 A power supply, CD, manual, warranty card)
• MAGUS MCD40 LCD monitor
• trinocular head

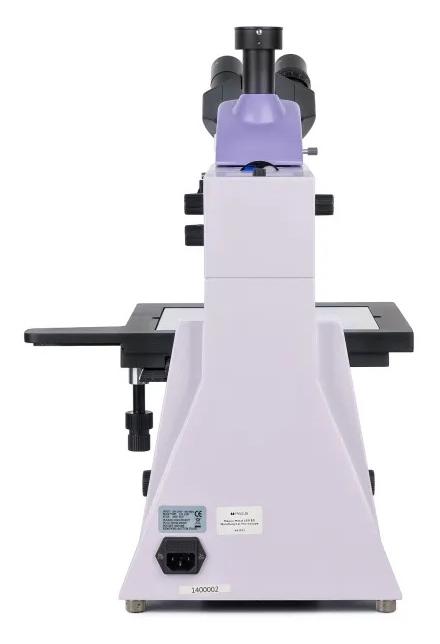

• base with power socket, reflected illuminator, focus adjustment mechanism, table and revolver bowl

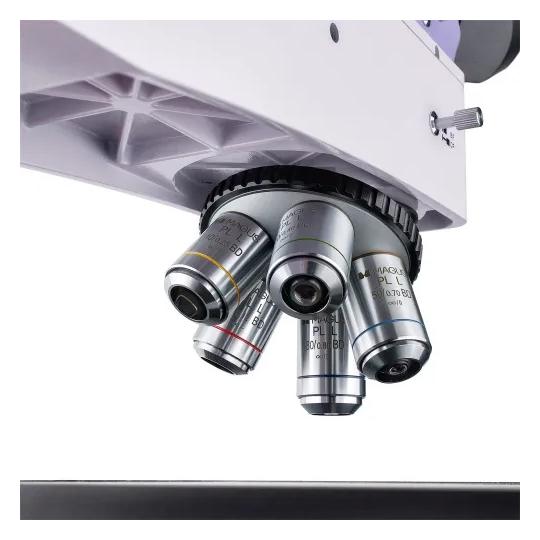

• BD lenses: PL L5x/0.12 WD 9.7 mm, PL L10x/0.25 WD 9.3 mm, PL L20x/0.40 WD 7.2 mm, PL L50x/0.70 WD 2.5 mm, PL L80x/0.80 WD 0.8 mm

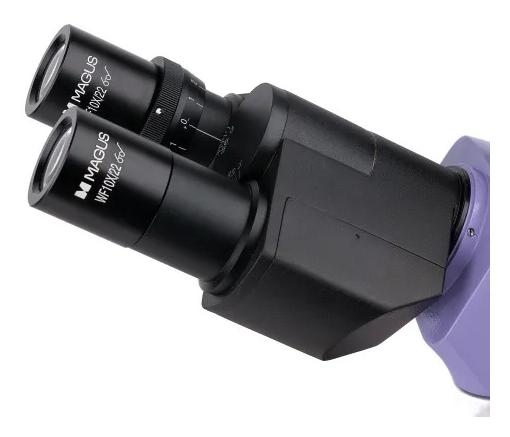

• eyepieces 10x/22 mm (2 pcs.)
• Type-C adapter
• Allen key
• power cord
• dust cover
• user manual and warranty card

Technical parameters

• Product ID: 83035
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018430
• Package size (L x W x D): 58 x 49 x 60 cm
• shipment weight: 23.75 kg
• type: light/optical, metallurgical
• type of microscope head: trinocular, digital display/PC monitor
• head: Siedentopf
• head tilt angle: 30°
• magnification: 50–800x
• magnification (optional): 50–1000/1250/1500/2000/2500x
• Diameter of the eyepiece tube: 30 mm
• eyepieces: 10x/22 mm (*optional: with scale, 12.5x/14 mm, 15x/15 mm, 20x/12 mm, 25x/9 mm)
• BD lenses: PL L5x, PL L10x, PL L20x, PL L50x, PL L80x (*optional: PL L40x, L60x, L100x)
• revolver: 5 sockets
• working distance: 9.7 mm (5x), 9.3 mm (10x), 7.2 mm (20x), 2.5 mm (50x), 0.8 mm (80x), 3.0 mm (40x), 1.9 mm (60x), 0.4 mm (100x)
• pupil distance: 48–75 mm
• table: 280×270 mm
• table movement range: 204 mm (X/Y)
• focus adjustment: coarse (30 mm, 13.1 mm/turn, lock and tension adjustment), fine (0.0007 mm)
• diopter: ±5 (left eyepiece)
• lighting: halogen 12 V/50 W
• filters: green, blue, yellow, matte
• Light source: reflected, top
• additional functions: analyzer and polarizer, dark field
• power supply: 220±22 V, 50 Hz
• level of advancement: experienced users, professionals
• assembly difficulty: complicated
• application: metallurgical
• cover: dust cover
