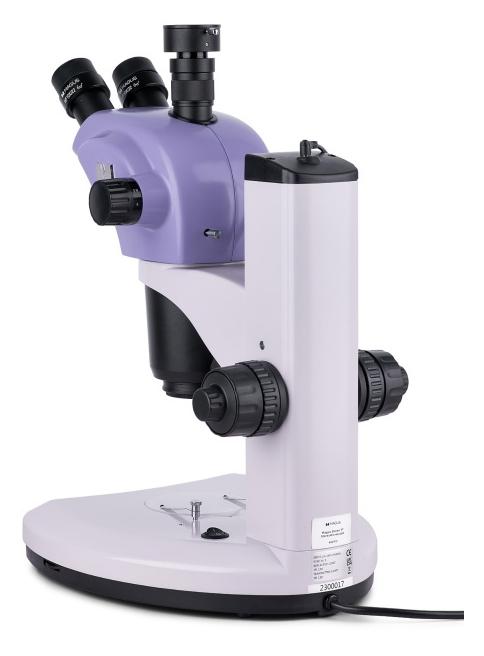

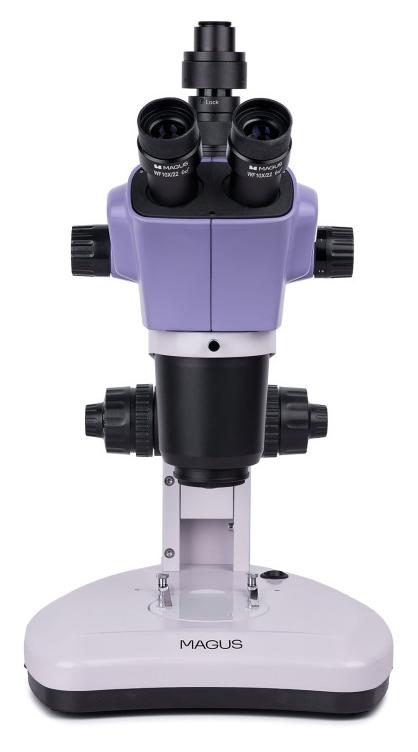

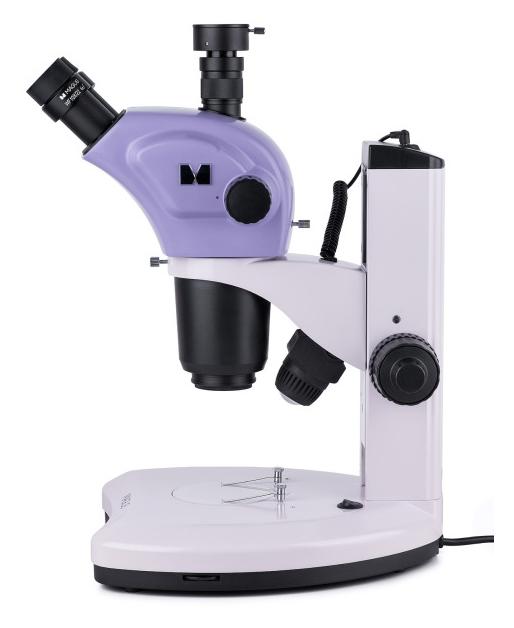

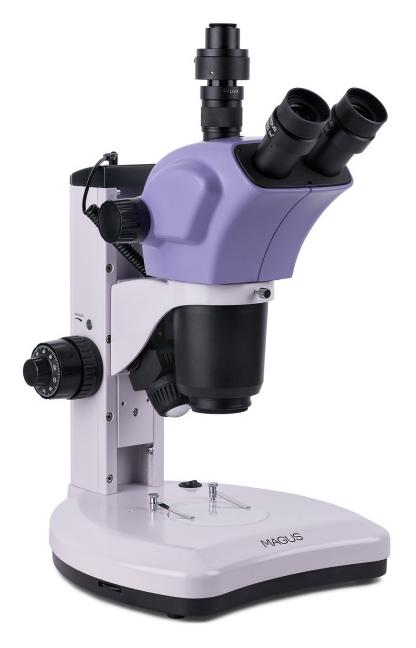

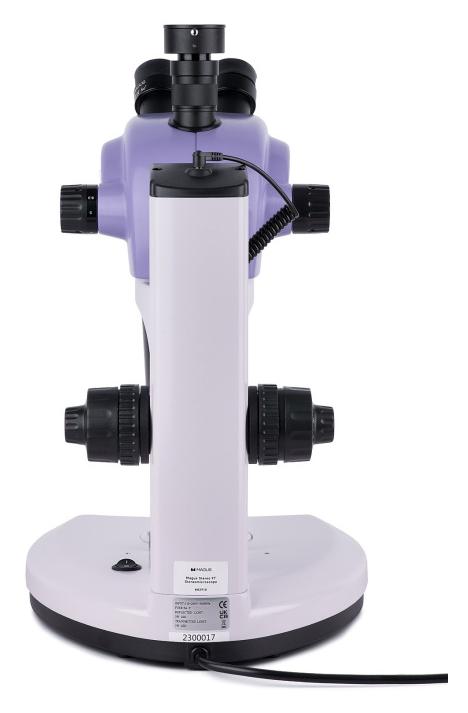

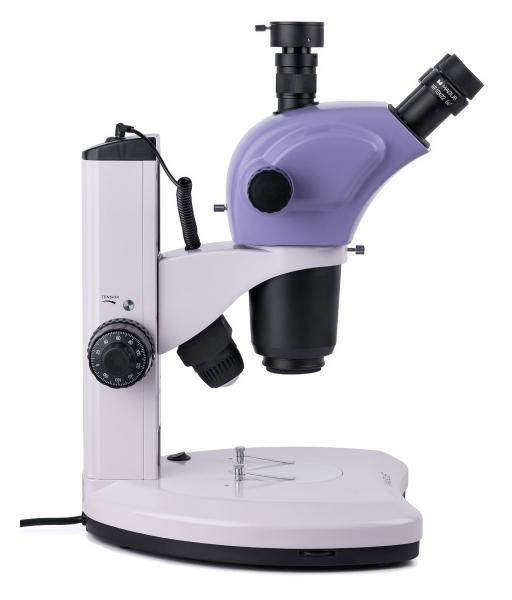

MAGUS Stereo D9T (SKU: 83044) is a stereoscopic digital microscope with a trinocular head, Greenough optical system and 18 MP camera. Thanks to its long working distance and three-dimensional image, it is suitable for quality control, repair, renovation as well as for research and education tasks. The MAGUS CBF10 camera records images in high resolution and a high frame rate. The microscope is equipped with transmitted and reflected illumination as well as coarse and fine focus adjustment.

Key Features

• stereoscopic optical microscope with 18 MP digital camera
• trinocular head with 360° rotation and camera mounting tube

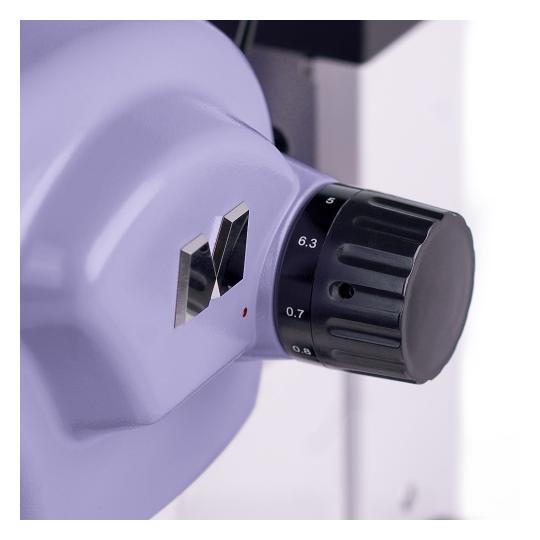

• Greenough optics, 0.7–6.3x zoom lens
• magnification range 7–63x, optionally 3.5–315x with additional lenses
• LED lighting: 5 W (transmitted) and 3 W (reflected, oblique)
• coaxial focus adjustment mechanism, fine adjustment 0.002 mm
• interchangeable plates: black and white, white, transparent
• camera with USB 3.0 interface, MAGUS View software
• possibility of expansion with glasses, lenses, polarizing devices

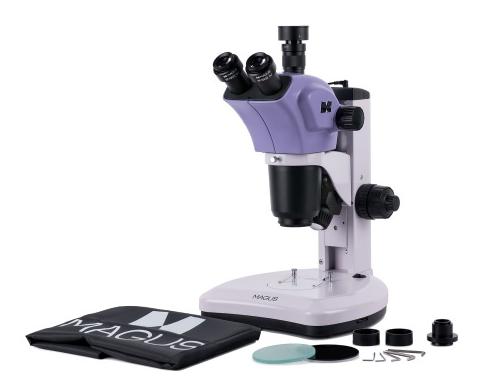

Set components

• MAGUS CBF10 camera (camera, USB, CD, manual, warranty)

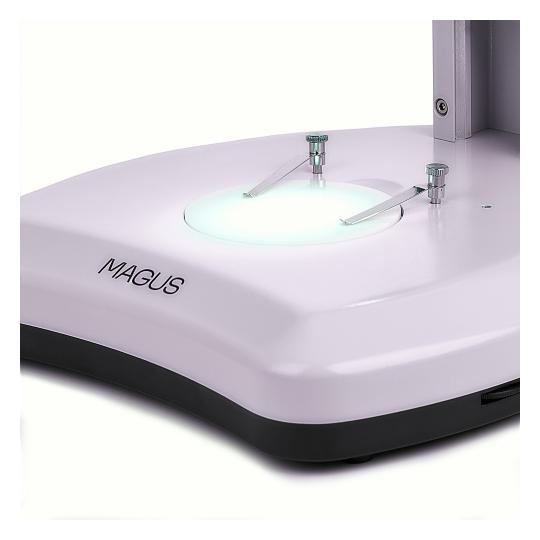

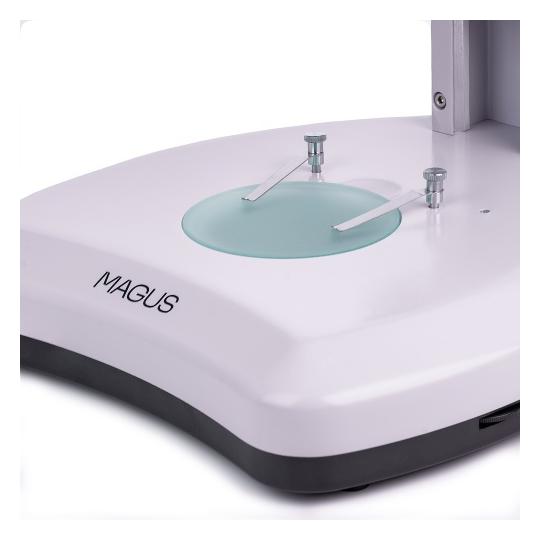

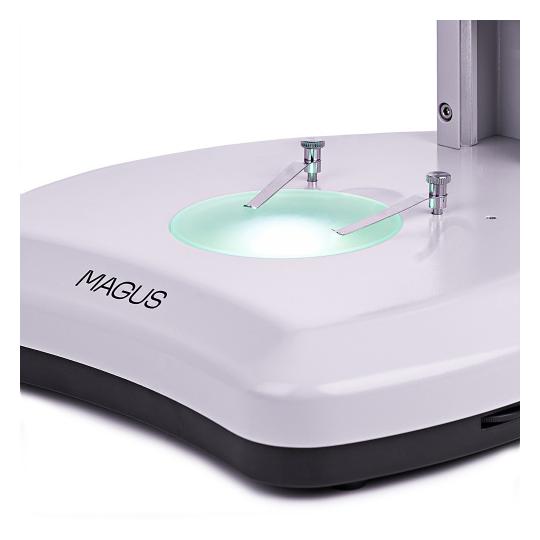

• base with transmitted light and power socket
• tripod with focus adjustment mechanism
• trinocular head

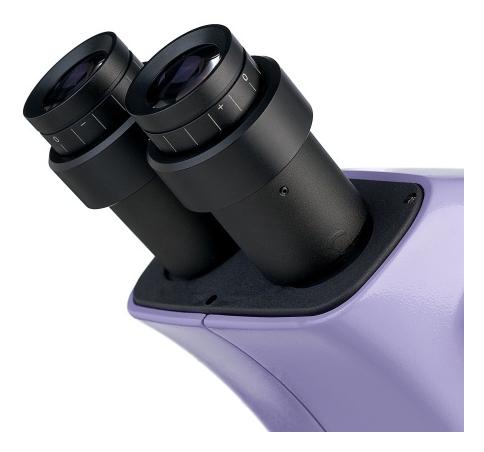

• eyepieces 10x/22 mm (2 pcs.)

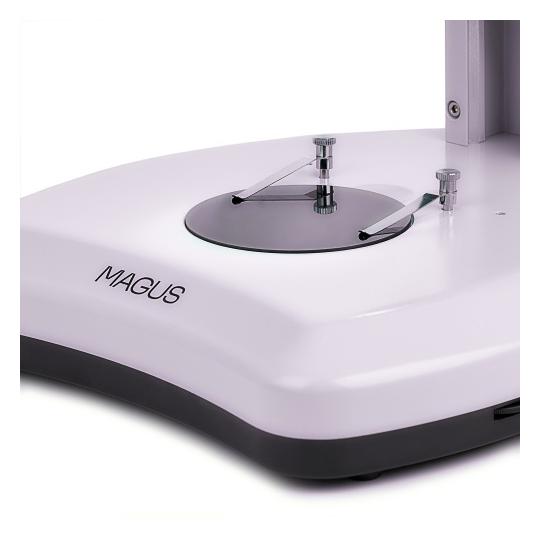

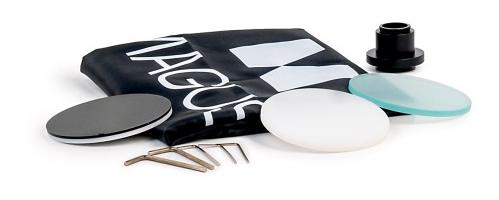

• black and white, white and transparent table plate

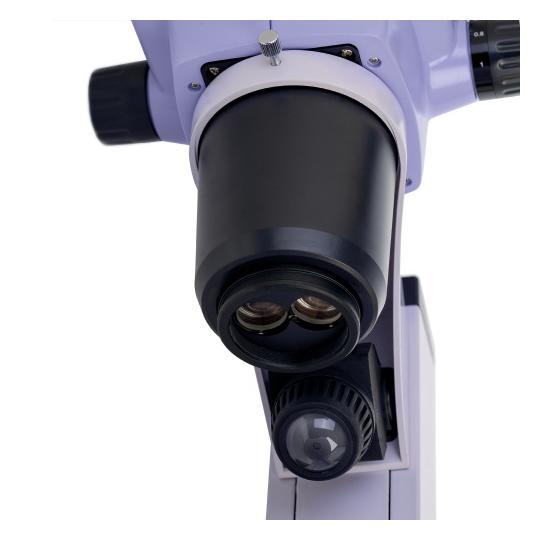

• oblique reflected light illuminator
• C-mount adapter
• power cord
• dust cover
• user manual and warranty card

Technical parameters

• Product ID: 83044
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018577
• package size: 44×42×67 cm
• shipment weight: 12.1 kg
• type: stereoscopic, digital, optical
• head: trinocular, 360° rotatable, 45° angle
• magnification: 7–63x (optional 3.5–315x)
• eyepieces: 10x/22 mm (optional: 15x, 16x, 20x, 25x)
• Lens: 0.7–6.3x, with additional options of 0.5x and 2x
• working distance: 110 mm (with 0.5x: 188 mm; with 2x: 40.4 mm)
• Field of view: 31.43–3.49 mm (with 0.5x: 62.85–6.98 mm; with 2x: 15.71–1.745 mm)
• pupil distance: 53–75 mm
• table: Ø90 mm, shallow white, black and white, transparent
• diopter adjustment: ±5D
• focus: coaxial, coarse 83 mm, fine 0.002 mm
• lighting: LED 5 W (transmitted), 3 W (reflected)
• power supply: AC 220 V, 50 Hz
• application: applied research, quality control
• cover: dust cover
• weight: 8 kg
• dimensions: 280×463×335 mm

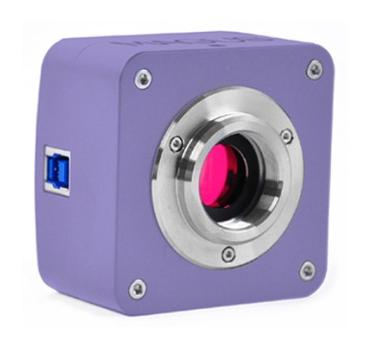

Camera parameters

• sensor: Aptina CMOS, 1/2.3", 18 MP
• resolution: 4912×3684 pixels
• pixel size: 1.25×1.25 µm
• Frame Rate: 13.1 fps (4912×3684), 34.3 fps (2456×1842), 54.4 fps (1228×922)
• Photosensitivity: 0.62 mV/lux/s
• SNR: 36.3 dB
• shutter type: electronic ERS
• software: MAGUS View
• interface: USB 3.0
• compatibility: Windows 8/10/11, Mac OS X, Linux
• image formats: *.jpg, *.bmp, *.png, *.tif
• video formats: *.wmv, *.avi, *.h264, *.h265
• assembly: type C
• power supply: from USB, optional 12 V/3 A
• body: aluminum
• operating temperature: -10...+50°C
• working humidity: 30–80%
