Inverted digital metallurgical microscope MAGUS Metal VD700 BD (SKU: 83038) Magus microscopes opinie

34669 zł price without VAT: 28186,18 zł Shop online: ● on request  Shop in Warsaw (qty): ● on request  Shop in Chorzow (qty): ● on request

CHEAP DELIVERY TO EUROPEAN COUNTRIES CHECK IT OUT!

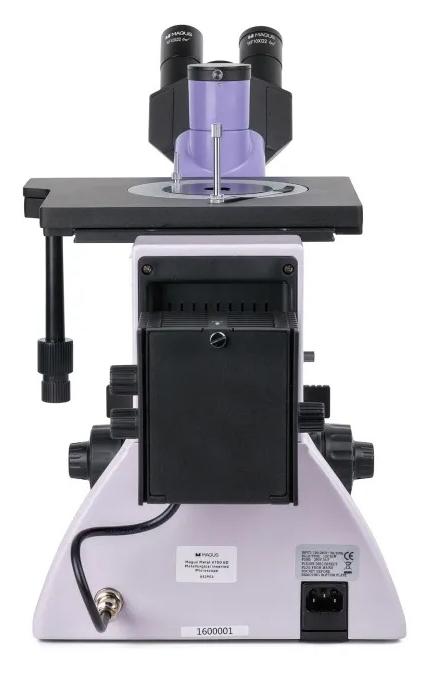

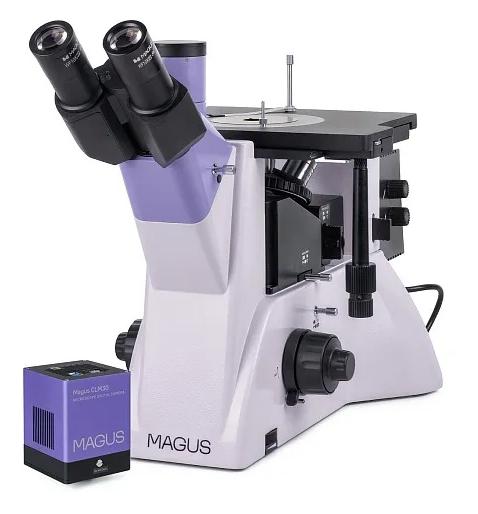

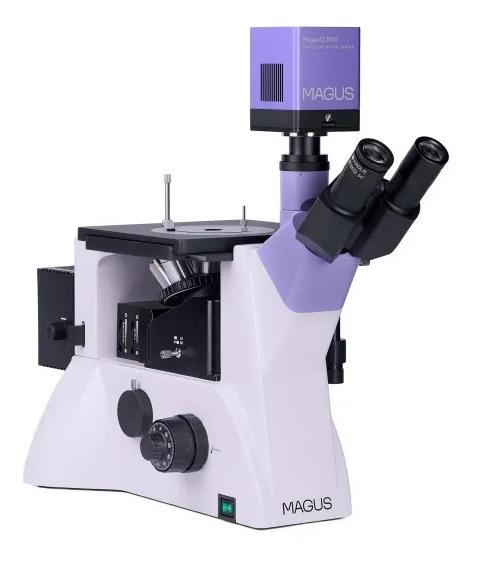

MAGUS Metal VD700 BD (SKU: 83038) is an inverted metallurgical microscope for observing opaque preparations in reflected light. It is equipped with a digital MAGUS CLM30 camera with a backlit SONY Exmor matrix, allows work in bright and dark field and in polarized light. It is used in industry, quality control laboratories and scientific and research institutions.

Key Features

• inverted optical system with a turret bowl under the table
• work in bright and dark fields and in polarized light

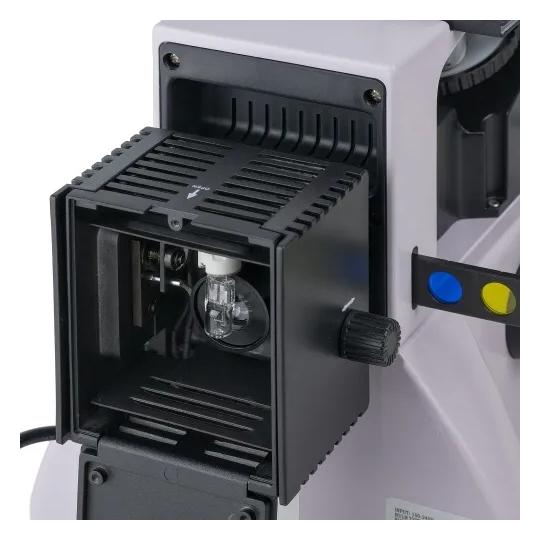

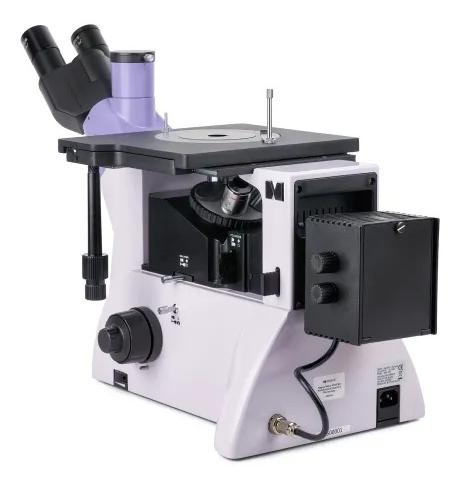

• 50 W halogen lighting with centering and Köhler regulation

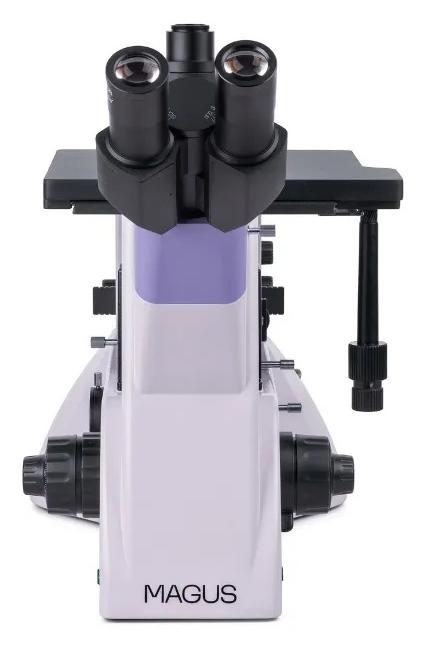

• Siedentopf head with a 45° angle, 180° rotation option, monitor and camera mounting

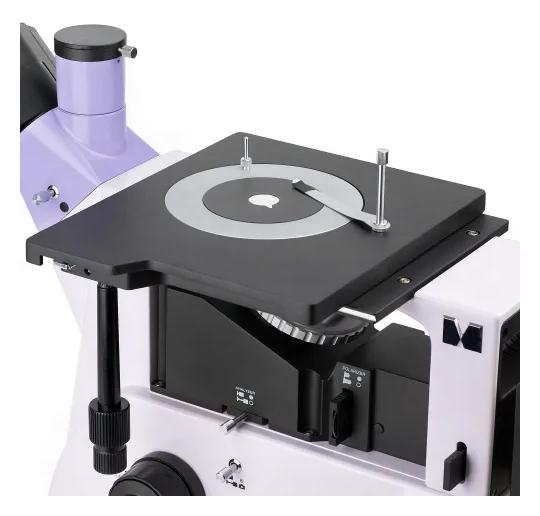

• table 242×200 mm with rotating plate Ø130 mm and holes Ø10, 20, 30 mm

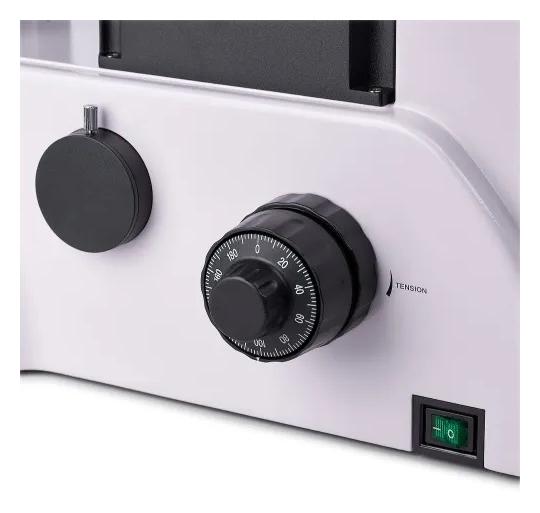

• focus adjustment: coarse with lock and tension, fine 0.002 mm
• 8.3 MP camera with SONY Exmor matrix, USB 3.0, 45/70 fps, Peltier

Set components

• microscope with base, reflective illuminator, revolver and tripod
• trinocular head

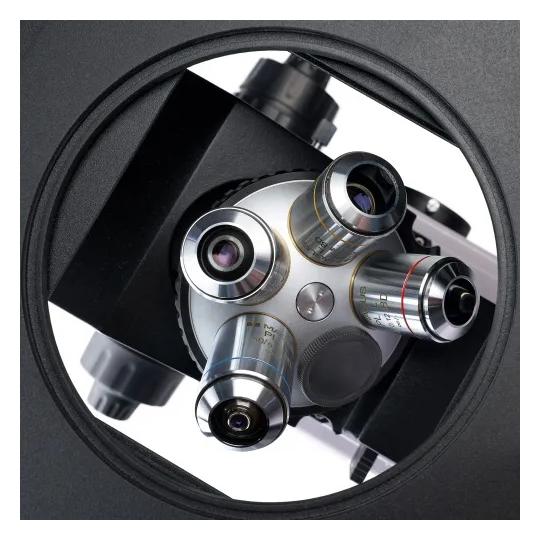

• PL L5x, 10x, 20x, 50x BD lenses

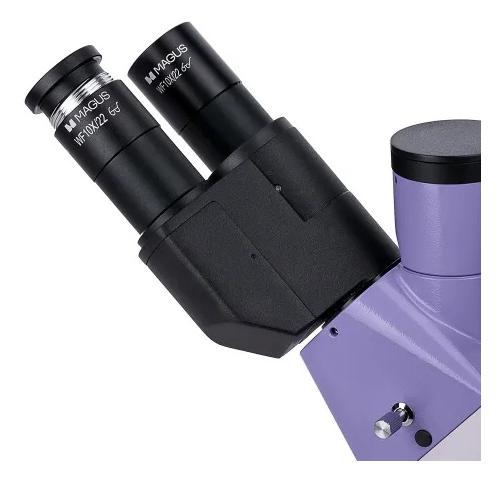

• eyepieces 10x/22 mm (2 pcs.)

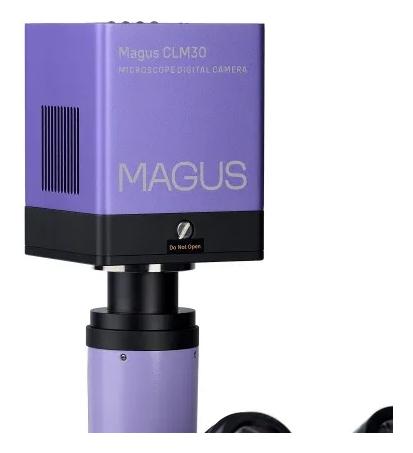

• MAGUS CLM30 camera, Type-C adapter, 12V power supply, USB cable, CD
• power cord, dust cover, Allen key
• user manual and warranty card

Technical parameters

• Product ID: 83038
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018485
• package size: 49×34×68 cm
• shipment weight: 19.3 kg
• type: metallurgical, inverted
• head: trinocular Siedentopf, rotatable by 180°, angle 45°
• magnification: 50–500x (optionally up to 2500x)
• eyepieces: 10x/22 mm; optional: with scale, 12.5x, 15x, 20x, 25x
• lenses: PL L5x, 10x, 20x, 50x BD; optional: 40x, 60x, 80x, 100x BD
• table: 242×200 mm, plate Ø130 mm with holes Ø10, 20, 30 mm
• range of motion: 30×30 mm
• focus: coaxial, coarse with lock and tension, fine 0.002 mm
• lighting: 50 W halogen, bottom, reflected

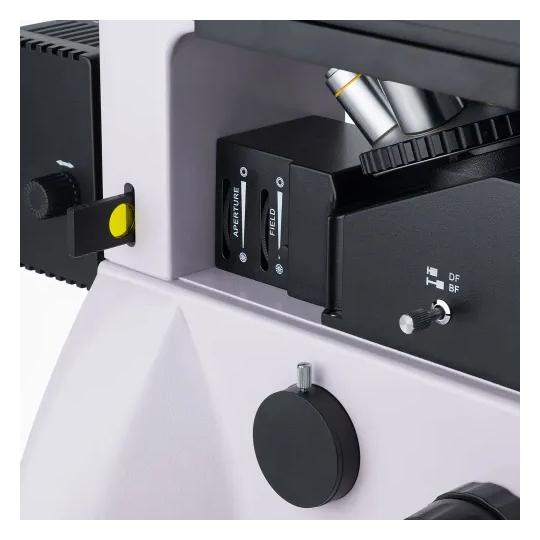

• diaphragm: aperture and field

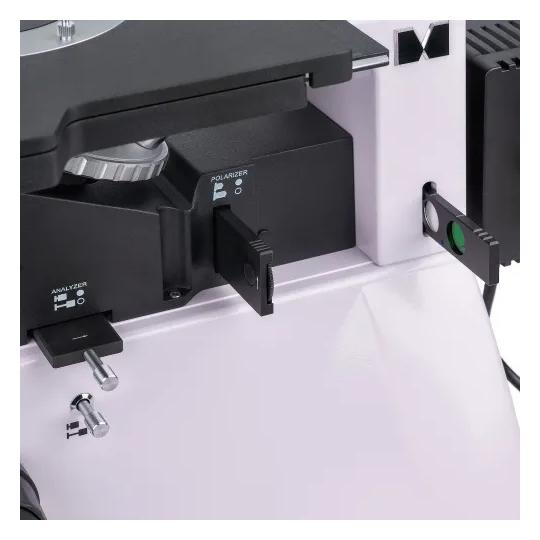

• polarizer and analyzer: removable
• filters: green, blue, yellow, matte
• temperature range: 5…+35°C
• application: metallurgical, industrial, research
• cover: dust cover

Camera parameters

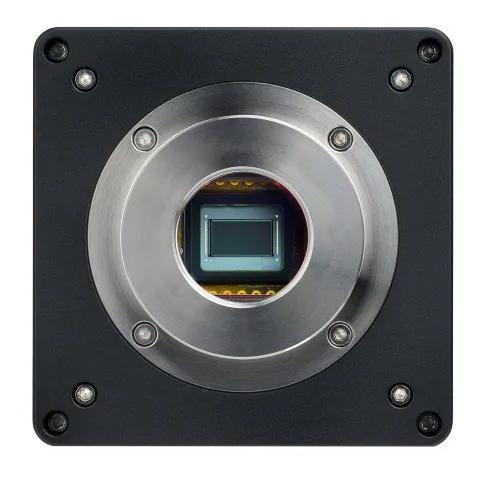

• sensor: SONY Exmor CMOS 1/1.2”
• resolution: 3840×2160 pixels (8.3 MP)
• number of frames: 45 fps (3840×2160), 70 fps (1920×1080)
• pixel size: 2.9×2.9 µm
• Light sensitivity: 5970 mV at 1/30 s
• shutter: electronic ERS
• spectral range: 380–650 nm, IR filter
• white balance and exposure: automatic and manual
• A/D converter: 8/12 bit
• exposure time: 0.1 ms – 1 h
• cooling: Peltier module (42°C below ambient temperature)
• software: MAGUS View
• image formats: *.jpg, *.bmp, *.png, *.tif
• video formats: *.wmv, *.avi, *.h264, *.h265

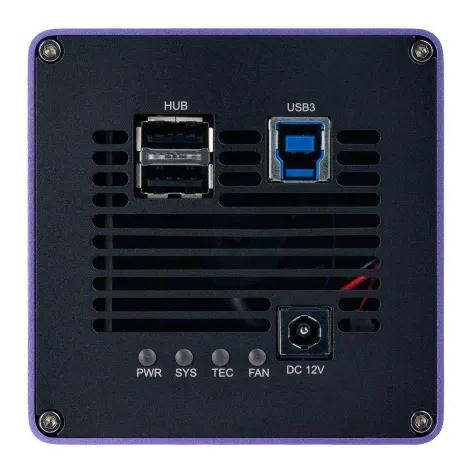

• output: USB 3.0
• assembly: type C
• power supply: 5 V from USB or 12 V/3 A
• operating temperature: -10…+50°C
• humidity: 30–80%
• compatibility: Windows, macOS, Linux
