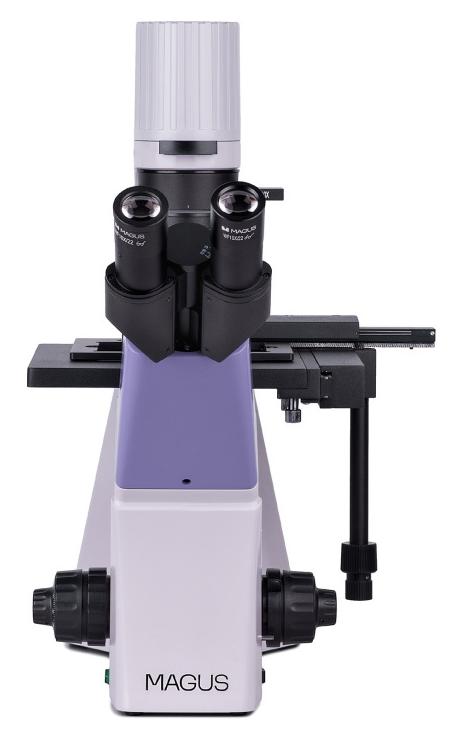

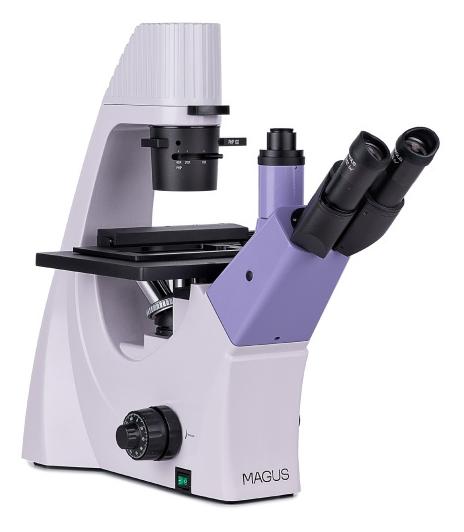

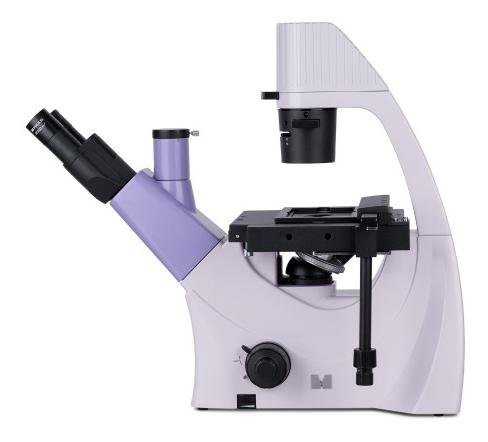

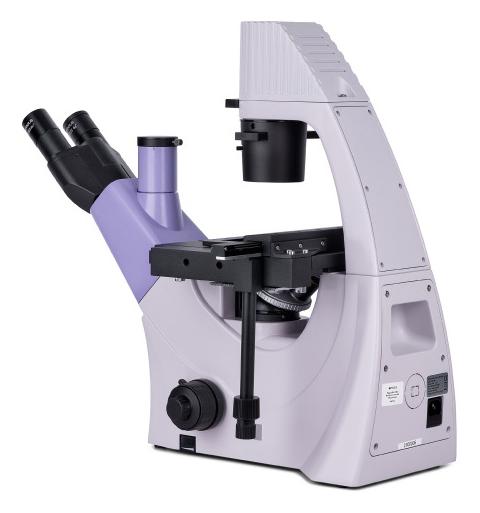

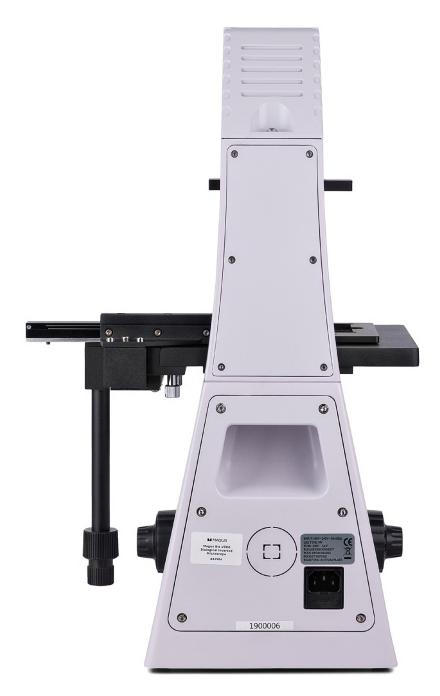

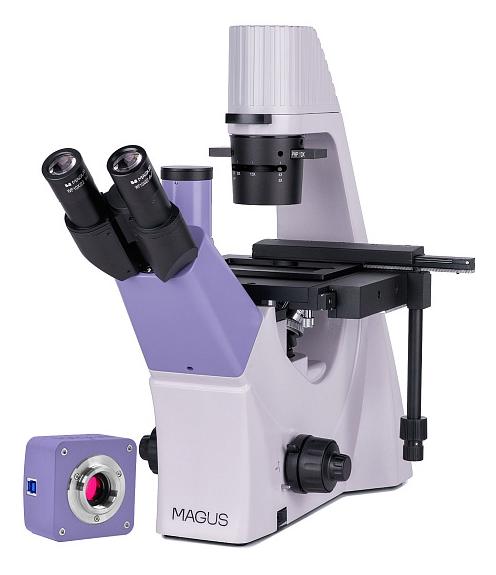

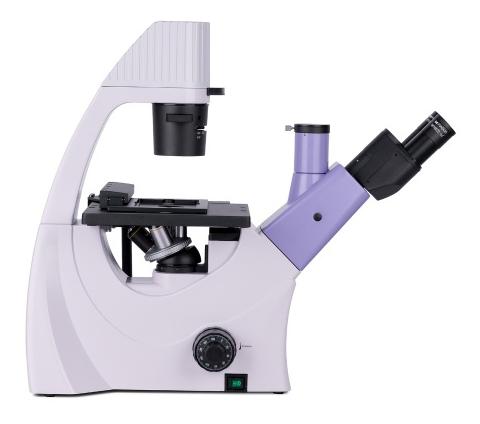

The MAGUS Bio VD300 digital inverted microscope (SKU: 83012) is a universal tool for observing preparations in laboratory vessels up to 70 mm high and with a bottom thickness of up to 1.2 mm. It allows for conducting research using bright field and phase contrast methods, without the need to stain the preparations. Equipped with 9 W LED lighting, a coaxial focusing mechanism and an extensive optical set, it will prove useful in laboratory work, teaching and diagnostics. The set also includes a MAGUS CDF30 digital camera with a SONY Exmor CMOS 8.3 MP matrix.
• observation techniques: bright field and phase contrast
• digital camera mounted in a trinocular tube (camera included)
• 9 W LED lighting with brightness control
• fixed table with X/Y axis movements and three specimen holders
• a set of four lenses (including a phase one) with infinity correction

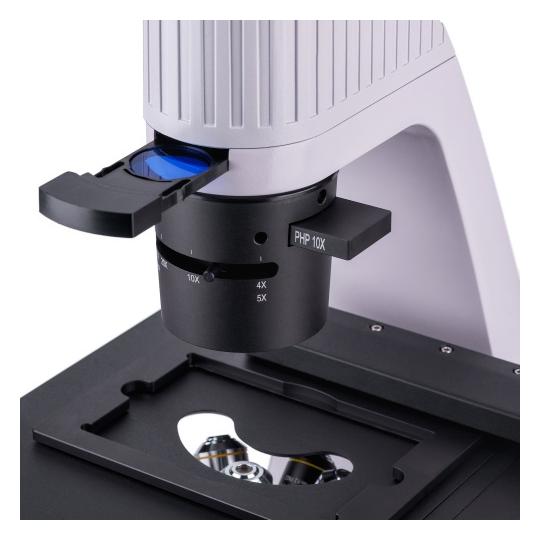

• condenser with phase contrast slider socket and centered rings

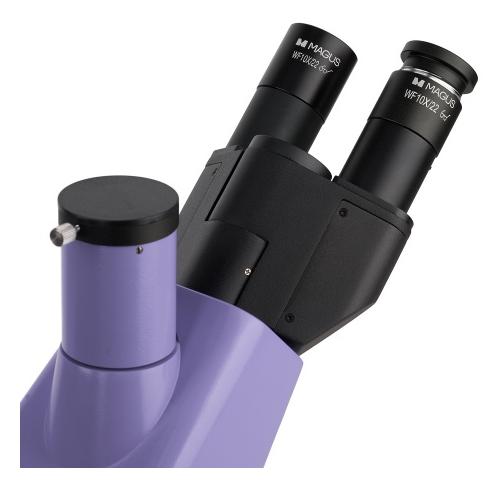

• Siedentopf type trinocular head, 45° inclination

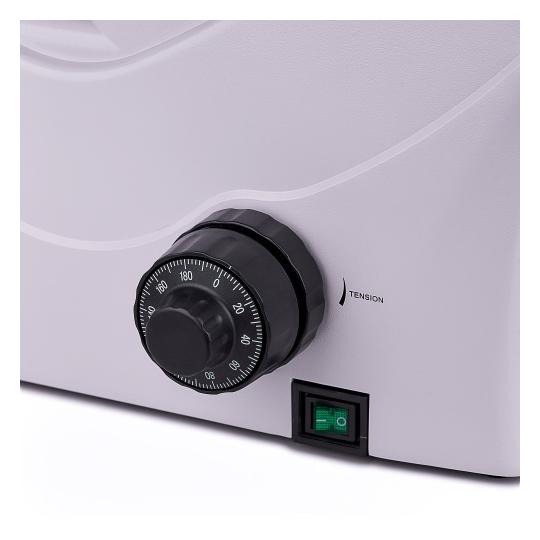

• coaxial focusing mechanism with lock and tension adjustment
• optional accessories: eyepieces, phase lenses, calibration preparations
• MAGUS CDF30 digital camera with USB cable, software and documentation
• base with LED lighting and focusing mechanism
• table with mechanical fastening and 3 preparation holders
• condenser with phase contrast slider socket
• revolver bowl for 4 lenses
• trinocular head

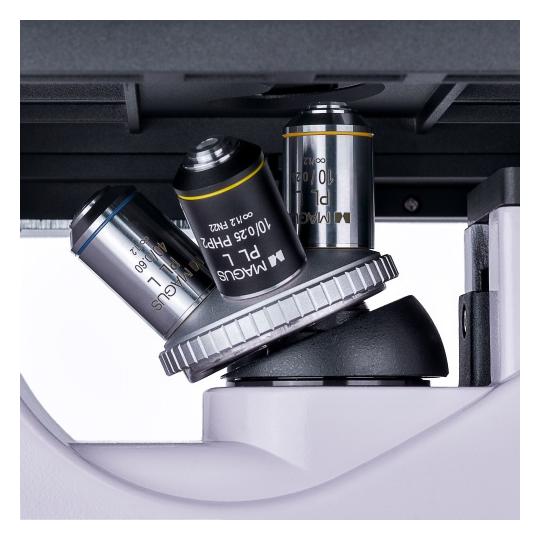

• lenses: PL 10x/0.25 WD 4.27 mm; PL L20x/0.40 WD 8.0 mm; PL L40x/0.60 WD 3.5 mm; PHP2 10x/0.25 phase WD 4.27 mm
• eyepieces 10x/22 mm (2 pcs.), eyecups (2 pcs.)
• centering telescope
• Phase contrast slider with centered rings
• C-mount adapter
• color filter, power cord, dust cover
• user manual and warranty card
• Product ID: 83012
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555018096
• shipment weight: 18.6 kg
• package size: 64x42x67 cm
• type: biological, optical, digital
• head: Siedentopf trinocular, 45° inclination
• eyepieces: 10x/22 mm, Ø30 mm, pupil distance 10 mm
• lenses: PL 10x/0.25; PL 20x/0.40; PL 40x/0.60; PHP2 10x/0.25 phase
• working distances: 4.27 mm (10x), 8.0 mm (20x), 3.5 mm (40x)
• pupil distance: 48–75 mm
• revolver: 4 slots
• table: fixed, with 77/112 mm movements and 3 preparation holders
• condenser: NA 0.6, WD 70 mm, aperture diaphragm, slider socket
• focus adjustment: coaxial coarse and fine (0.002 mm)
• lighting: LED 9 W, brightness adjustment
• power supply: AC 220±22 V, 50 Hz
• operating temperature: 5...+35°C
• test method: bright field, phase contrast
• additional accessories: eyepieces, phase lenses, calibration preparations

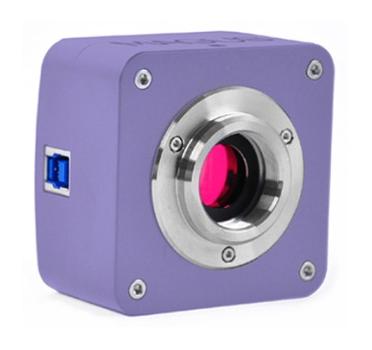

• camera: SONY Exmor CMOS, 8.3 MP, color
• resolution: 3840x2160 px, 45 fps; 1920x1080 px, 70 fps
• shutter: electronic (ERS), white balance and exposure time: manual and automatic
• image/video formats: *.jpg, *.bmp, *.png, *.tif, *.wmv, *.avi, *.h264, *.h265
• interface: USB 3.0, Type-C mounting
• software: MAGUS View
• compatibility: Windows 8/10/11, Mac OS X, Linux
