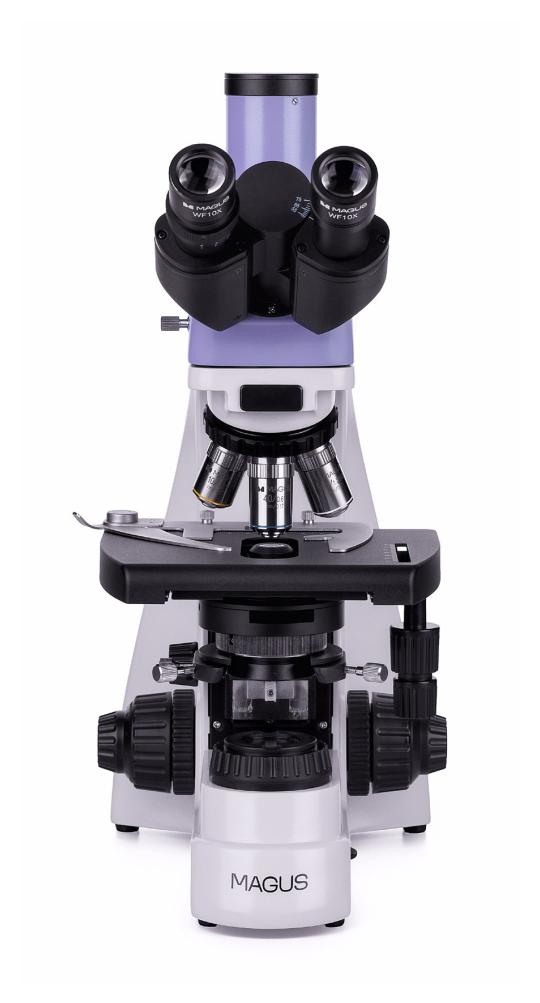

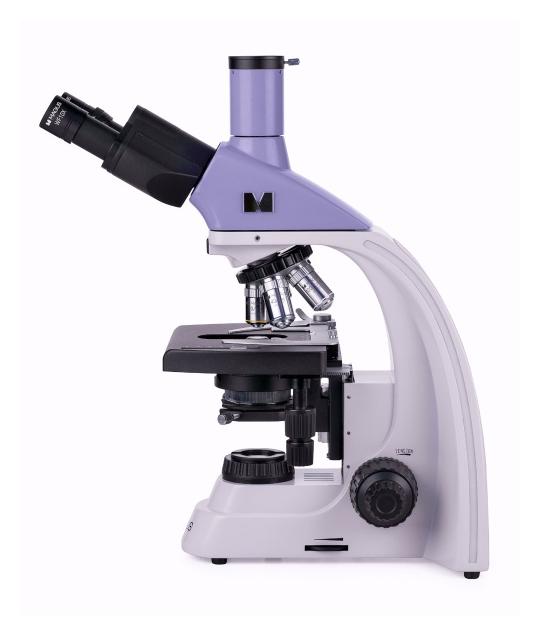

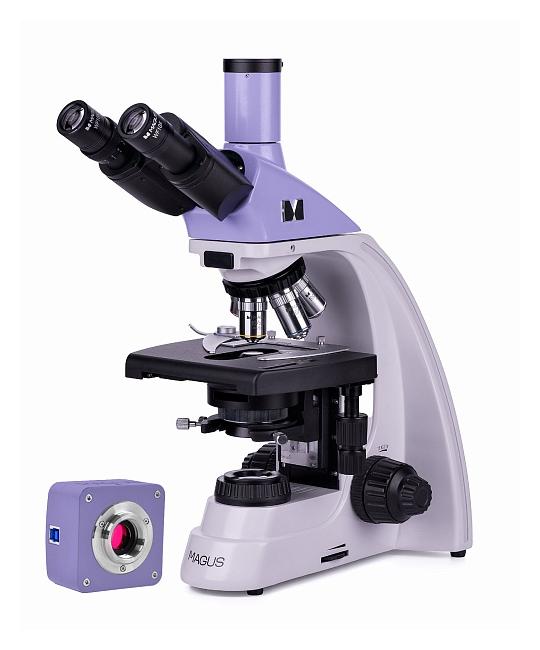

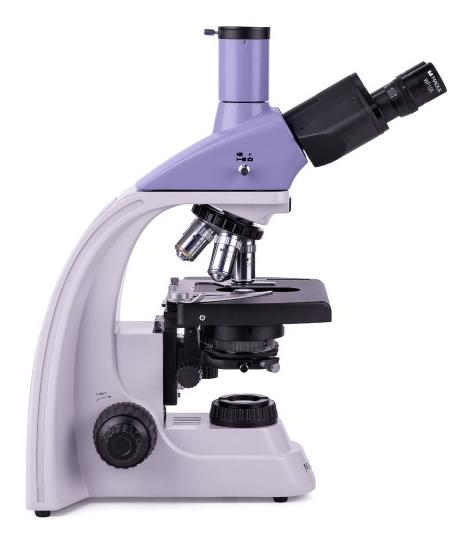

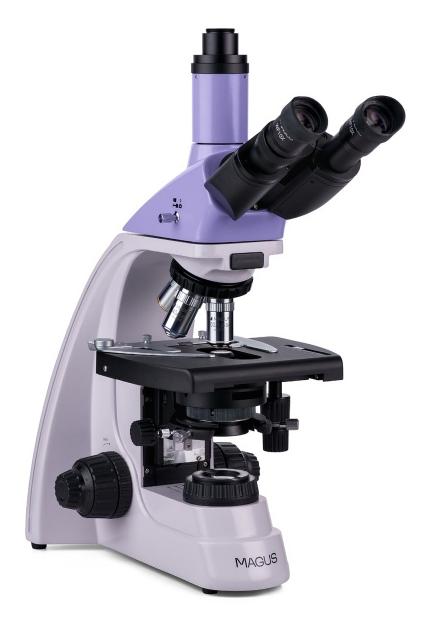

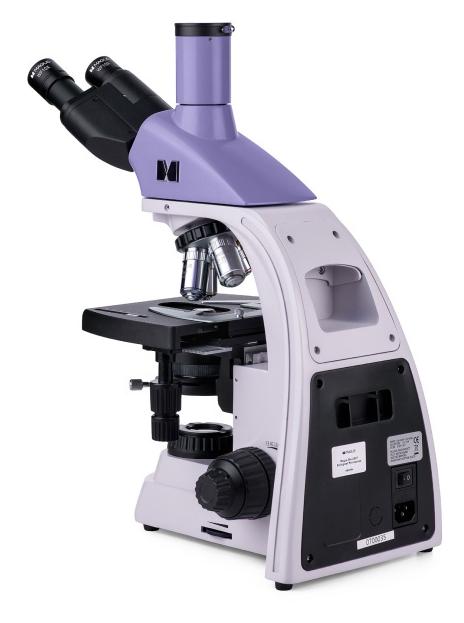

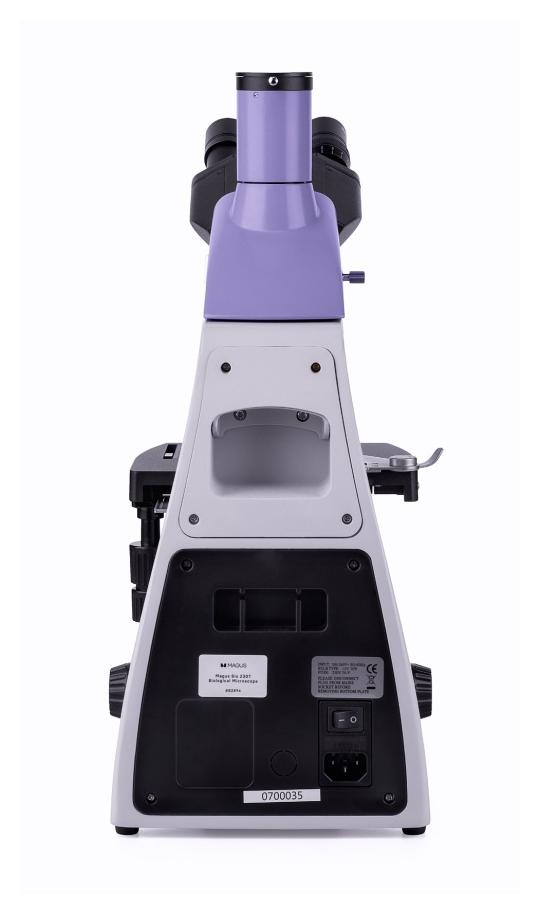

The MAGUS Bio D230T digital biological microscope (SKU: 83004) is a laboratory instrument designed for observing thin sections and biological smears in transmitted light. Thanks to the trinocular head and the possibility of installing a camera, the microscope is suitable for diagnostics, science and quality control. Warm halogen lighting allows comfortable work for long hours. The set includes a MAGUS CDF10 digital camera with a SONY Exmor matrix with a resolution of 2 MP and a speed of 125 fps at Full HD.

Key Features

• bright field technique in transmitted light

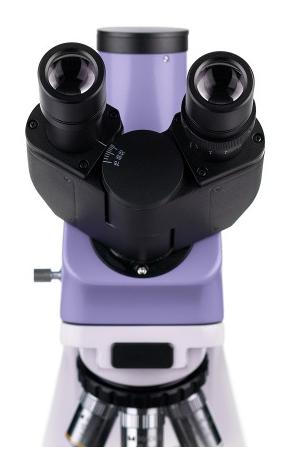

• gemel trinocular head, 360° rotatable, 30° inclination

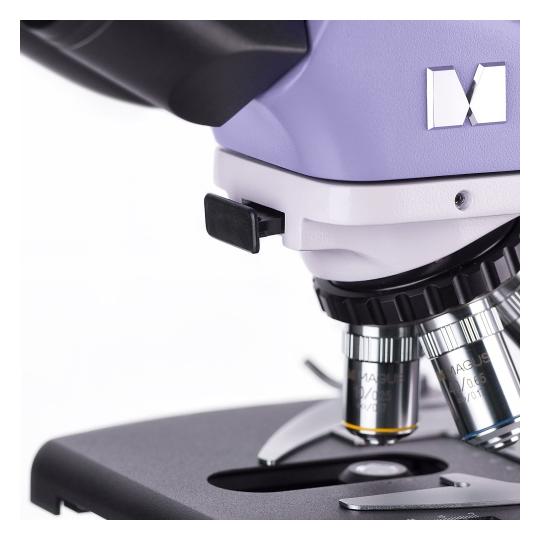

• five-slot revolver with four lenses included
• achromatic lenses with infinity correction
• magnification range 40–1000×, optionally up to 2000×
• mechanical table without latches, removable specimen holder
• coaxial focus adjustment with coarse and fine knobs, lock and tension adjustment
• 30 W halogen lighting with field diaphragm and aperture diaphragm
• Abbe condenser with dark field or phase contrast slider socket

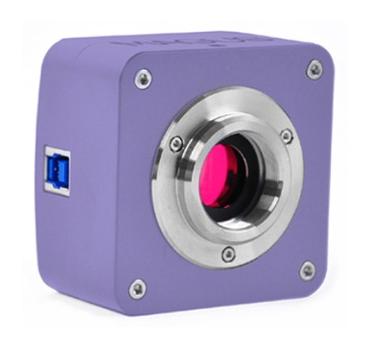

• MAGUS CDF10 camera: SONY Exmor CMOS sensor, 2 MP, Full HD, 125 fps
• USB 3.0 interface, Type-C mounting, MAGUS View software

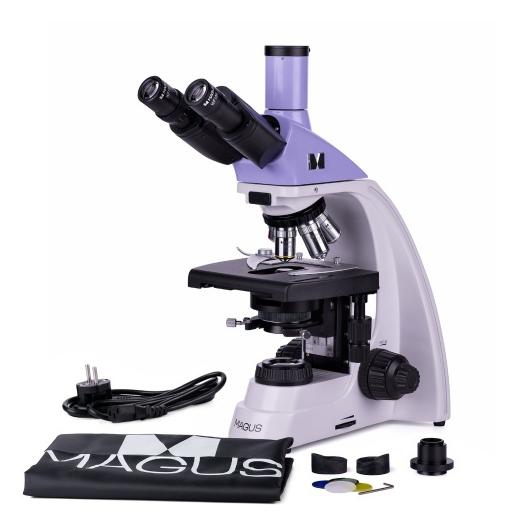

Set components

• MAGUS CDF10 camera with USB cable, CD, manual and warranty card
• base with lighting, focusing mechanism, stage, condenser holder, revolver
• Abbe condenser
• trinocular head
• lenses: 4x/0.10, 10x/0.25, 40x/0.65 (spring), 100x/1.25 (oil, spring)

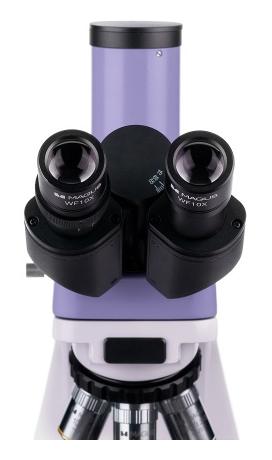

• 10x/18 mm eyepieces (2 pcs.) with large pupil distance
• eyecups (2 pcs.)
• filter (4 pcs.)
• smartphone attachment with Type-C mount
• container with immersion oil
• power cord
• dust cover
• user manual and warranty card

Technical parameters

• Product ID: 83004
• brand: MAGUS
• warranty: 5 years
• EAN: 5905555017945
• shipment weight: 11.1 kg
• package size: 43x27x63 cm
• type: biological, optical, digital

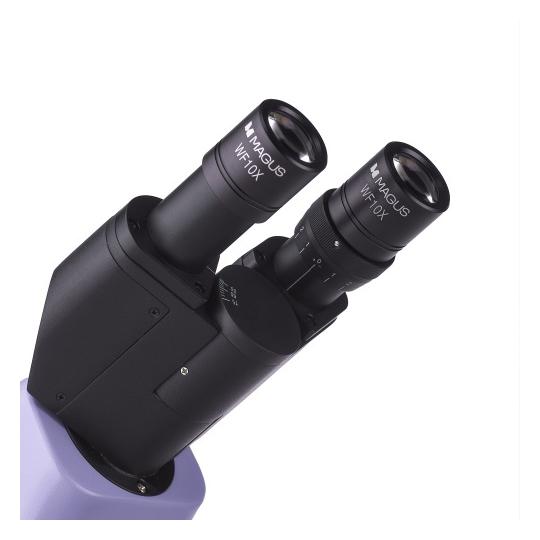

• head: gemel trinocular, 360° rotation, 30° inclination
• eyepieces: 10x/18 mm, Ø23.2 mm, pupil distance 10 mm
• revolver: 5 sockets

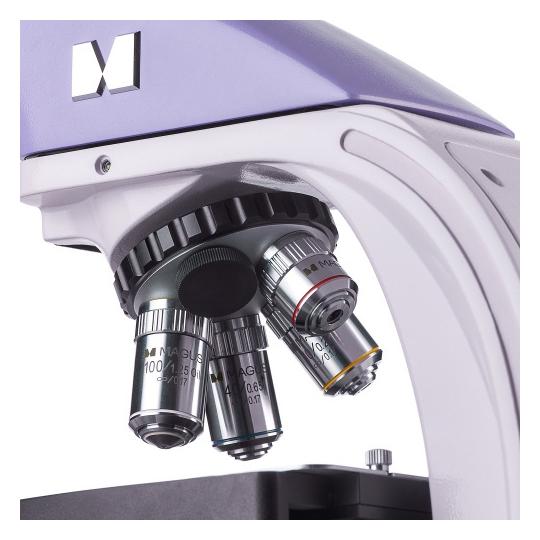

• lenses: 4x/0.10; 10x/0.25; 40x/0.65; 100x/1.25 (oil), parfocal 45 mm

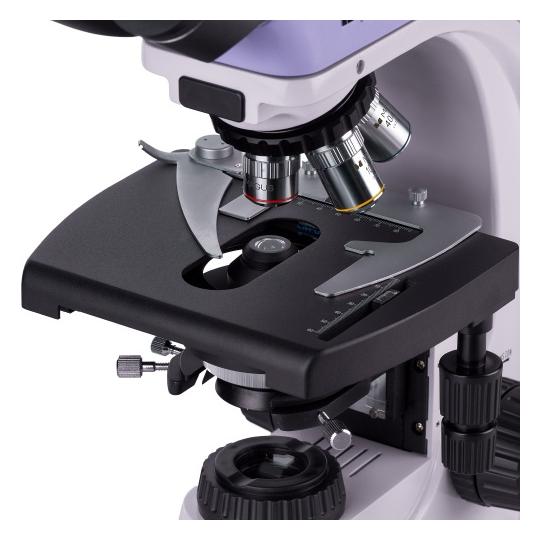

• table: 180x150 mm, movement 75/50 mm, no latches

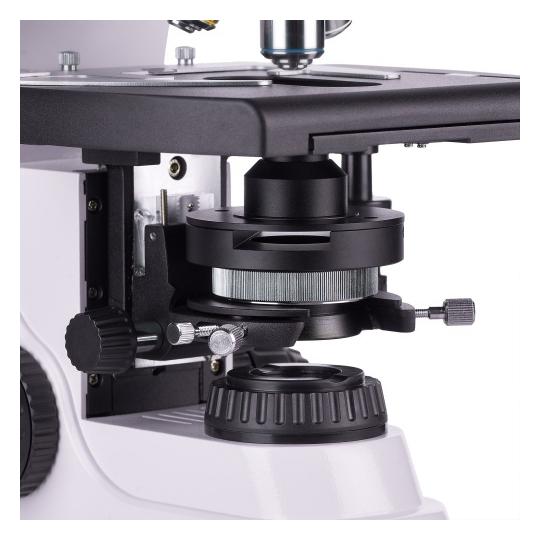

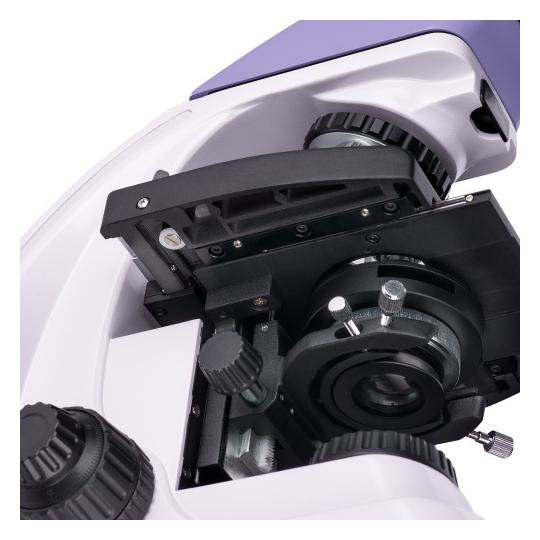

• NA 1.25 Abbe condenser, field and aperture diaphragms, slider socket

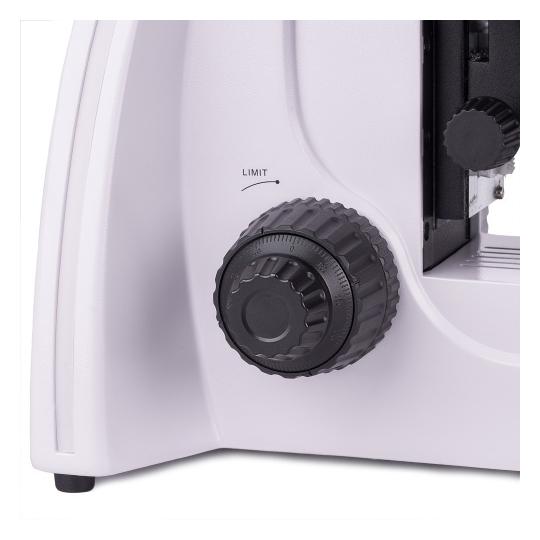

• focus adjustment: coaxial, coarse (21 mm, 39.8 mm/turn) and fine (0.002 mm), lock and tension knob
• Light source: halogen 12 V/30 W, G4
• power supply: AC 220±22 V, 50 Hz
• camera: SONY Exmor CMOS, color, 2 MP
• resolution: 1920×1080 px
• matrix: 1/2", pixel 3.75×3.75 µm
• Light sensitivity: 2350 mV at 1/30 s
• frame rate: 125 fps at full resolution
• interface: USB 3.0, Type-C mounting
• software: MAGUS View
• compatibility: Windows 8/10/11, macOS, Linux
• application: laboratories, clinics, education
