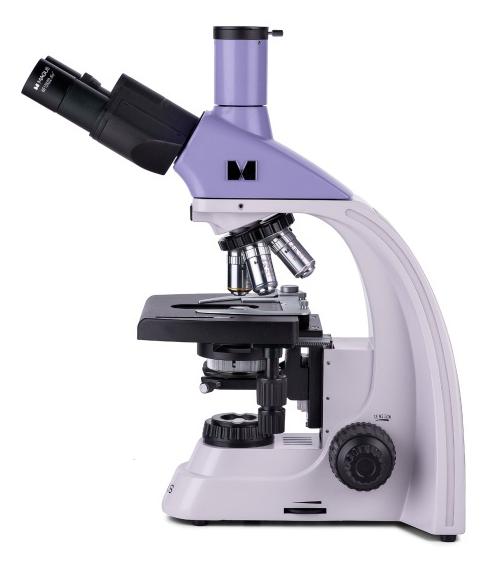

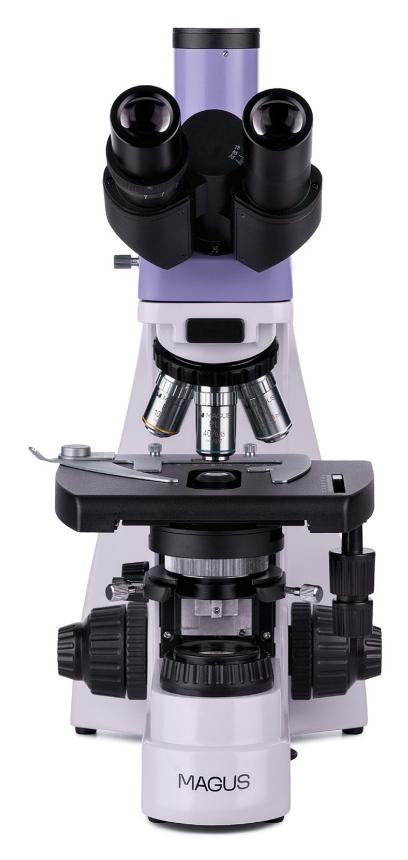

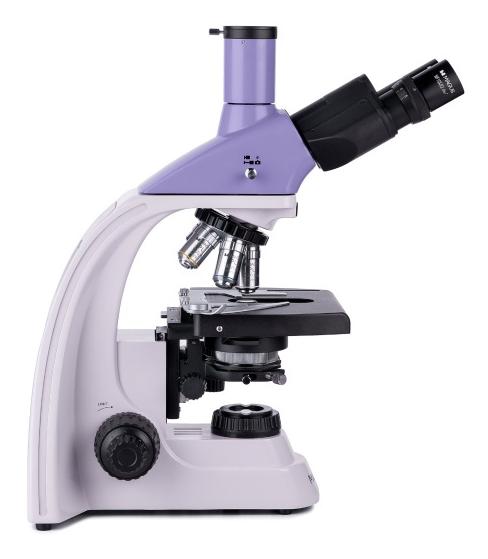

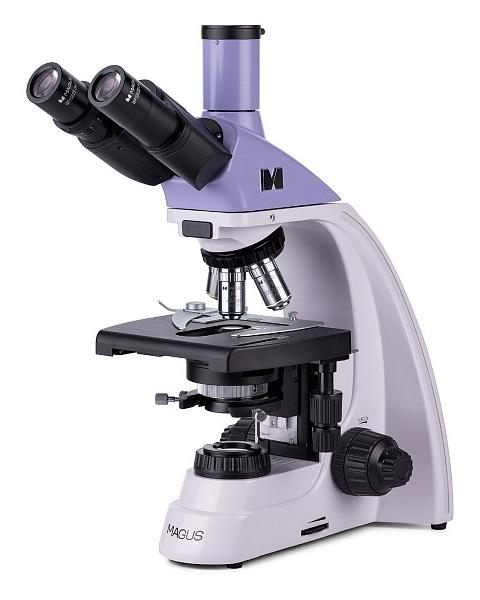

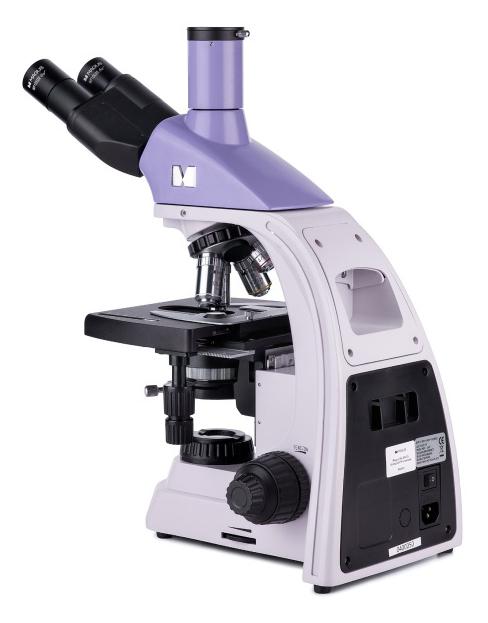

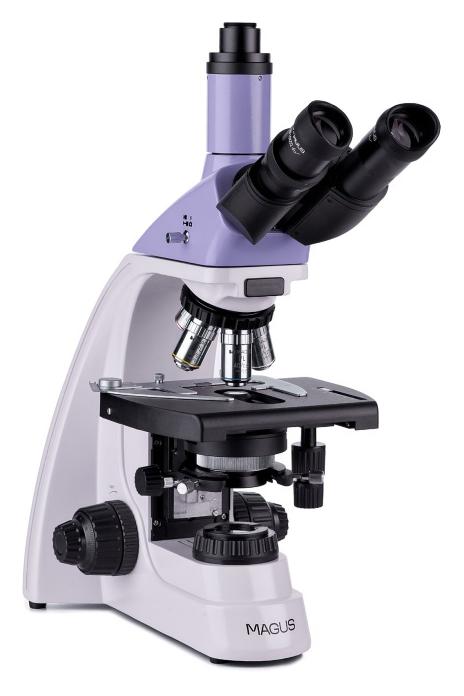

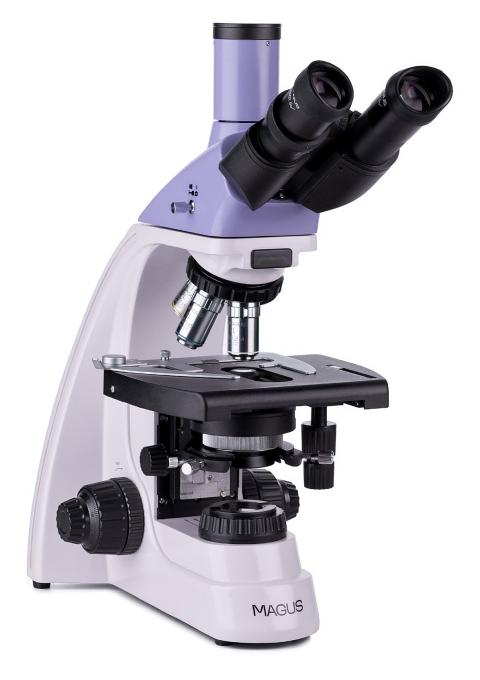

MAGUS Bio 250TL (SKU: 82891) is a biological microscope for observing thin sections and smears of preparations in transmitted light using the bright field technique. Equipped with an optical system with planar-achromatic objectives with infinity correction and a 3 W LED lamp, it provides high image quality and work comfort. The microscope can be expanded with accessories for phase contrast, dark field and polarization, making it a versatile tool for laboratories, research and education.

Key Features

• trinocular head with a tube for mounting a digital camera
• planar-achromatic optical system with infinity correction
• magnification range in basic configuration: 40–1000×
• revolver bowl for 5 lenses, 1 free socket
• adapted for expansion with devices for phase contrast, dark field and polarization
• 3 W LED lamp with a lifespan of 50,000 hours, with brightness adjustment
• Abbe condenser with field and aperture diaphragms for Köhler illumination
• a table without a ratchet mechanism, saving space
• coaxial focus adjustment with knobs on both sides of the microscope

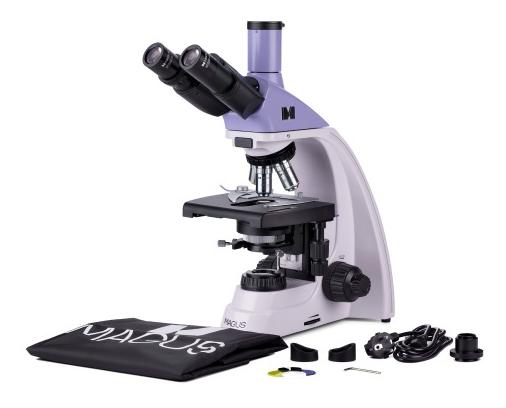

Set components

• base with power socket, transmitted light source, focus adjustment mechanism, stage, condenser holder and revolving bowl
• Abbe condenser
• trinocular head

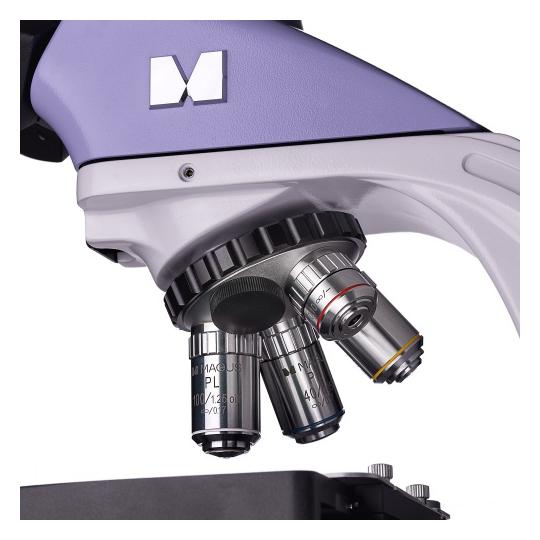

• plan achromatic objectives: 4x/0.10; 10x/0.25; 40x/0.65 spring; 100x/1.25 spring oil
• eyepieces 10x/22 mm (2 pcs.)
• eyecups (2 pcs.)
• filters (4 pcs.)
• smartphone attachment with Type-C mount
• container with immersion oil
• power cord
• dust cover
• user manual and warranty card

Technical parameters

• type: biological, light/optical

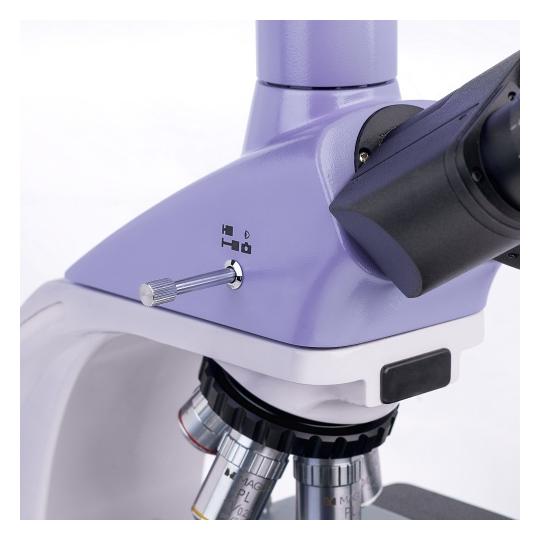

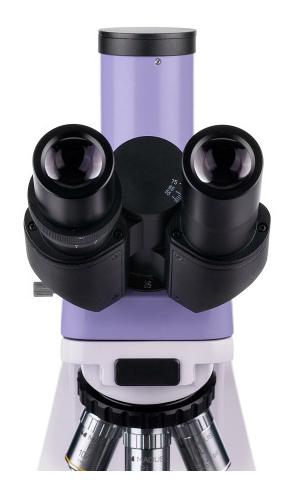

• head: gemel type trinocular (Siedentopf), rotatable 360°, inclination 30°
• magnification: 40–1000× (optionally up to 2500×)

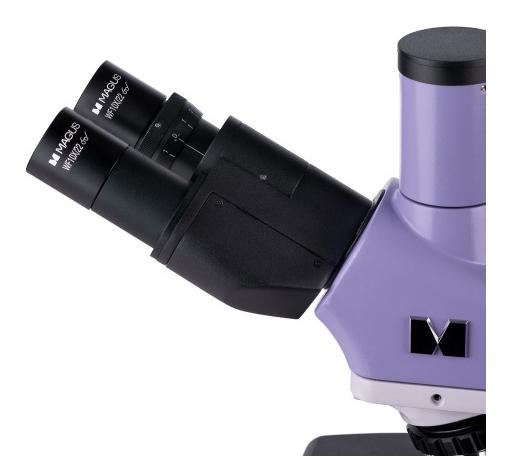

• eyepieces: 10x/22 mm, pupil distance 10 mm, tube diameter 30 mm
• lenses: 4x/0.10; 10x/0.25; 40x/0.65 (spring); 100x/1.25 (oil, spring)
• revolver: for 5 lenses
• working distance: 21 mm (4x); 5 mm (10x); 0.66 mm (40x); 0.36 mm (100x); additional: 8.8 mm (20x); 0.465 mm (60x)
• pupil distance: 48–75 mm

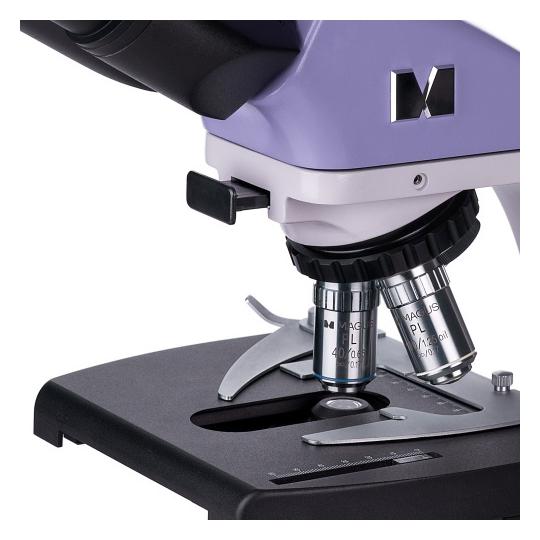

• table: 180x150 mm, two-axis without ratchet mechanism
• table movement range: 75/50 mm (using the focus mechanism)
• diopter adjustment: ±5 (in left tube)

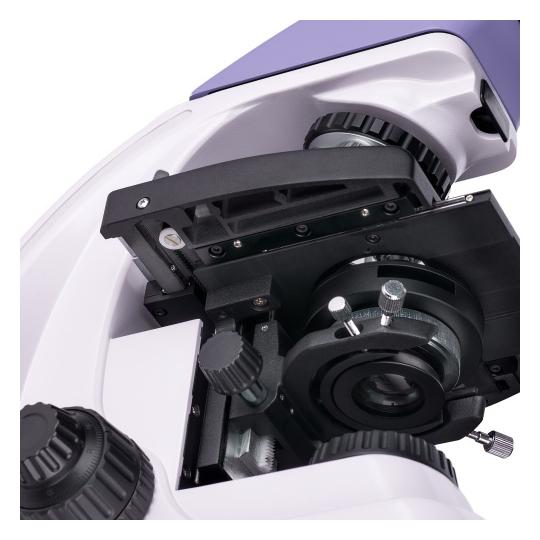

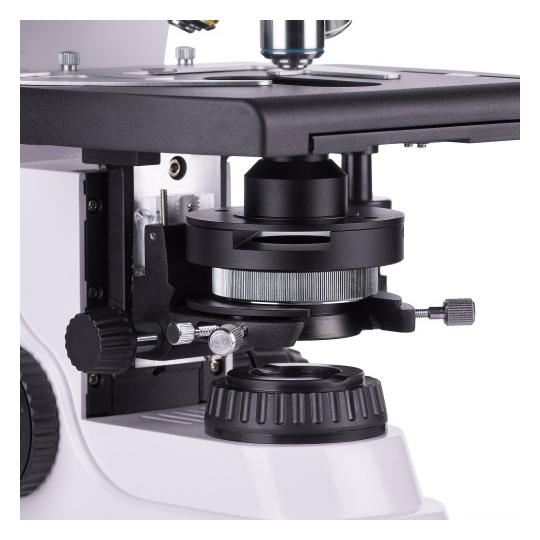

• condenser: Abbe NA 1.25 with central and height adjustment, field and aperture diaphragms, phase contrast and dark field slider socket
• diaphragm: aperture and field iris diaphragm

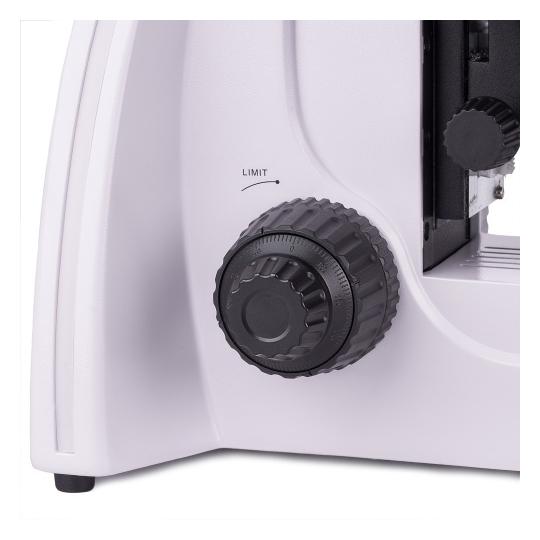

• focus adjustment: coaxial, coarse (21 mm, 39.8 mm/turn, lock and tension adjustment), fine (0.002 mm)
• lighting: LED 3 W
• brightness adjustment: yes
• power supply: AC 220±22 V, 50 Hz
• filters: yes
• operating temperature range: 5...+35°C
• possibility of connecting accessories: phase contrast, dark field (dry and immersive), polarization
• level of advancement: experienced users, professionals
• assembly difficulty level: complicated
• use: clinical, laboratory
• location of the light source: bottom
• test method: bright field
• case included: dust cover
• weight: 8 kg
• dimensions: 200x436x400 mm
• EAN: 5905555018058
• shipment weight: 10.5 kg
