The Leupold Mark 5HD 2-10x30 M5C3 FFP TMR riflescope is designed as a compact optic for tactical use and mid-range shooting. Its 2-10x magnification range allows for rapid engagement at close distances as well as precise identification and shooting at longer ranges. The Professional-Grade Optical System ensures high image quality, strong light transmission, and effective glare reduction.

Key features

• 2-10x magnification range for tactical and mid-range applications
• Professional-Grade Optical System delivering high light transmission, strong resolution, and reduced glare
• compact and lightweight construction
• TMR (Mk) reticle in the first focal plane (FFP)

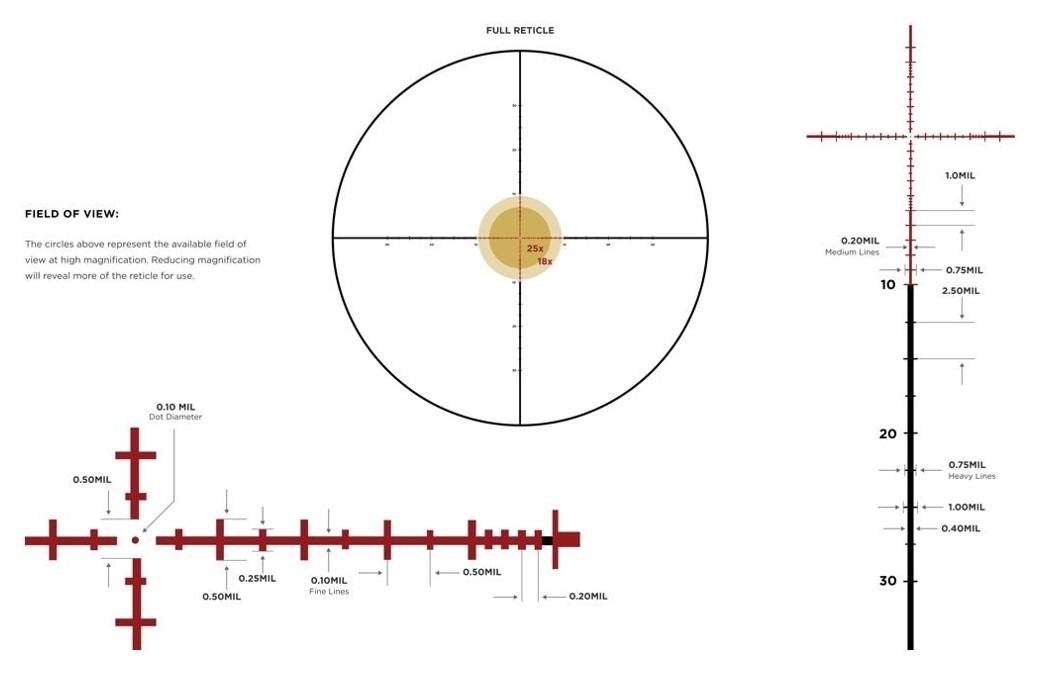

• MIL-based reticle with 0.5 MIL hash marks and 0.2 MIL refinement on outer sections
• hash marks instead of dots for improved ranging and holdover precision
• supports wind and bullet drop compensation without turret adjustment
• M5C3 elevation turret with 0.1 MIL adjustments
• up to 30 MIL of elevation adjustment across three revolutions
• ZeroLock system preventing accidental turret movement
• Zero Stop for fast and repeatable return to zero
• side focus parallax adjustment
• elevation revolution indicator
• fast magnification changes with throw lever
• capped windage turret
• waterproof, fogproof, and shockproof construction
• 35 mm maintube providing a wide adjustment range

Included in the box

• Leupold Mark 5HD 2-10x30 M5C3 FFP TMR riflescope

Technical specifications

• magnification: 2-10x
• objective diameter: 30 mm
• tube diameter: 35 mm
• reticle: TMR (Mk)
• focal plane: first (FFP)
• parallax adjustment: from approx. 36.6 m to ∞ (side focus)
• elevation turret type: M5C3
• windage turret type: capped
• locking turret: ZeroLock
• Zero Stop: yes
• click value: 0.1 MIL
• elevation adjustment range: 48 MIL (165 MOA)
• windage adjustment range: 23 MIL (80 MOA)
• elevation adjustment per revolution: 10.5 MIL
• windage adjustment per revolution: 10 MIL
• elevation dial travel limit: 30 MIL
• minimum parallax-free distance: 40 yd / 36.6 m
• field of view at 100 m: 16.1-3.2 m
• eye relief: 91-94 mm
• illuminated reticle: no
• length: 284 mm
• weight: 680 g
• manufacturer: Leupold, USA
• SKU: 179703
