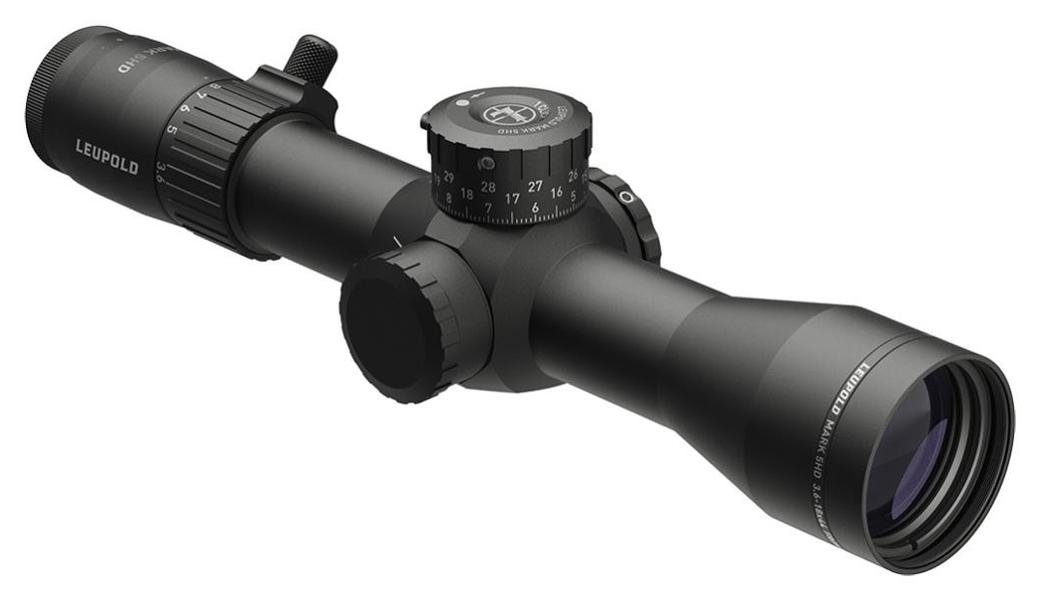

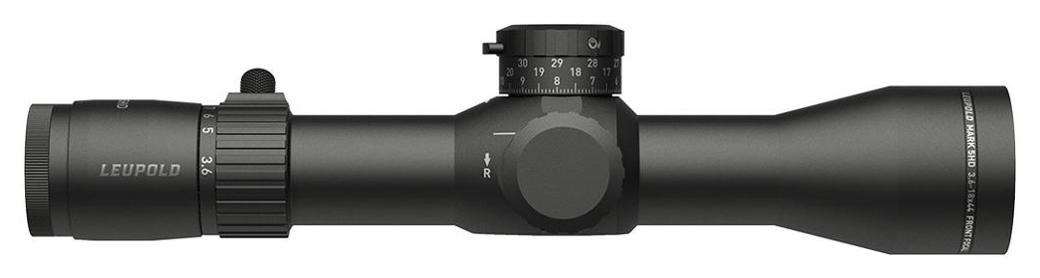

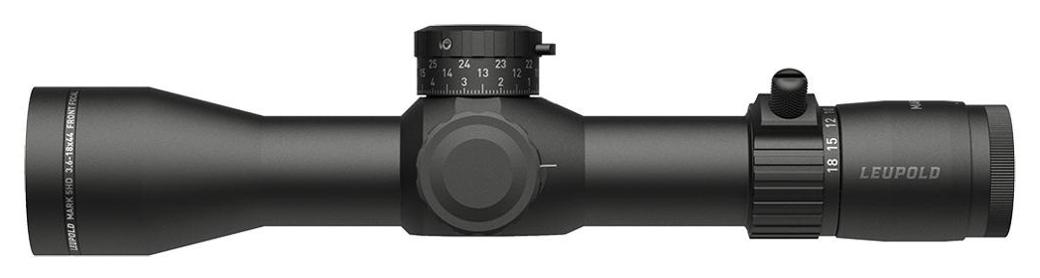

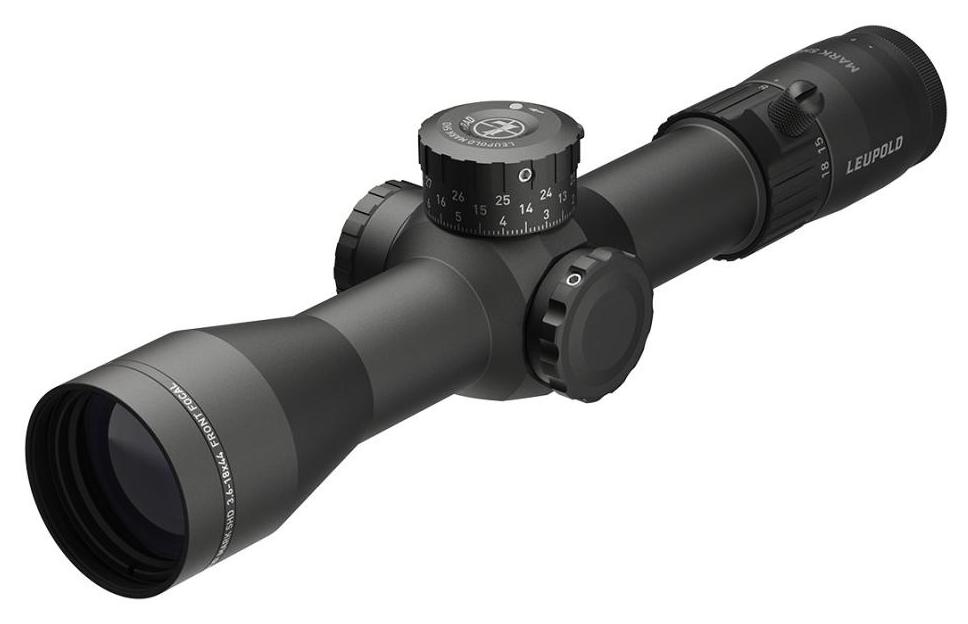

Leupold Mark 5HD 3.6-18x44 M5C3 FFP H59 Riflescope (SKU: 173298)

Leupold Mark 5HD 3.6–18×44 M5C3 FFP H59 riflescope (Leupold, SKU: 173298) is a riflescope for sport shooting and field use. Variable magnification lets you adjust the image scale to the distance of the observed target.

Key features

• first focal plane reticle maintains its scale relative to the image as magnification changes
• non-illuminated reticle requires no power to display the aiming mark
• locking dial helps prevent accidental adjustment changes
• side focus parallax adjustment allows the setting to be matched to target distance
• optical design: Professional-Grade Optical System
• waterproof and internally fogproof construction

Included items

• riflescope Leupold Mark 5HD 3.6–18×44 M5C3 FFP H59

Technical specifications

• magnification: 3.6–18×
• objective lens diameter: 44 mm
• maintube diameter: 35 mm

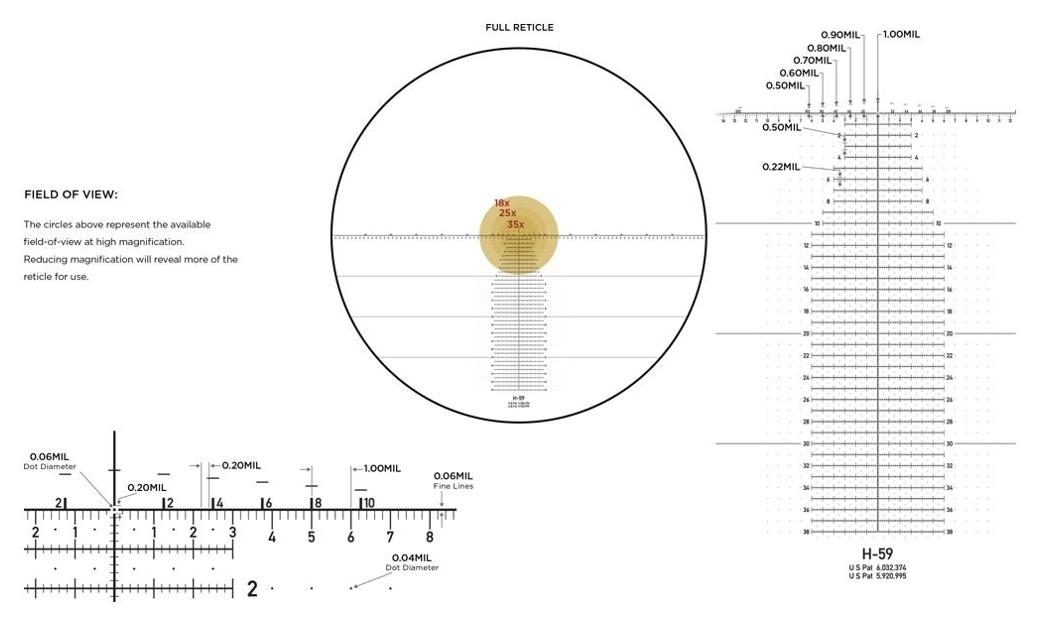

• reticle: H59
• reticle focal plane: first focal plane (FFP)
• reticle illumination: no

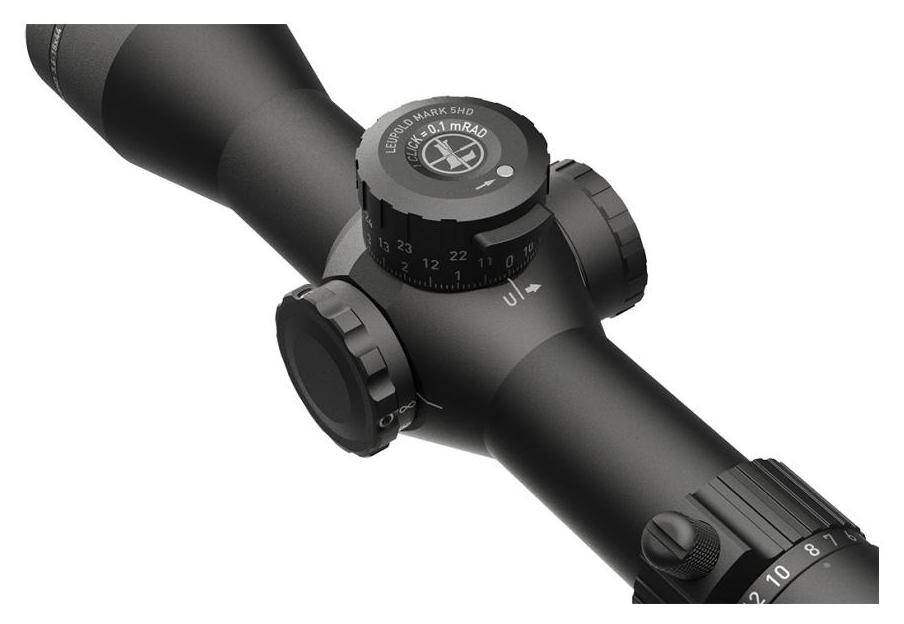

• elevation adjustment mechanism: M5C3
• windage adjustment mechanism: capped
• click value – elevation: 0.1 MIL
• total adjustment range – elevation: 29 MIL
• adjustment per revolution – elevation: 10.5 MIL
• click value – windage: 0.1 MIL
• total adjustment range – windage: 23 MIL
• adjustment per revolution – windage: 10 MIL
• elevation dial travel limit: 30 MIL
• parallax adjustment: side focus, from approx. 45.7 m to infinity (50 yd)
• field of view at min./max. magnification: approx. 9.43 / 1.93 m / 100 m
• angular field of view at min./max. magnification: 5.4 / 1.1°
• eye relief at min./max. magnification: approx. 88.9 / 96.5 mm
• overall length: approx. 307.3 mm
• total mounting space: approx. 149.9 mm
• front mounting space: approx. 43.2 mm
• rear mounting space: approx. 50.8 mm
• eyepiece assembly length: approx. 83.8 mm
• objective assembly length: approx. 73.7 mm
• objective housing outside diameter: approx. 53.3 mm
• eyepiece housing outside diameter: approx. 45.7 mm
• weight: approx. 737 g

Selecting the magnification and setting the described adjustments lets you adapt the scope to the viewing conditions.
