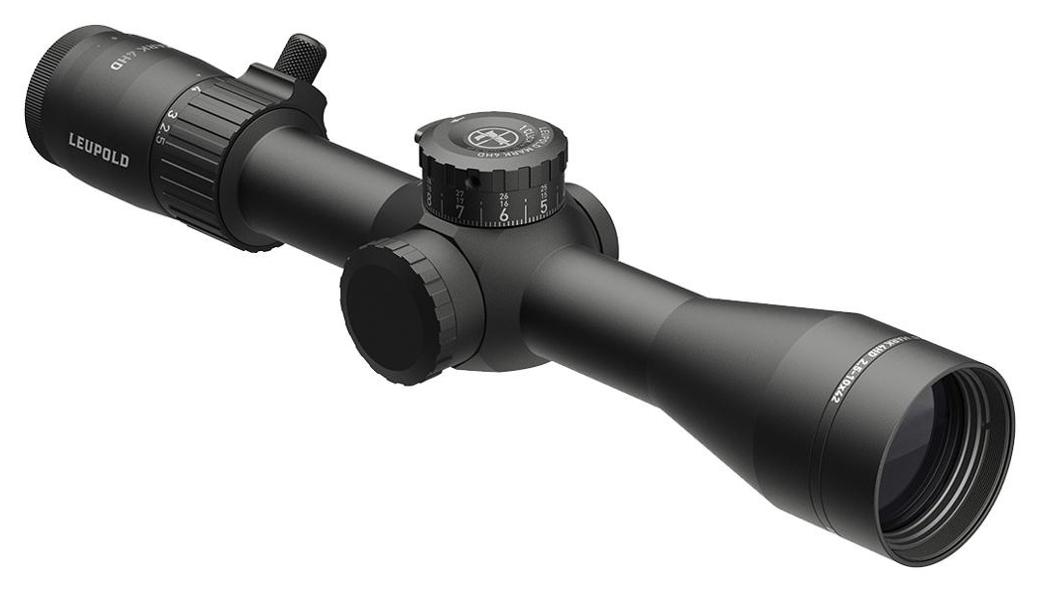

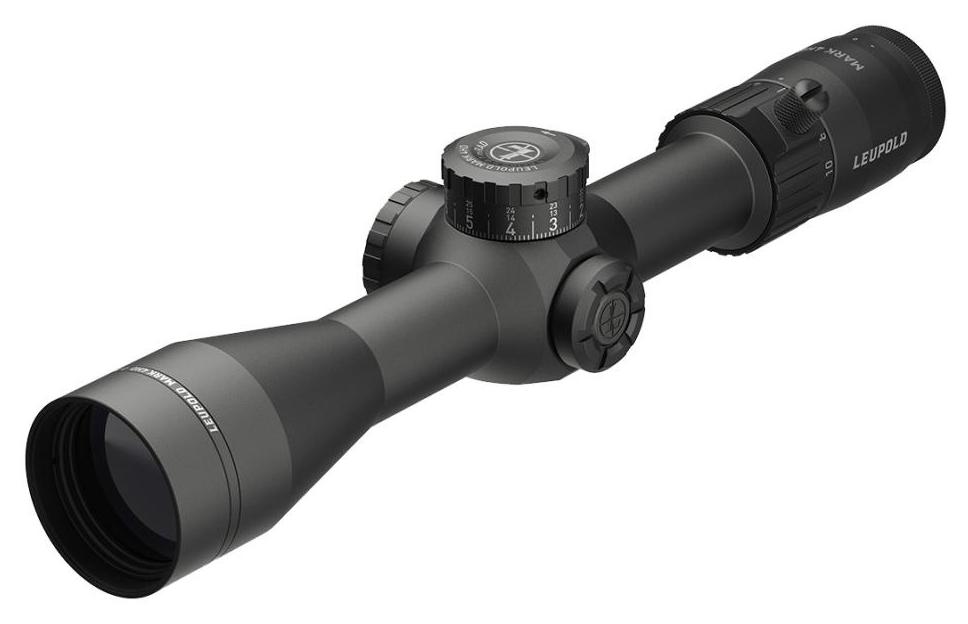

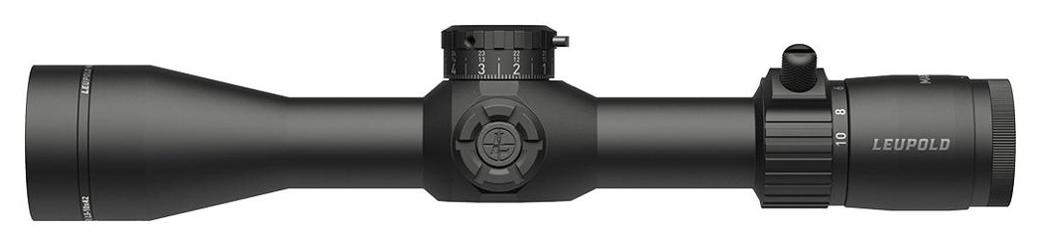

Leupold Mark 4HD 2.5-10x42 M5C3 FFP Illuminated TMR Riflescope (SKU: 183738)

Leupold Mark 4HD 2.5–10×42 M5C3 FFP Illum. TMR riflescope (Leupold, SKU: 183738) is a riflescope for sport shooting and field use. Variable magnification lets you adjust the image scale to the distance of the observed target.

Key features

• first focal plane reticle maintains its scale relative to the image as magnification changes
• illuminated reticle makes the aiming mark easier to see against the observed subject

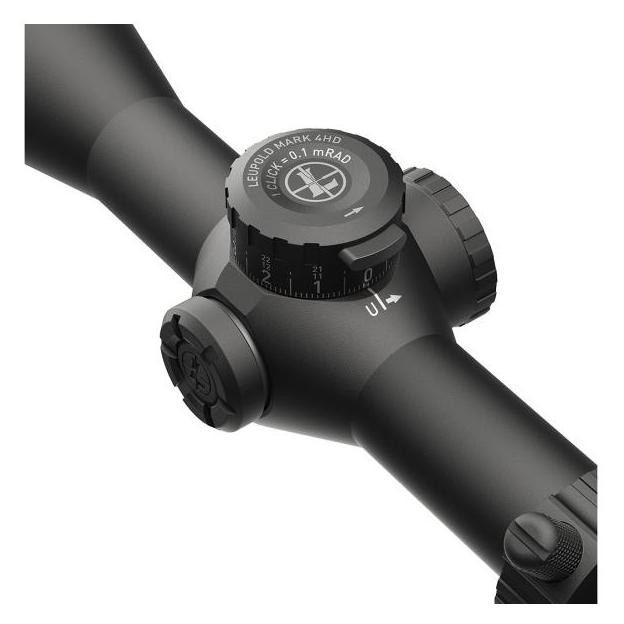

• locking dial helps prevent accidental adjustment changes
• the TMR reticle with 0.5 MIL hash spacing, changing to 0.2 MIL at the outer edges
• electronic reticle level indicates scope cant
• optical design: Professional-Grade Optical System
• waterproof and internally fogproof construction

Included items

• riflescope Leupold Mark 4HD 2.5–10×42 M5C3 FFP Illum. TMR

Technical specifications

• magnification: 2.5–10×
• objective lens diameter: 42 mm
• maintube diameter: 30 mm
• reticle: TMR
• reticle focal plane: first focal plane (FFP)
• reticle illumination: yes
• elevation adjustment mechanism: M5C3
• windage adjustment mechanism: capped
• click value – elevation: 0.1 MIL
• total adjustment range – elevation: 24.7 MIL
• adjustment per revolution – elevation: 10 MIL
• click value – windage: 0.1 MIL
• total adjustment range – windage: 24.7 MIL
• adjustment per revolution – windage: 10 MIL
• elevation dial travel limit: 28.7 MIL
• fixed parallax-free distance: approx. 137.2 m (150 yd)
• field of view at min./max. magnification: approx. 14.07 / 3.67 m / 100 m
• angular field of view at min./max. magnification: 8 / 2.1°
• eye relief at min./max. magnification: approx. 91.4 / 99.1 mm
• battery type: CR2032
• brightness settings: 8
• battery life at low intensity: 1600 hr
• battery life at medium intensity: 1000 hr
• battery life at high intensity: 300 hr
• overall length: approx. 317.5 mm
• total mounting space: approx. 152.4 mm
• front mounting space: approx. 43.2 mm
• rear mounting space: approx. 50.8 mm
• eyepiece assembly length: approx. 83.8 mm
• objective assembly length: approx. 83.8 mm
• objective housing outside diameter: approx. 50.8 mm
• eyepiece housing outside diameter: approx. 45.7 mm
• weight: approx. 610 g

Selecting the magnification and setting the described adjustments lets you adapt the scope to the viewing conditions.
