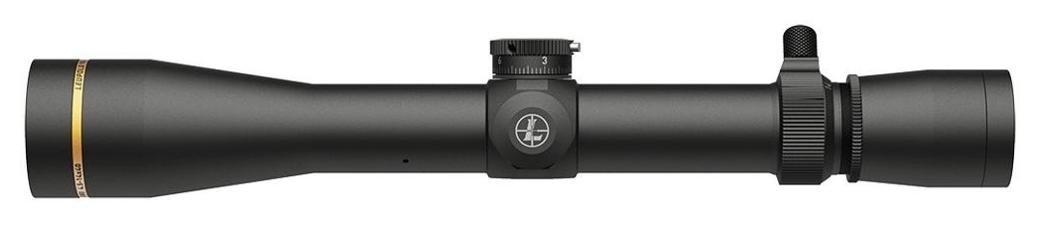

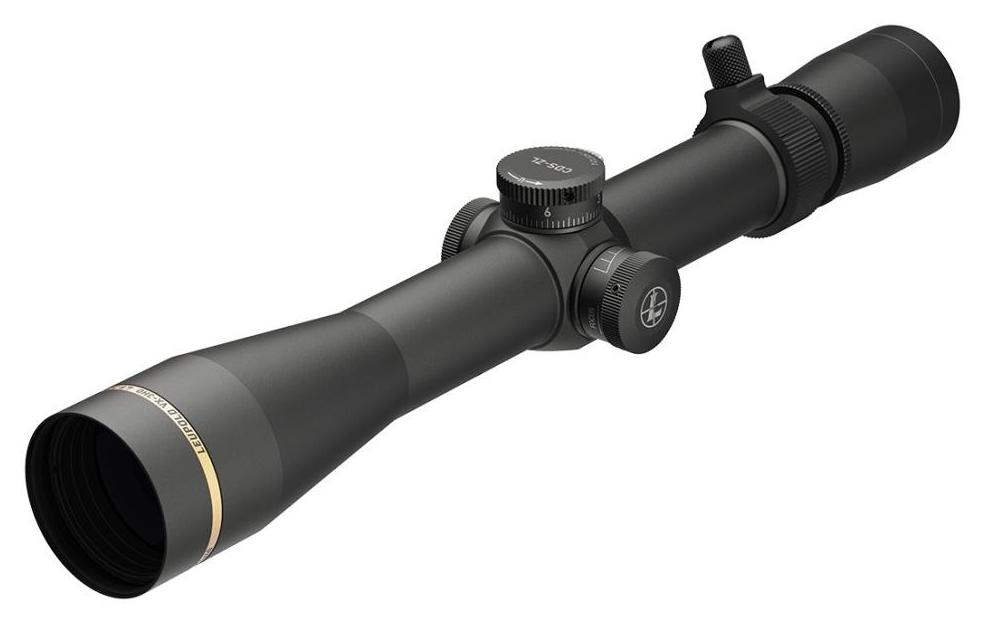

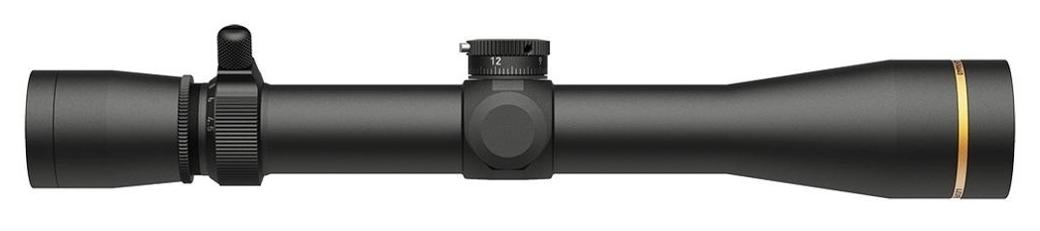

Leupold VX-3HD 4.5-14x40 Side Focus CDS-ZL Wind-Plex Riflescope (SKU: 180623)

Leupold VX-3HD 4.5–14×40 Side Focus CDS-ZL Wind-Plex riflescope (Leupold, SKU: 180623) is a riflescope for sport shooting and field use. Variable magnification lets you adjust the image scale to the distance of the observed target.

Key features

• second focal plane reticle keeps a constant apparent size as magnification changes
• non-illuminated reticle requires no power to display the aiming mark
• locking dial helps prevent accidental adjustment changes
• optical design: Elite Optical System
• waterproof and internally fogproof construction

Included items

• riflescope Leupold VX-3HD 4.5–14×40 Side Focus CDS-ZL Wind-Plex

Technical specifications

• magnification: 4.5–14×
• objective lens diameter: 40 mm
• maintube diameter: 30 mm

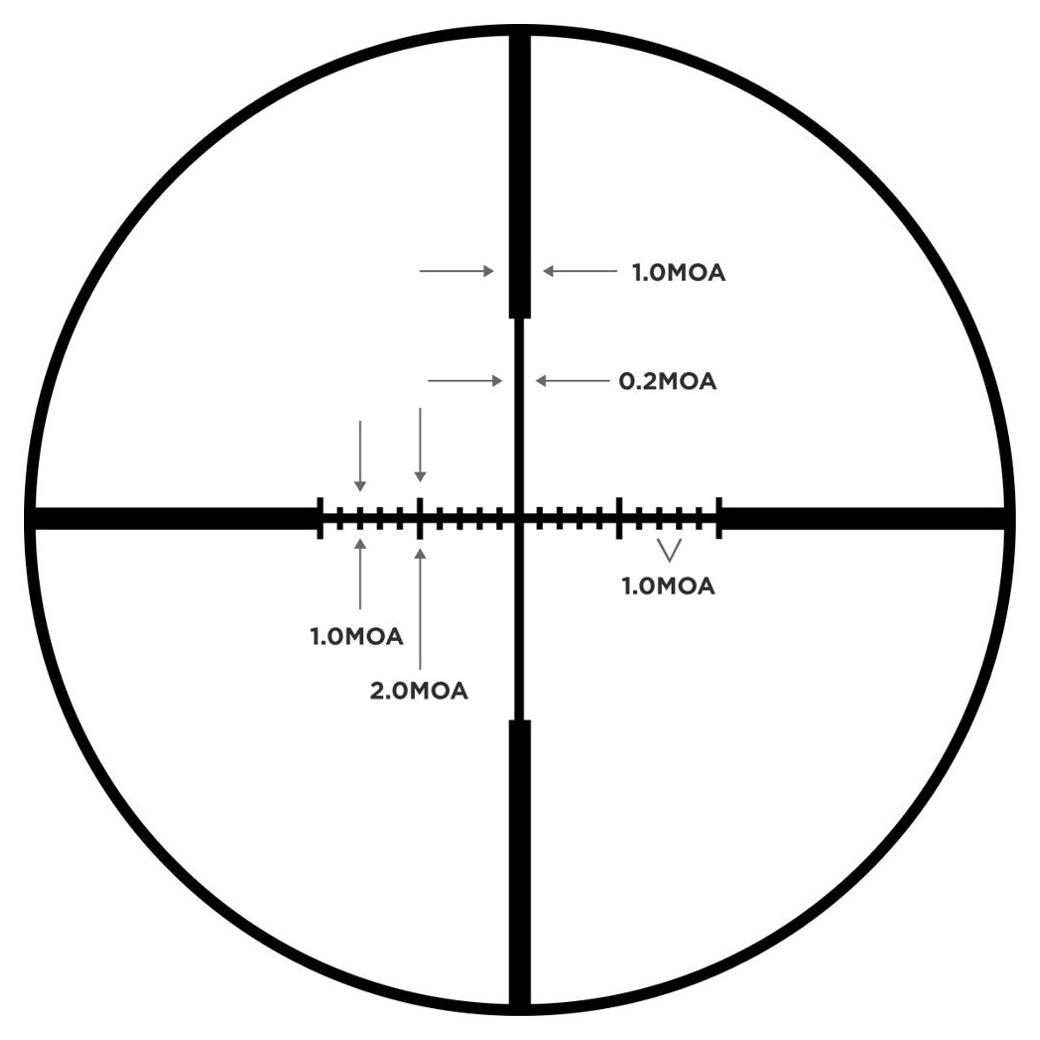

• reticle: Wind-Plex
• reticle focal plane: second focal plane (SFP)
• reticle illumination: no

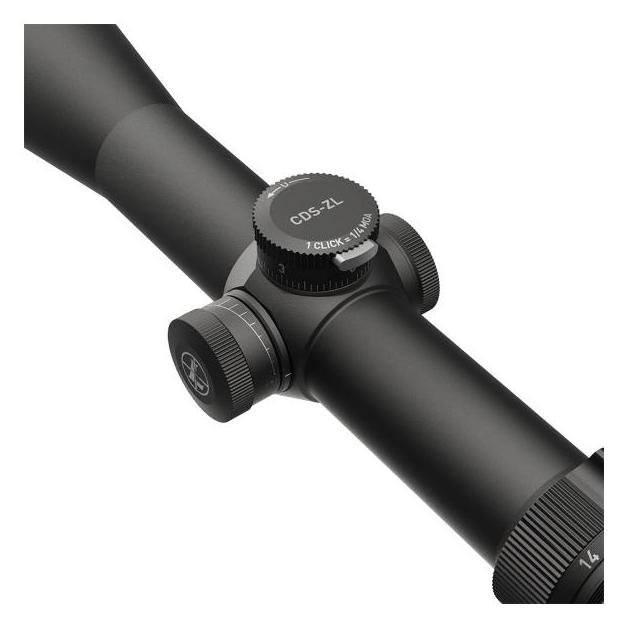

• elevation adjustment mechanism: CDS-ZL
• windage adjustment mechanism: finger-adjustable
• click value – elevation: 1/4 MOA
• total adjustment range – elevation: 95 MOA
• adjustment per revolution – elevation: 15 MOA
• click value – windage: 1/4 MOA
• total adjustment range – windage: 75 MOA
• adjustment per revolution – windage: 15 MOA
• elevation dial travel limit: 14.5 MOA
• field of view at min./max. magnification: approx. 6.63 / 2.47 m / 100 m
• angular field of view at min./max. magnification: 3.8 / 1.4°
• eye relief at min./max. magnification: approx. 111.8 / 91.4 mm
• overall length: approx. 322.3 mm
• total mounting space: approx. 150.9 mm
• front mounting space: approx. 56.9 mm
• rear mounting space: approx. 62.7 mm
• eyepiece assembly length: approx. 79 mm
• objective assembly length: approx. 92.5 mm
• objective housing outside diameter: approx. 46.5 mm
• eyepiece housing outside diameter: approx. 39.6 mm
• weight: approx. 442 g

Selecting the magnification and setting the described adjustments lets you adapt the scope to the viewing conditions.
