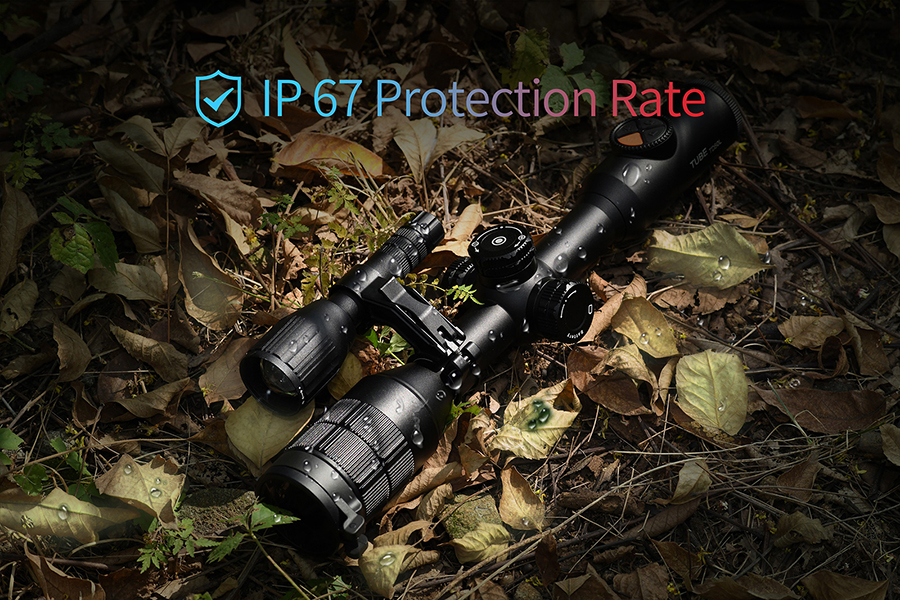

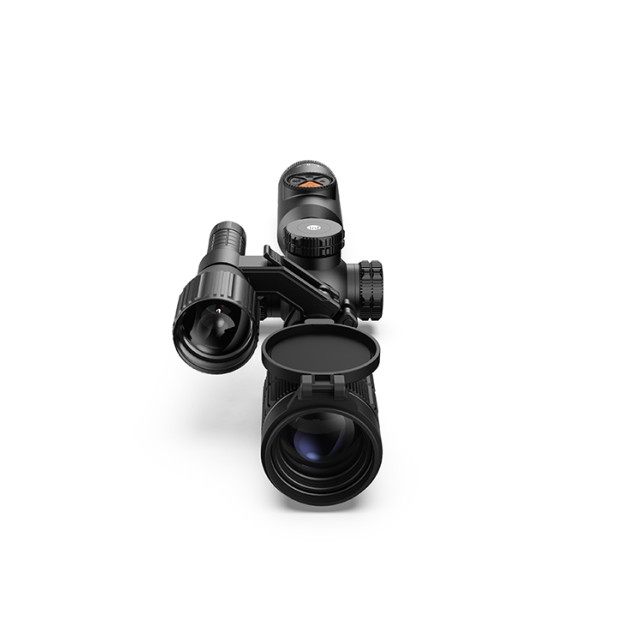

InfiRay Tube-TD50L is a high-performance digital night vision telescope designed in the form of a traditional telescope. The TD50L is the perfect digital night vision optics for demanding hunters seeking classic aesthetics and excellent sensor sensitivity in low light. With an over 13-hour operating time and an IP67 rating, the TD50L can withstand all night long in all hunting conditions.
The TD50L telescope is a combination of a large diameter lens (50mm / F1.2), a low-noise HD CMOS sensor with a resolution of 1440x1080, a high-resolution display, a powerful IR illuminator and an effective image processor.
THREE WORKING MODES
The TDL50 offers three operating modes: Day Mode ( Star Mode ), Moon Mode ( Moon Mode , Star Mode ).
600 METERS RANGE AT NIGHT
TD50L is characterized by perfect target detection up to 600 meters at night thanks to the combination of best-in-class high sensitivity matrix, HD resolution display, wide choice of brightness control and powerful infrared illuminator.

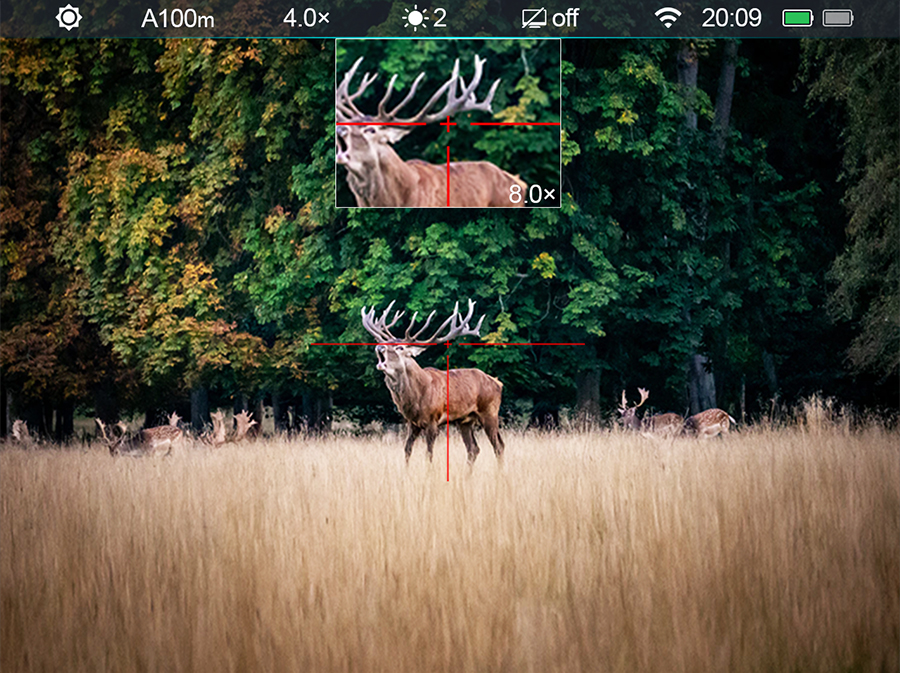

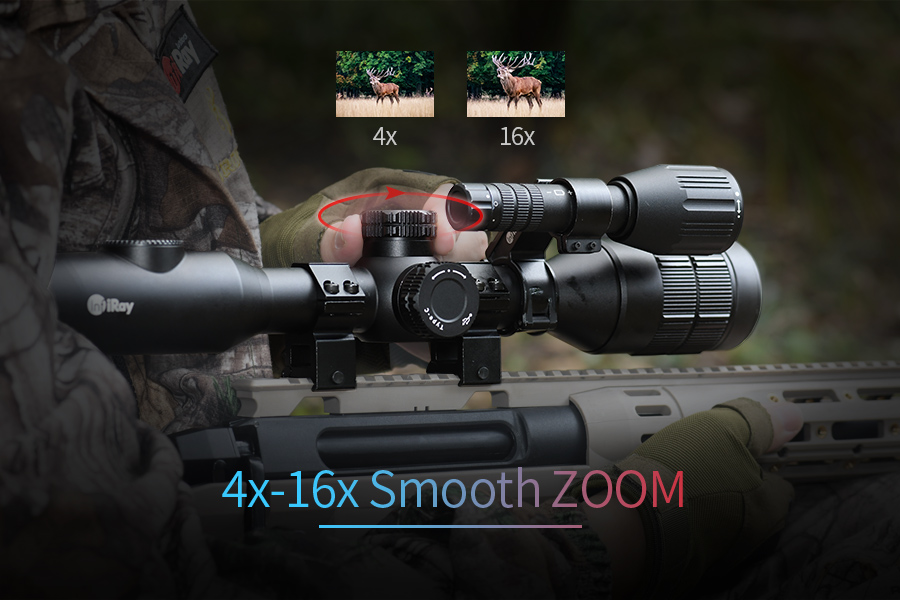

WIDE MAGNIFICATION RANGE (ZOOM) 4-16x
A wide range of smooth zoom adjustment allows you to set the optimal image parameters.

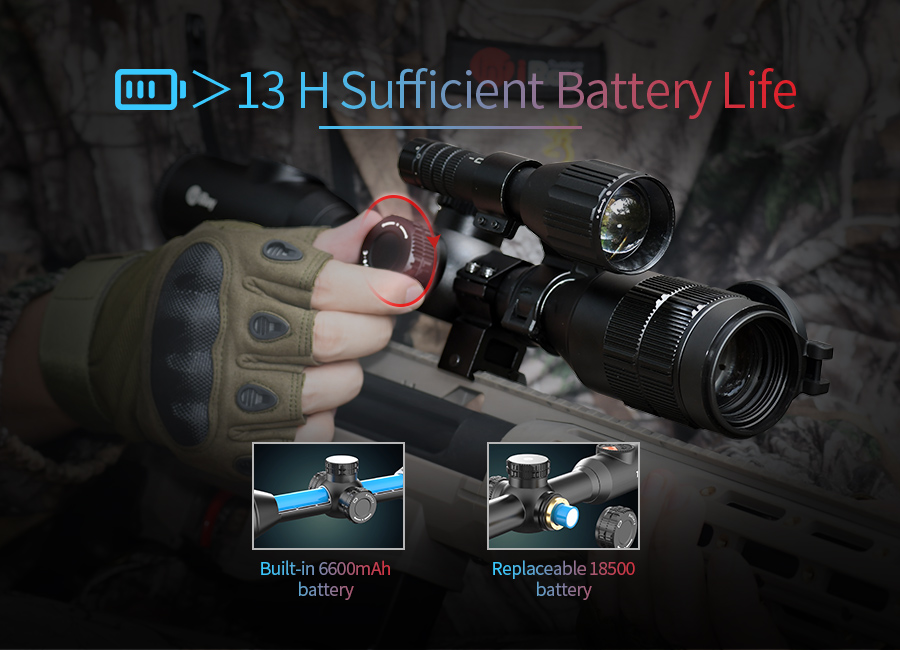

DUAL POWER SYSTEM
TD50L digital riflescopes are powered by two types of batteries: built-in battery ± 6600mAh and a second, replaceable 18500 battery located in the battery compartment. When the battery in the battery compartment is discharged, the telescope automatically switches to the built-in battery. The removable 18500 battery can be removed and replaced in a matter of seconds without turning the bezel off immediately. The power supply system allows for a maximum of 13 hours of uninterrupted operation.
STANDARD TUBUS 30 MM
The tube of the telescope has a diameter of 30 mm - which makes it compatible with standard clamps and mounts.

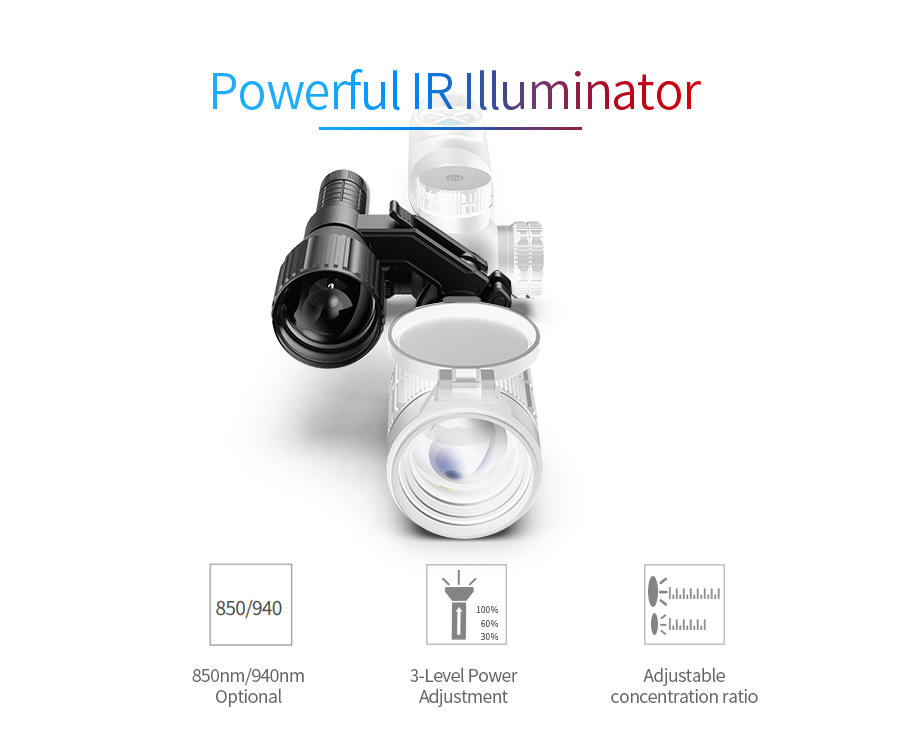

POWERFUL 940 nm IR ILLUMINATOR
In the standard set, the TD50L comes with a powerful IR illuminator λ = 940 nm with a three-stage beam power control and a smooth regulation of its focus.
The manufacturer also offers optional illuminators with a beam of λ = 850 nm.
• matrix / sensor: CMOS 1440x1080 px
• single pixel size: 4x4 µm
• refresh: 50 Hz
• optical magnification: 4x
• digital magnification: 4x
• effective magnification range: 4-16x
• lens: 50 mm F1.2
• angular field of view: 6.6 ° x 4.9 °
• display: 1280 × 960 LCOS
• eye relief : 70 mm
• detection range: 600 m
• IR illuminator: 940 nm included (850 nm optional)
• power supply: built-in 6600 mAh battery + replaceable 18500 battery
• maximum working time (temperature = 22 ° C):> 13 h
• power supply: USB-C 5V
• tube / assembly standard: 30 mm
• WiFi communication: yes, the InfiRay Outdoor application
• built-in memory: 16 GB
• maximum recoil force of a rifle: 1000 g / s ^ 2
• IP protection class (IEC60529): IP67
• dimensions: 395 x 85 x 75 mm
• weight: approx. 1000 g (without replaceable 18650 battery)
24 months (manufacturer's warranty)
