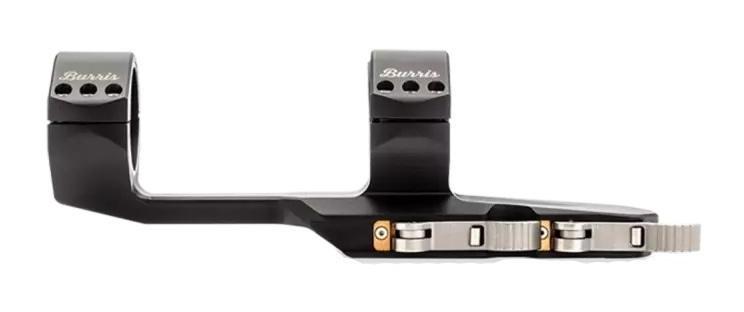

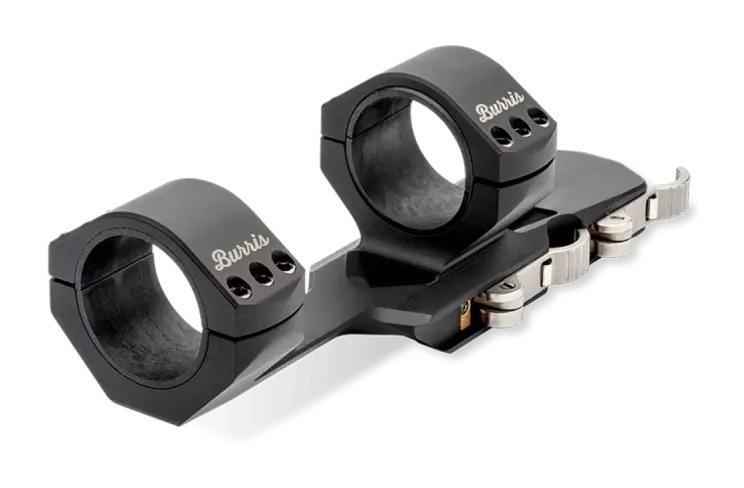

Burris AR-Signature QD P.E.P.R. 30mm mount (SKU: 410352) is a one-piece cantilever mount designed for riflescopes with a 30mm main tube. The P.E.P.R. — Proper Eye Position Ready — design moves the scope forward, facilitating correct eye relief on AR platforms and firearms equipped with a Picatinny or Weaver rail. The QD quick-detach mechanism allows the optic to be removed and reinstalled while maintaining the point of impact within 1/4 MOA.

Key features

• one-piece cantilever design intended for AR platforms and firearms with a flat-top mounting rail
• compatible with riflescopes featuring a 30mm main tube
• compatible with Picatinny and Weaver rails
• QD quick installation and removal mechanism
• maintains the point of impact after reinstallation within 1/4 MOA
• P.E.P.R. design positioning the scope forward to provide correct eye relief
• allows the use of backup iron sights
• Burris Signature polymer inserts providing secure contact with the scope tube
• protects the scope tube surface against scratching and ring damage
• allows 5 to 40 MOA of correction without using the scope's internal adjustment range
• allows cant and alignment corrections through appropriate insert positioning
• optical axis height of approximately 38.1mm above the rail
• recommended ring top screw torque of 20in-lb
• matte black finish

Included components

• Burris AR-Signature QD P.E.P.R. 30mm mount
• one set of symmetrical zero inserts
• one set of +5 / -5 correction inserts
• one set of +10 / -10 correction inserts
• two sets of +20 / -20 correction inserts

Technical specifications

• manufacturer: Burris
• series: AR-Signature QD P.E.P.R.
• type: one-piece cantilever mount
• riflescope tube diameter: 30mm
• mounting rail standard: Picatinny / Weaver
• mounting system: Quick Detach
• return-to-zero accuracy: 1/4 MOA
• insert adjustment range: 5–40 MOA
• optical axis height above the rail: approximately 38.1mm / 1.5″
• overall length: approximately 127mm / 5″
• mounting base length: approximately 87.6mm / 3.45″
• recommended ring top screw torque: 2.26Nm / 20in-lb
• weight: approximately 293g
• colour: matte black
• manufacturer's warranty: Burris Signature Warranty
• SKU: 410352

Burris AR-Signature QD P.E.P.R. 30mm enables stable riflescope installation while maintaining a comfortable eye position and allowing the optic to be removed quickly. The included inserts make it possible to correct scope alignment and obtain up to 40 MOA of additional cant without restricting its internal adjustment range, which is particularly useful when preparing a setup for shooting at longer distances.
