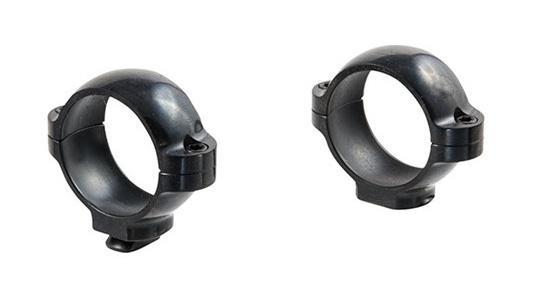

Burris Signature 30mm Medium Universal Dovetail scope rings (SKU: 420578) are a set of steel rings designed to mount a riflescope with a 30mm main tube on a Universal Dovetail base. The Pos-Align inserts centre the tube inside the rings, increase the contact area and protect the riflescope finish against damage. The included correction inserts also allow minor base and ring alignment errors to be compensated for without using the riflescope's internal adjustment range.

Key features

• set of two rings for riflescopes with a 30mm main tube
• Medium mounting height
• attachment to Universal Dovetail bases
• solid steel construction providing high durability
• Pos-Align inserts ensuring correct tube centring
• increased contact area between the tube and rings
• protection of the riflescope surface against scratching and deformation
• ability to correct minor mounting alignment errors
• correction inserts allowing preliminary riflescope alignment without excessive use of turret adjustment
• tube axis height of approximately 19.8mm above the base
• matte finish reducing unwanted reflections
• construction intended for use in varied field conditions

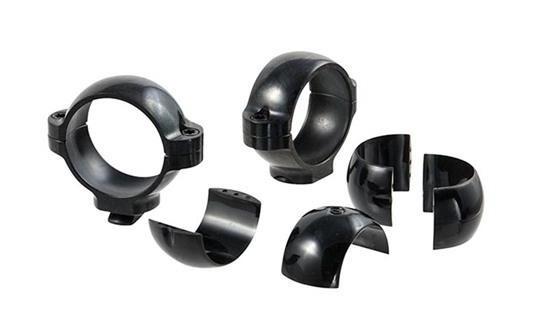

Included components

• two Burris Signature 30mm Medium Universal Dovetail scope rings
• two sets of symmetrical Pos-Align zero inserts
• two sets of +10 / -10 Pos-Align correction inserts with ±0.010″ offset

Technical specifications

• manufacturer: Burris
• series: Signature Rings
• type: riflescope mounting rings
• number of rings: 2
• riflescope tube diameter: 30mm
• base standard: Universal Dovetail
• height: Medium
• tube axis height above the base: approximately 19.8mm / 0.78″
• material: steel
• insert system: Pos-Align
• correction insert offset: ±0.010″
• finish: matte
• recommended ring top screw torque: 2.26Nm / 20in-lb
• recommended ring mounting screw torque: 3.39Nm / 30in-lb
• manufacturer's warranty: Burris Signature Warranty
• SKU: 420578

Burris Signature 30mm Medium Universal Dovetail rings provide stable riflescope installation without direct pressure from steel components on its main tube. The Pos-Align system helps align the optic correctly with the firearm, protects its surface and preserves more of its internal adjustment range for applying corrections during use.
