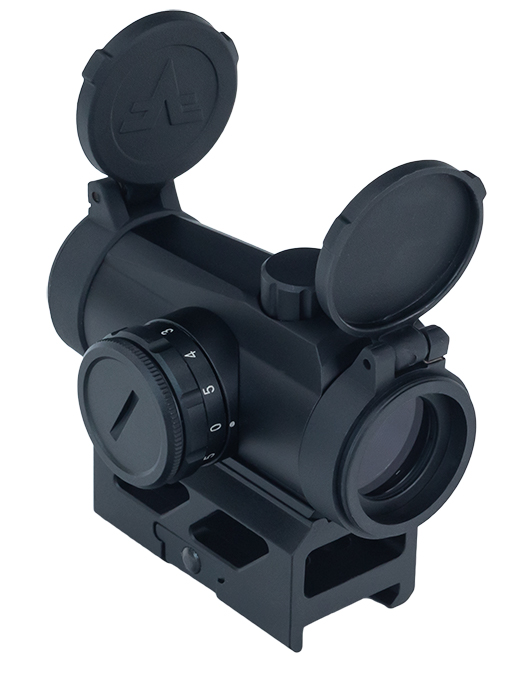

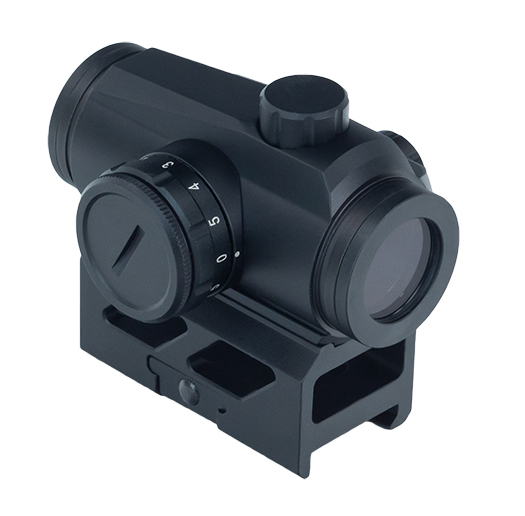

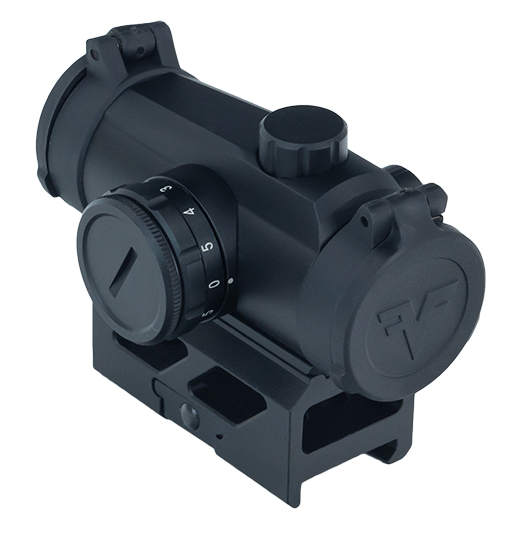

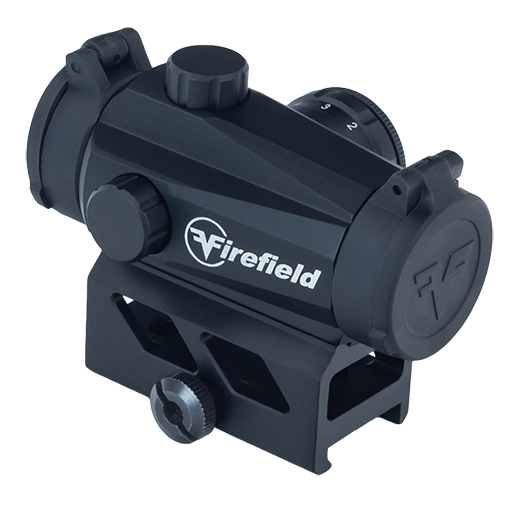

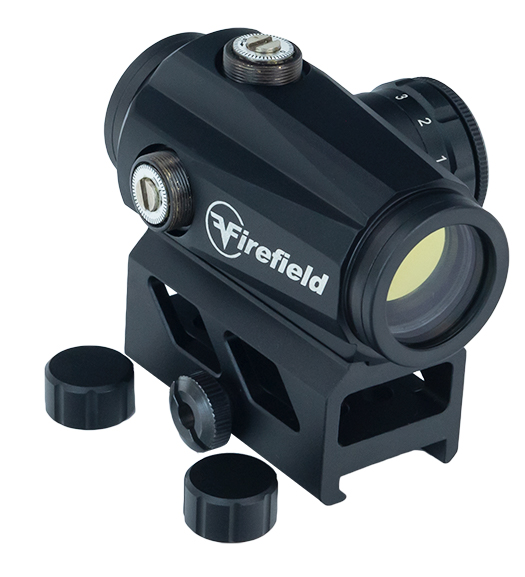

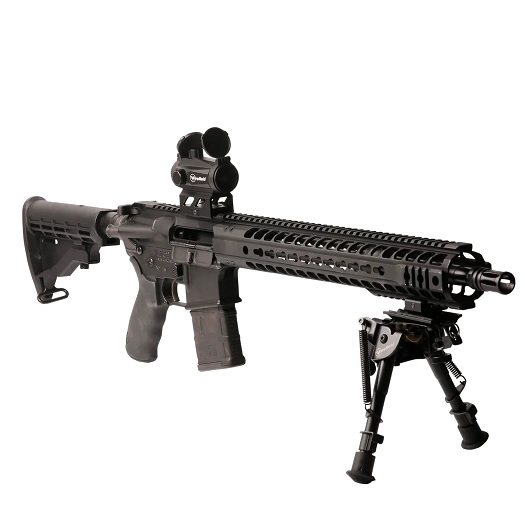

FireField Impulse 1x22 is a closed collimator for sports shooting with AR rifles, characterized by uncompromising quality despite an extremely attractive price.

The collimator is equipped with an optical system with 1x magnification made of carefully selected optical glass covered with anti-reflective coatings. To facilitate quick targeting, the product has a Circle Dot reticle scaled in minutes of arc (MOA). The aiming reticle can be adjusted to the individual preferences of the shooter thanks to the ability to select the illumination color and its intensity.

The collimator tube is made of a durable aluminum alloy using technology that guarantees increased resistance to shocks and recoil. In addition to increased mechanical strength, the housing has an IPX5 waterproof certificate, guaranteeing resistance to the most unfavorable weather conditions.

The most important features of the FireField Impulse 1x22 Compact collimator

• zero parallax optics at a distance of 18 meters
• lenses covered with anti-reflective coatings (AR)
• Circle Dot targeting reticle facilitating quick targeting
• adjustable grid illumination with the ability to choose red or green
• waterproof tube with increased mechanical resistance made of a durable aluminum alloy

Technical parameters

• sight type: closed collimator
• magnification: 1x
• Lens diameter: 22 mm
• lens material: optical glass
• exit pupil offset: unlimited
• parallax setting: no parallax at a distance of 18 m / 20 yds
• optical system coating: anti-reflective coating (AR)

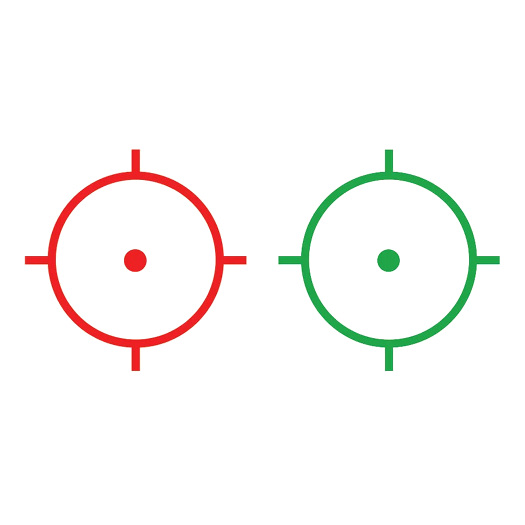

• aiming reticle: Circle Dot (MOA)
• center point size: 2 MOA
• circle thickness: 2 MOA
• Circle diameter: 30 MOA
• grid illumination color: red / green
• grid illumination intensity adjustment: five levels
• airflow adjustment range (max): 120 MOA
• airflow adjustment range (1 click): 1 MOA
• height adjustment range: 120 MOA
• height adjustment range (1 click): 1 MOA
• waterproof: yes, IPX5
• shock resistance: yes
• fog resistance: yes
• maximum caliber: .308
• power supply: CR2032 battery, 3 V
• battery life: 15 ÷ 240 h (depending on the backlight intensity)
• tube material: aluminum
• tube finish: matte black

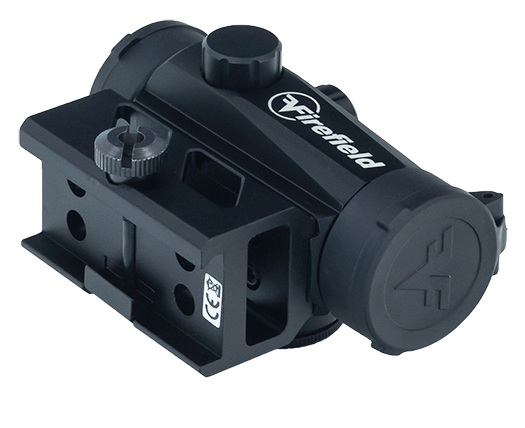

• mounting: Weaver / Picatinny / 22 mm rail
• dimensions: 90 x 58 x 71 mm
• weight: 213 g

Set elements

• FireField Impulse 1x22 Compact collimator
• CR2032 battery
• cap for the eyepiece and lens
• documentation

Guarantee

36 months
