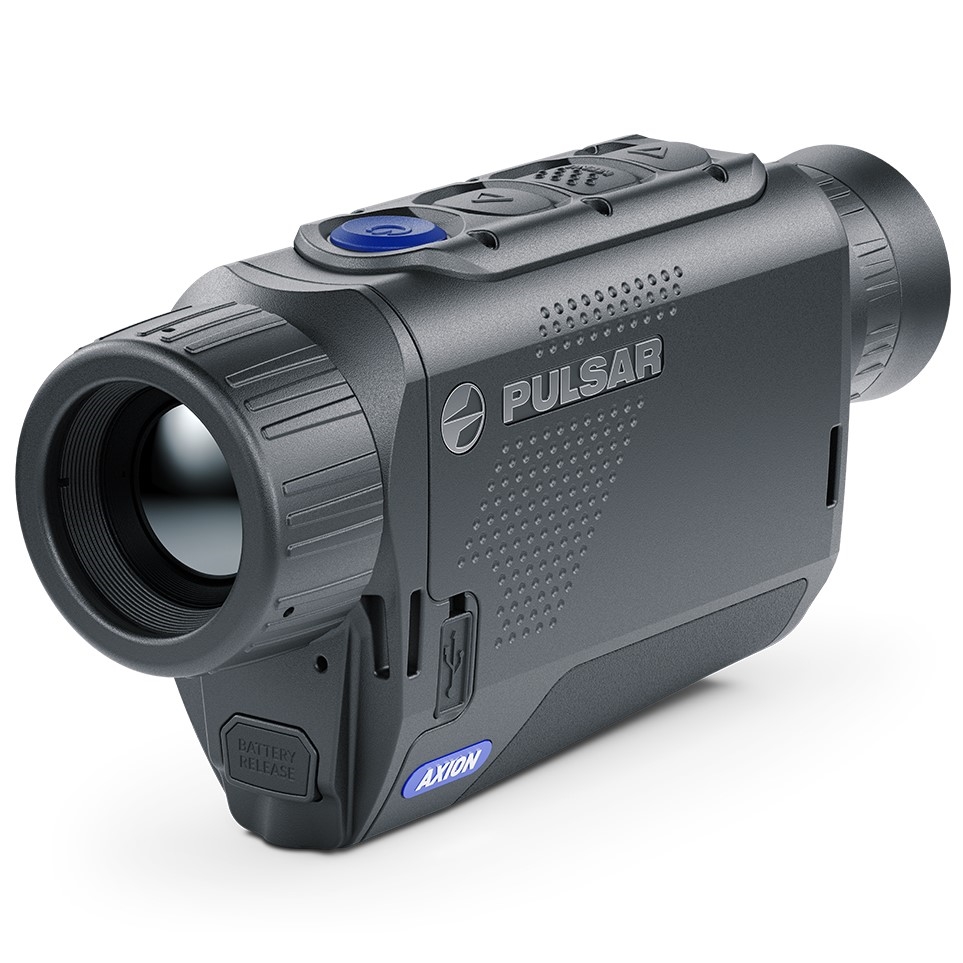

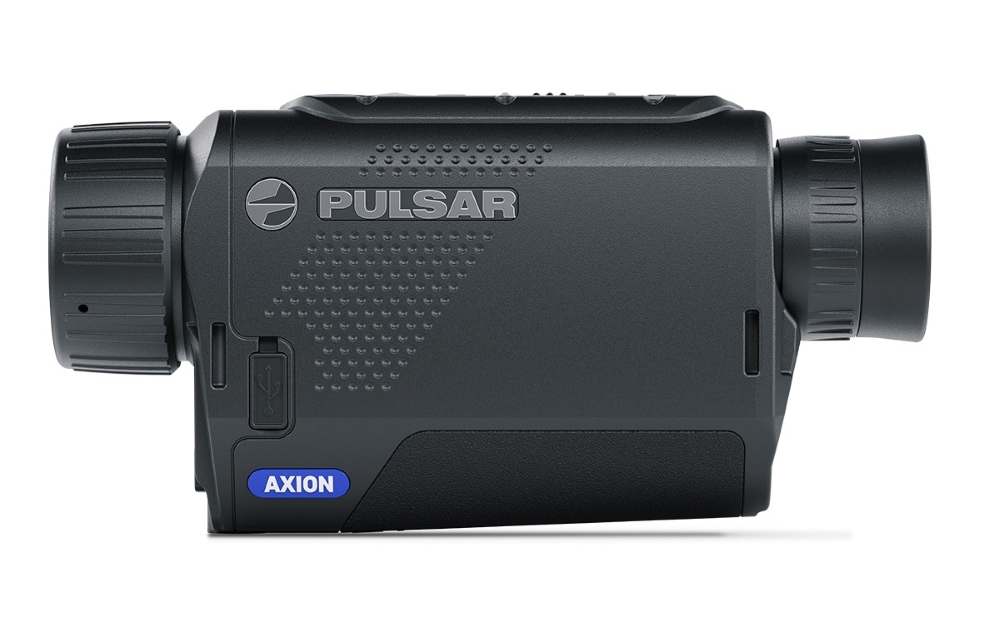

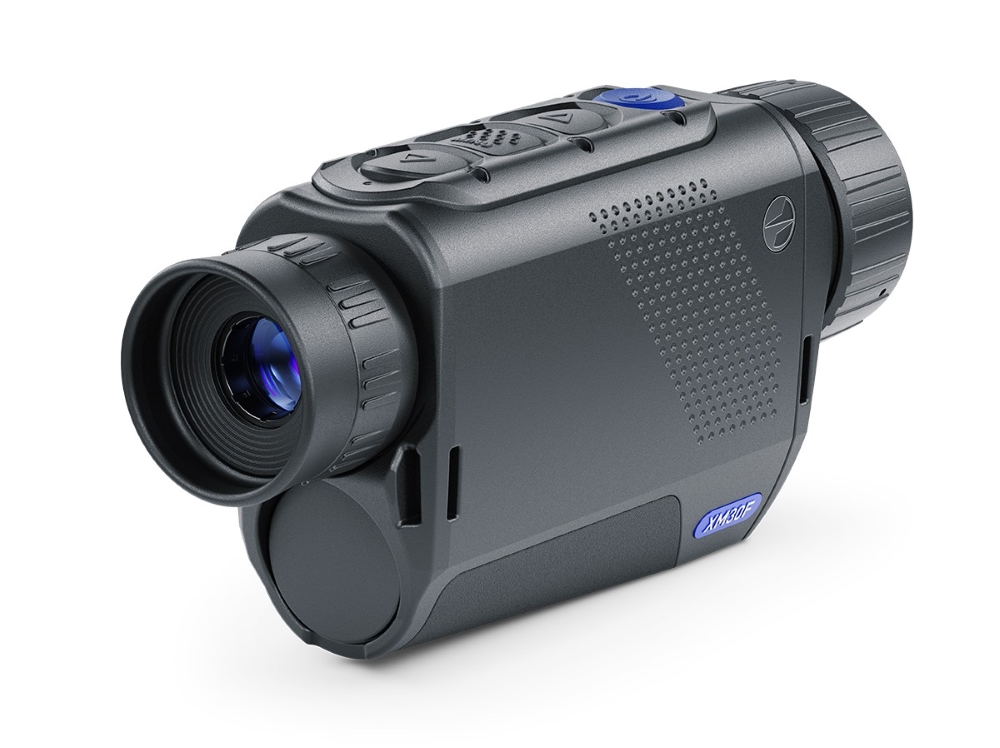

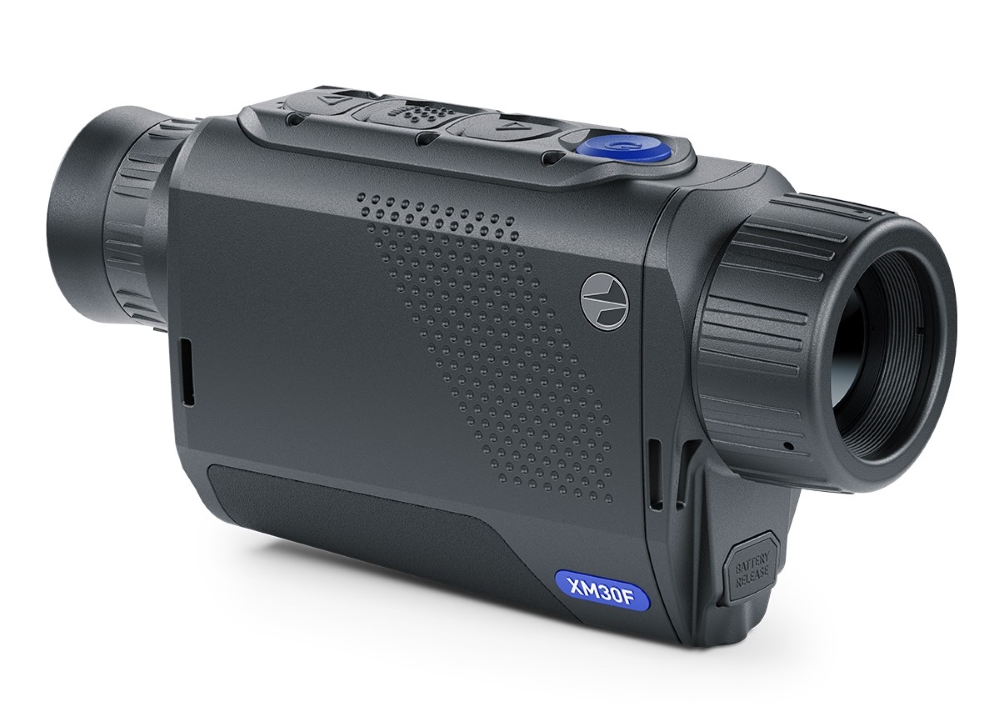

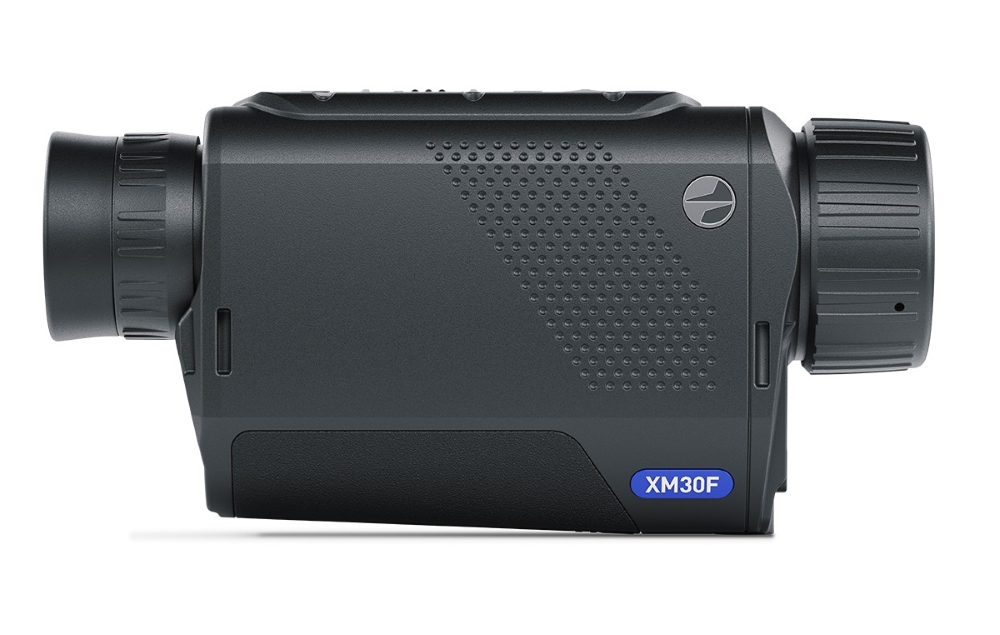

Pulsar Axion XM30F is a miniature, pocket-sized thermal imager which, despite its small size, offers its users parameters that put it at the forefront of professional thermal imaging devices.
The thermal imager is equipped with a lens with a focal length of 30 mm and a light intensity of f/1.2, as well as an uncooled microbolometer sensor with a resolution of 320 x 240 pixels and a thermal sensitivity of 50 mK. The signal obtained through it is displayed on a screen made in AMOLED technology with a resolution of 640 x 400 px. The device is powered by an APS 3 lithium-ion battery with a capacity of 3200 mAh, which enables continuous operation for 7 hours.
The Pulsar Axion XM30F allows you to save both photos and movies. For this purpose, the internal memory with a capacity of 16 GB is at the user's disposal. The device is equipped with a WiFi module operating in the 2.4 and 5 GHz range, thanks to which it can wirelessly connect to smartphones and tablets with the Stream Vision 2 application.
The device has been enclosed in a durable housing made of a magnesium alloy. The body has also been additionally sealed, thanks to which it meets the requirements of the IPX7 standard, thus withstanding a 30-minute immersion in water at a depth of 1 meter.
Attention! The Pulsar Axion XM30F thermal imager does not have a connector for attaching it to a photographic tripod.
• microbolometer sensor with a resolution of 320 x 240 px and a NETD sensitivity of less than 50 mK
• AMOLED display with PIP function and the ability to choose from eight color palettes
• detection range of 1300 m for an object the size of a deer
• built-in memory with a capacity of 16 GB
• up to 7 hours of continuous use with APS 3 battery
• waterproof housing made of magnesium alloy
• sensor type: bolometric, uncooled
• sensor resolution: 320 x 240 px
• refresh rate: 50 Hz
• Pixel diameter: 12 µm
• NETD: <50mK
• lens: 30mm
• light: f/1.2
• optical magnification: 3x
• digital zoom: 1x, 2x, 4x
• angular field of view: 7.8 x 5.9°
• linear field of view: 13.7 m @ 100 m
• dioptric adjustment range: -4 ÷ +5 D
• minimum focusing distance: 3 m
• detection range: 1300 m
• display type: AMOLED
• display resolution: 640 x 400 px
• built-in memory: 16 GB
• the ability to record movies: yes
• video material resolution: 528 x 400 px
• video recording format: .mp4
• the ability to save photos: yes
• photo resolution: 528 x 400 px
• photo saving format: .jpg
• built-in WiFi module: yes
• WiFi operating frequency: 2.4 GHz, 5 GHz
• WiFi network standard: IEEE 802.11 b/g/n/ac
• menu in Polish: yes
• cooperation with a mobile application: yes, Stream Vision 2
• built-in rangefinder: yes, stadiametric
• picture-in-picture (PIP): yes
• power supply: APS 3 battery
• maximum battery life: 7 hours
• charging: 5V DC, microUSB
• body material: magnesium alloy
• waterproof: yes, IPX7
• operating temperature range: -25 ÷ 40°C
• dimensions: 144 x 40 x 69 mm
• weight (without batteries): 0.25 kg
• Pulsar Axion XM30F thermal imager
• APS 3 battery
• USB cable
• charger
• Optics cleaning cloth
• wrist strap
• lens cap
• transport cover
• documentation
36 months
