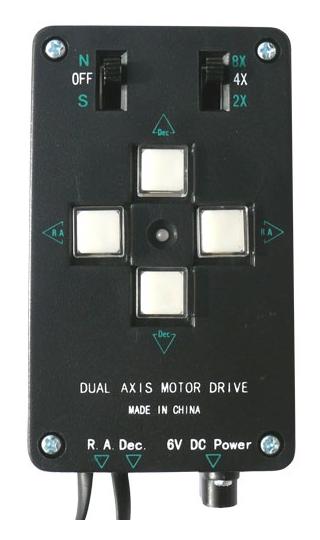

Sky-Watcher Hand Controller for EQ3-2 Dual-Axis Motor Drive (Sky-Watcher, SKU: SW-4313) is a controller for the standard motor drive of the EQ3-2 mount. It provides tracking of the night sky and manual adjustments to the telescope position. This is the hand controller only, for use with the matching motor drive.
Key features
• automatic sidereal tracking on the RA axis • manual position adjustments on the RA and DEC axes • selection of the northern or southern hemisphere and motor drive power on/off
Included items
• hand controller for the EQ3-2 dual-axis motor drive
Technical specifications
• compatibility: standard Sky-Watcher EQ3-2 dual-axis motor drive • controlled axes: right ascension (RA) and declination (DEC) • tracking rate: sidereal, 1× • operation of the DEC axis: adjustments using the buttons; automatic tracking takes place on the RA axis • adjustment speed settings: 2×, 4× and 8× • motor drive connection: RJ-11 connectors • motor drive system power supply: 6 V DC • automatic GoTo positioning: no • autoguiding port (ST-4): no
The hand controller operates the matching mount drive and adjusts the position of the observed object without using the manual slow-motion knobs.
