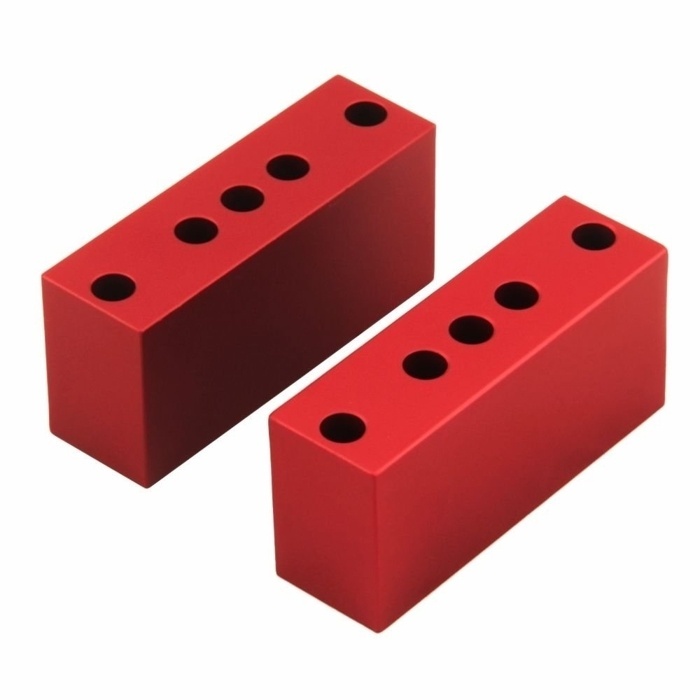

PLUS 30 mm spacers (PrimaLuceLab, SKU: PLLSPES30 ) are spacers that allow you to increase the distance between two elements of the PLUS mechanical system by exactly 30 mm . They are used when the telescope, guide or accessories are too close to each other and there is a risk of collision. While maintaining the full geometry of the PLUS holes, the spacers can be inserted between any components - from mounting rails to clamps - without losing the possibility of further expansion.

Key Features of 30mm Spacers

• increase the distance between the PLUS system elements by 30 mm
• 4 mounting holes : 20 mm spacing (Vixen rails/guide clamps) and 55 mm (Losmandy rails/main clamps)
• compatible M6 threads – just use appropriately long screws
• 6061-T6 aluminum body, CNC milled and hard anodized red
• bevelled edges and engraved raster – easy installation, no sharp edges
• low weight while maintaining high stiffness

Set components

• 2 × PLUS spacer 30 mm
• 4 × screw M6 × 45 mm (stainless steel)

Technical parameters

• spacer height: 30 mm
• mounting holes: 4 × Ø6.5 mm with M6 thread
• hole spacing: 20 mm and 55 mm
• material: 6061-T6 aluminum, hard anodized
• weight (1 spacer): 38 g
• compatibility: all PLUS system rails, clamps and accessories
• manufacturer: PrimaLuceLab – Italy

When parallel-mounted instruments begin to touch each other, PLUS 30 mm spacers quickly solve the problem by adding the necessary space without compromising the stiffness and modularity of the setup.
