The Side-by-Side Losmandy plate 240 mm PLUS (PrimaLuceLab, SKU: PLLPDLOS240P ) is a compact kit for parallel mounting of two instruments on a mount equipped with a Losmandy D clamp. The package combines a Losmandy PLUS 240 mm rail with two Vixen clamps + Losmandy clamp PLUS (PLLMORVLP), thus accepting both 100 mm (Losmandy D) and 45 mm (Vixen/GP) dovetails. Ideal for telescope + guider setups or two lightweight refractors.

The most important features of the set

• 240 mm Losmandy D standard rail – compatible with EQ8, CGX-L, GM2000, AZ-EQ6 (with Losmandy adapter) and other terminals
• two Vixen + Losmandy PLUS clamps – secure grip of 100 mm and 45 mm dovetails, possibility of connecting different instruments
• PLUS system: Ø6.5 mm holes and M6 threads every 55 mm – easy movement of clamps and installation of additional accessories (EAGLE, guide clamps, parallel plates)
• 6061-T6 aluminum, CNC milled, hard anodized – high stiffness and durability
• bevelled contact edges – smooth insertion of the board into the mounting clamp without scratches

Set components

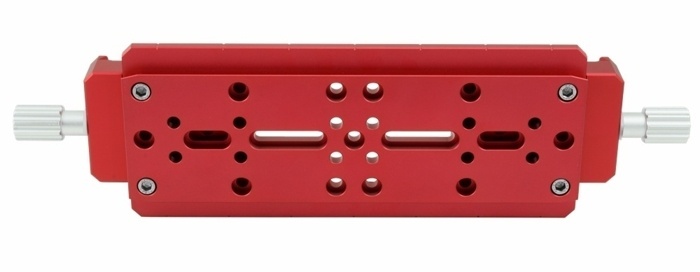

• Losmandy PLUS rail 240 mm (PLLLOS240P)
• 2 × Vixen + Losmandy clamp PLUS (PLLMORVLP)

Technical parameters

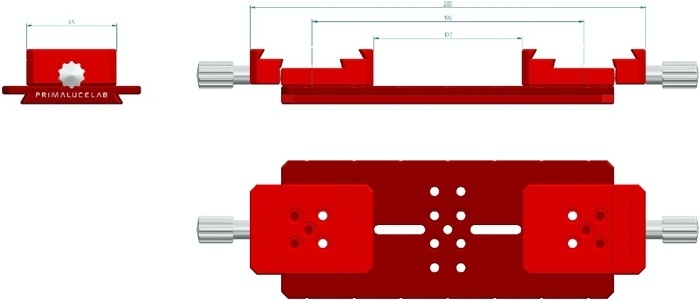

• rail length: 240 mm • width: 100 mm (Losmandy D)
• profile thickness: 13 mm • PLUS hole spacing: 55 mm, M6 threads + Ø6.5 mm holes
• dimensions of one clamp: 90 × 60 × 20 mm • jaw width: 100 mm
• material: aluminum 6061-T6, hard anodized (red PL)
• set weight: approx. 1.2 kg
• dovetail compatibility: Losmandy D (100 mm) and Vixen/GP (45 mm)
• manufacturer: PrimaLuceLab – Italy

The Losmandy PLUS 240 mm Side-by-Side is a lightweight, yet rigid solution for mobile astrophotography setups where the ability to simultaneously carry and photograph or work with two telescopes while maintaining the modularity of the PLUS system is important.
