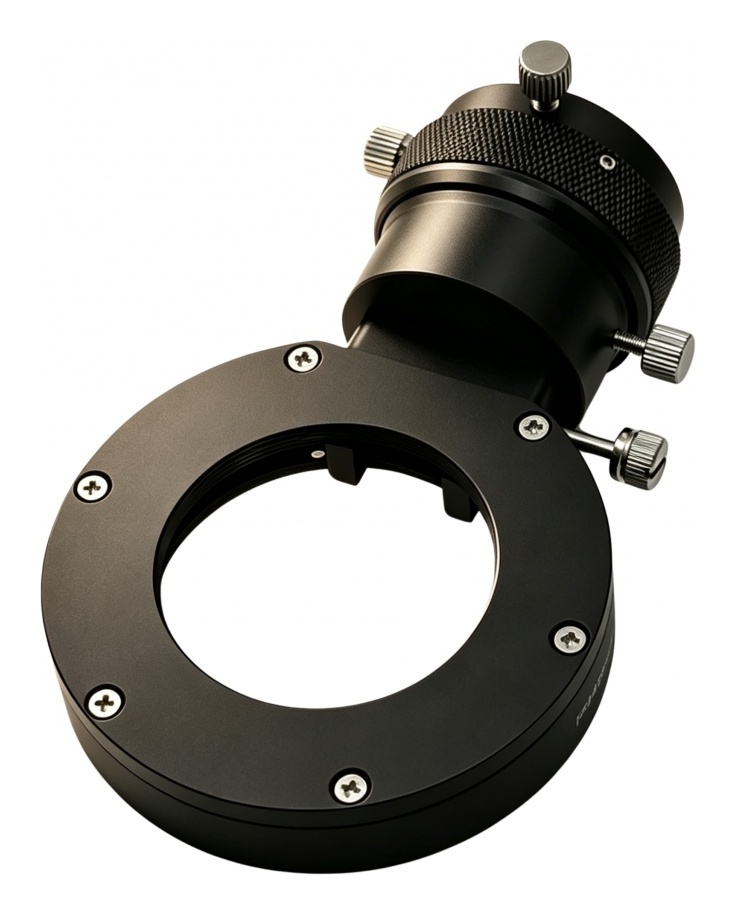

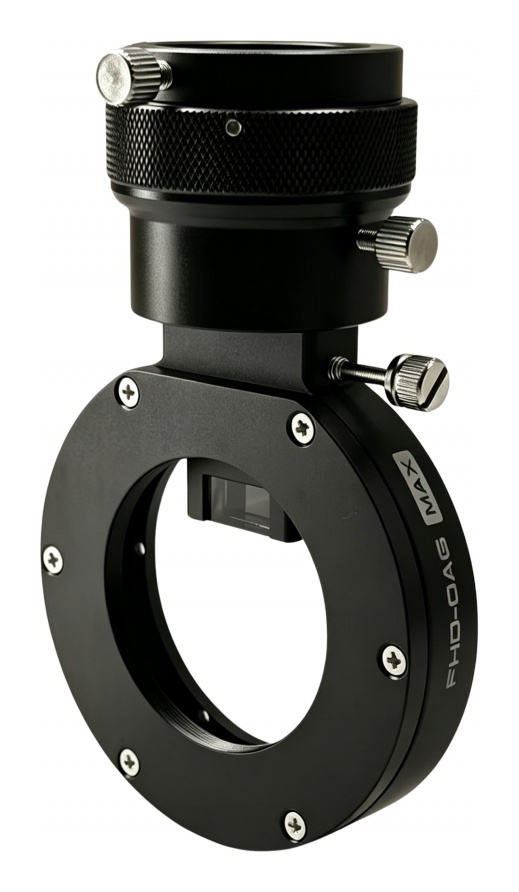

Player One FHD-OAG MAX Off-Axis Guider – new version (SKU: OAG-MAX-2) enables autoguiding through the main telescope. An 8 × 14 mm prism directs some light from the edge of the beam to the guide camera, allowing the imaging setup to be guided without a separate guide scope. This model is designed for configurations with Player One cameras from the Poseidon, Zeus and Artemis series.

In the new version, the maximum diameter of the helical focuser housing has been reduced from 53 to 46 mm, making installation easier in setups with limited space between accessories. The revised construction reduces stray light intrusion, while the lower rotational resistance of the focuser makes manual guide camera focusing easier.

Key features

• guiding through the main telescope without an additional guide scope
• rectangular 8 × 14 mm prism with position adjustment and locking
• helical 1.25" focuser for guide camera focusing
• narrower focuser housing with a maximum diameter of 46 mm
• improved protection against stray light
• optical length of 17.5 mm
• M48 and M54 front plates and an adapter to M42 included

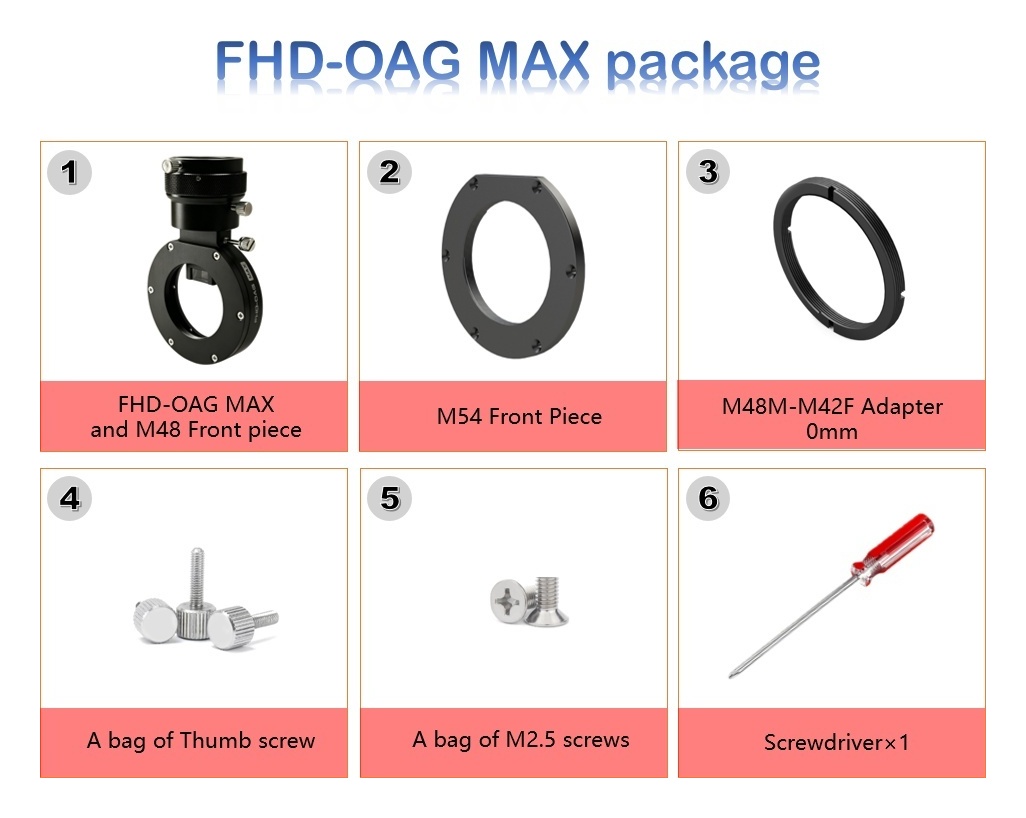

Set contents

• Player One FHD-OAG MAX off-axis guider, new version, with a 1.25" helical focuser and an M48 front plate
• interchangeable M54 front plate
• adapter M48M–M42F with an optical length of 0 mm
• set of thumbscrews
• set of M2.5 screws
• screwdriver

Technical specifications

• manufacturer: Player One Astronomy
• product code (SKU): OAG-MAX-2
• type: off-axis guider (OAG)
• prism dimensions: 8 × 14 mm
• prism position adjustment: with a locking screw
• optical length: 17.5 mm
• guide camera connection: 1.25" push-fit
• guide camera focusing: manual, via a helical focuser
• maximum outside diameter of the focuser housing: 46 mm
• main body diameter: 80 mm
• telescope-side connection with the M48 plate: M48 × 0.75, female
• telescope-side connection with the M54 plate: M54 × 0.75, female
• telescope-side connection using the included adapter: T2 (M42 × 0.75), female
• optional telescope-side connection: M68 × 1, via an adapter sold separately
• connection to a compatible filter wheel or filter drawer: screw-fastened
• recommended main camera series: Player One Poseidon, Zeus and Artemis
• compatible Player One filter wheels: Phoenix Wheel 7 × 36 mm, 5 × 2" and 7 × 2"
• compatible Player One filter drawer: Filter Drawer MAX
• body material: 6061-T6 aluminium

The guide camera, main camera, filter wheel and filter drawer are not included in the set.
