ZWO Fan for cooled / pro cameras 40 mm (SKU: ZWO-FAN)

ZWO FAN 40 mm replacement fan for compatible cooled ASI cameras (ZWO, SKU: ZWO FAN). The ZWO FAN is a replacement fan for compatible ZWO ASI cameras with thermoelectric cooling that use a 40 mm fan. It replaces a damaged or worn fan. Four screws secure it inside the housing, and its power leads terminate in a connector for the compatible camera socket. The fan must match the camera model and version: this variant does not replace the FAN50 and is not intended for the Air series or new versions with a sandblasted housing.

Key features

• replacement part for compatible cooled ASI cameras
• four-screw attachment
• leads with a dedicated power connector
• kit with a protective grille and mounting hardware

Included items

• replacement fan: ZWO FAN 40 mm
• set of screws and washers
• protective grille

Technical specifications

• model: ZWO FAN

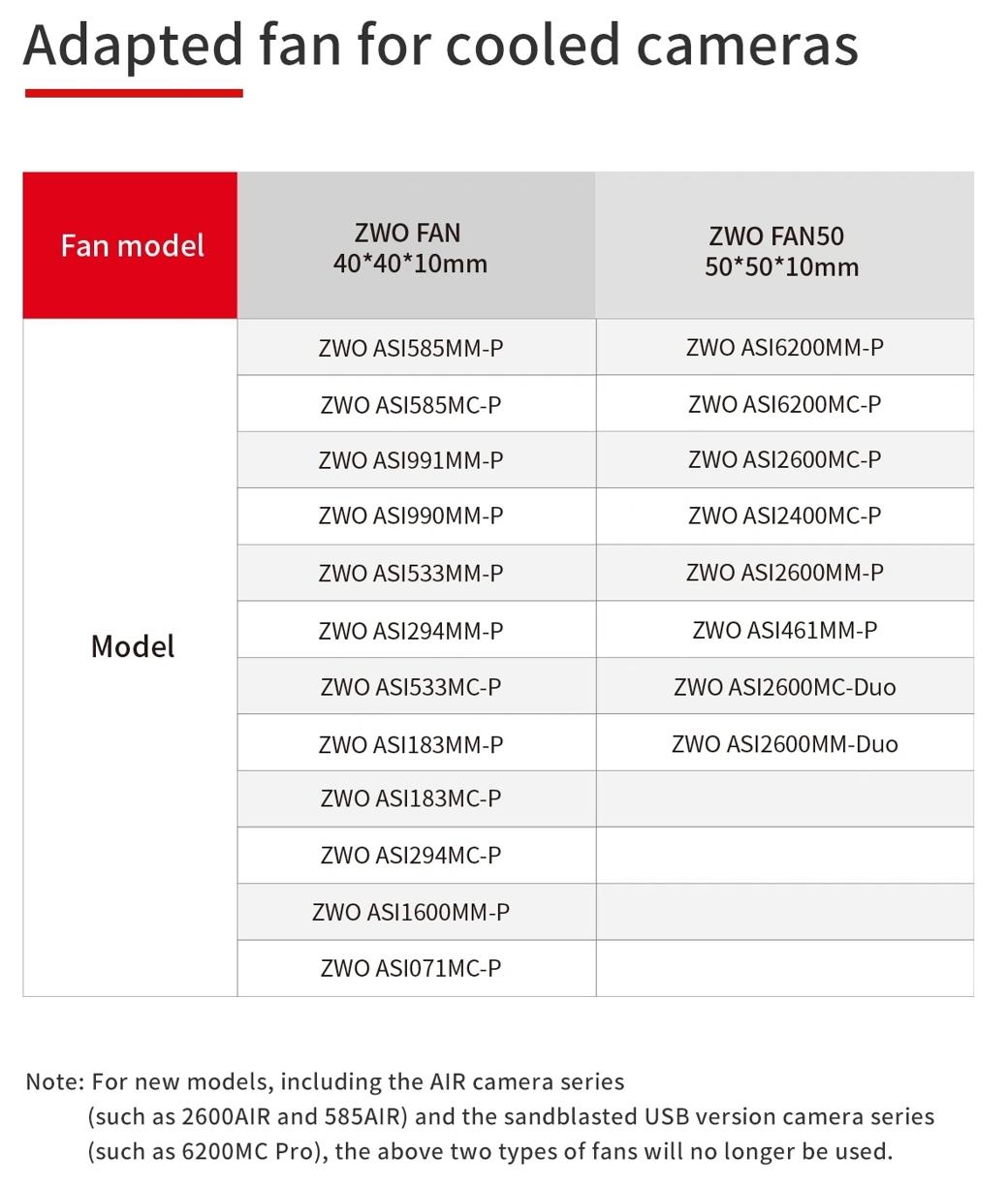

• compatible models in the manufacturer's table: ASI585MM-P, ASI585MC-P, ASI991MM-P, ASI990MM-P, ASI533MM-P, ASI294MM-P, ASI533MC-P, ASI183MM-P, ASI183MC-P, ASI294MC-P, ASI1600MM-P and ASI071MC-P, in versions using this fan
• exclusions: cameras requiring FAN50, the Air series and new versions with a sandblasted housing
• supply voltage: 12 V DC
• power consumption: 0.43 W
• nominal dimensions: 40 × 40 × 10 mm
• weight: 13 g
• warranty: 24 months

The fan replaces a worn component of the cooling system in a compatible ASI camera.
