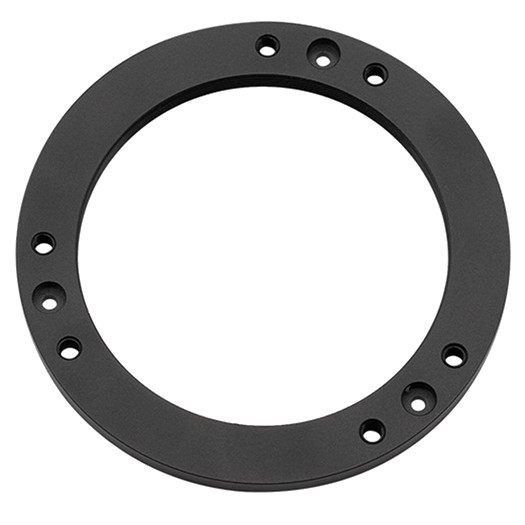

The ZWO M68 Tilt Plate allows for precise adjustment of the inclination angle of the ZWO camera matrix with respect to the optical axis of the telescope or the astrophotographic lens.

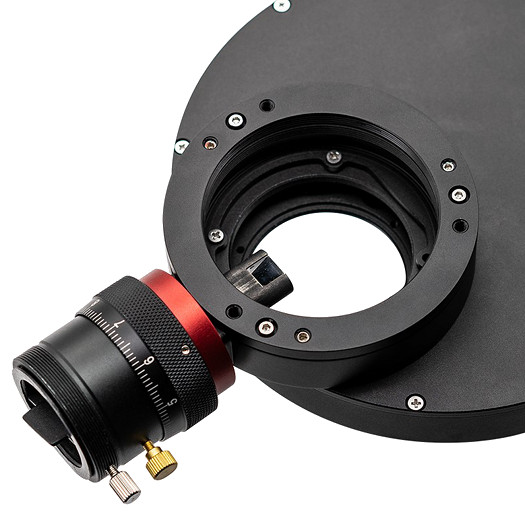

This tilter has been developed as a dedicated accessory for ZWO ASI6200MM Pro / ASI6200MC Pro cameras, which are standard equipped with an adapter with an M54 thread. The ZWO M68 Tilt Plate allows you to mount the OAG M68 off-axis finder and the EWF 2 "filter wheel, and then connect it directly to a telescope equipped with an M68x1 threaded extractor.

The most important features of the ZWO M68 tilter

• precisely made tilter with a thickness of 5 mm, compatible with cameras equipped with APS-C matrices (ZWO ASI6200MM Pro / ASI6200MC Pro)
• can be used with the EFW 2 "filter wheel and the ZWO M68 OAG off-axis finder

Technical parameters

• thickness: 5 mm
• compatible matrix formats: FF (full frame)
• dedicated camera models: ZWO ASI6200MM Pro / ASI6200MC Pro
• thread: M68x1

Elements of the set

• ZWO M68 tilter
