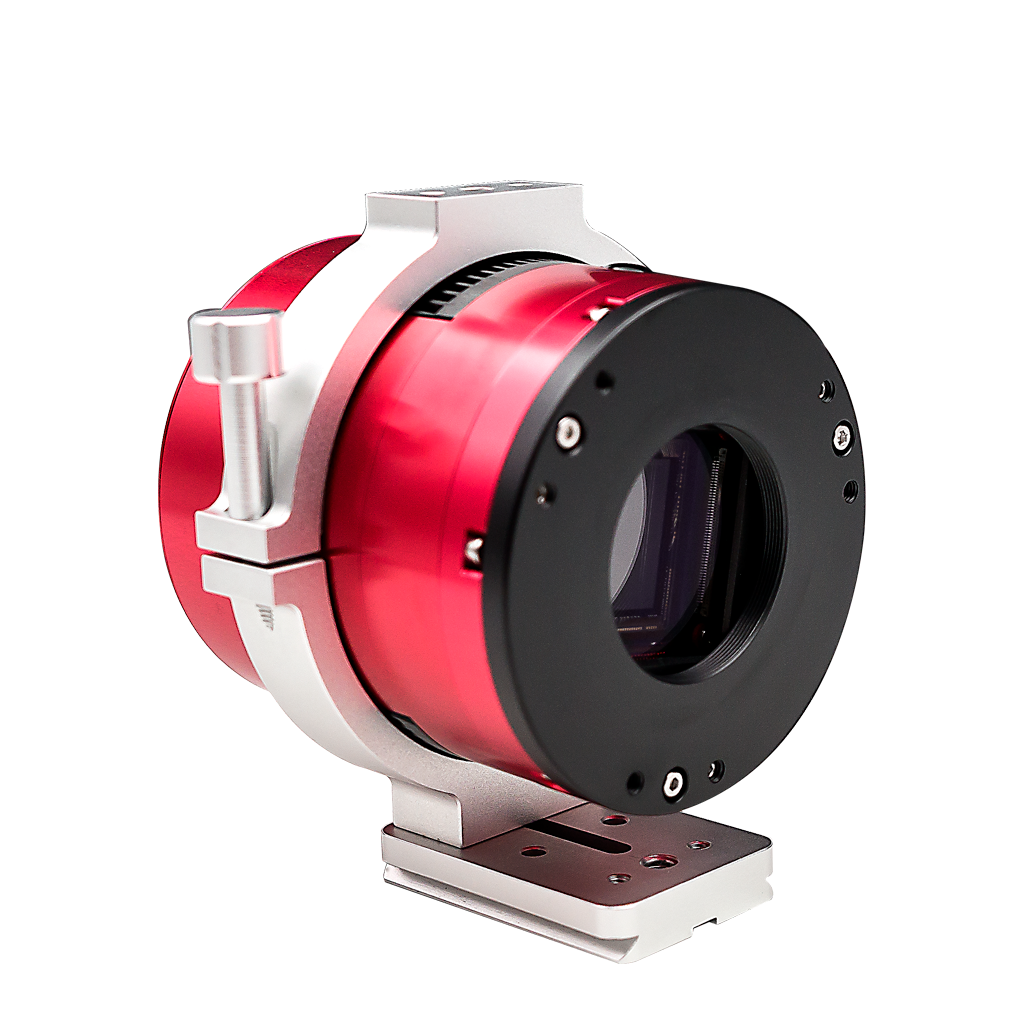

The original ZWO mounting rings guarantee perfectly stable mounting of the cooled ZWO ASI cameras.

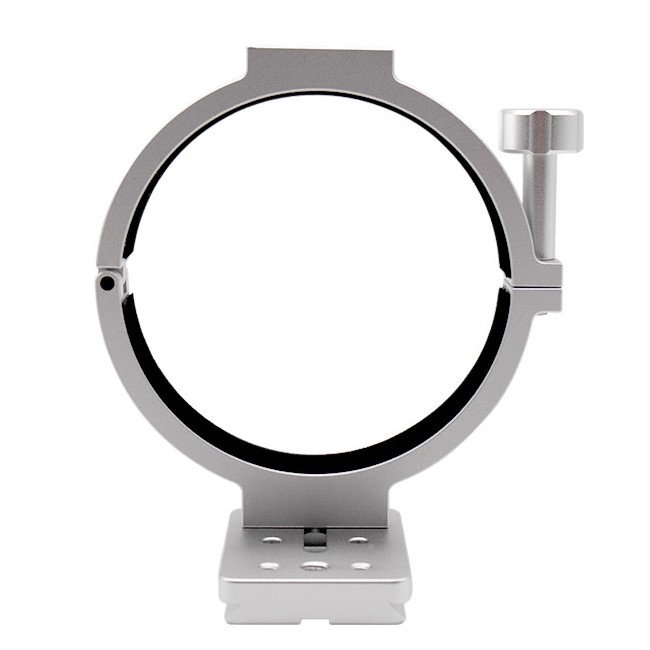

The ring φ = 78 mm allows the installation of cameras ASI1600 Pro, ASI183 Pro, ASI294 Pro, ASI533 Pro, ASI178, ASI174 and ASI385MC. It is equipped with an additional accessory mount in the upper part equipped with a 1/4-20 photo thread and two M4 screw threads.

The most important features of the camera clamp φ = 78 mm

• compatible with cooled cameras with a diameter of 78 mm
• precise workmanship that guarantees secure mounting of the camera

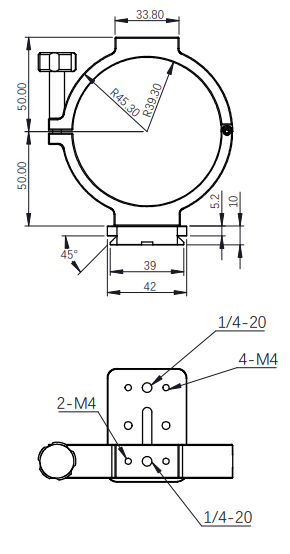

Technical parameters

• compatible cameras: ASI1600 Pro, ASI183 Pro, ASI294 Pro, ASI533 Pro, ASI178, ASI174, ASI385MC
• width of the accessory mount: 33.8 mm
• mounting: Vixen foot

Set elements

• camera clamp φ = 78 mm

Guarantee

24 months
