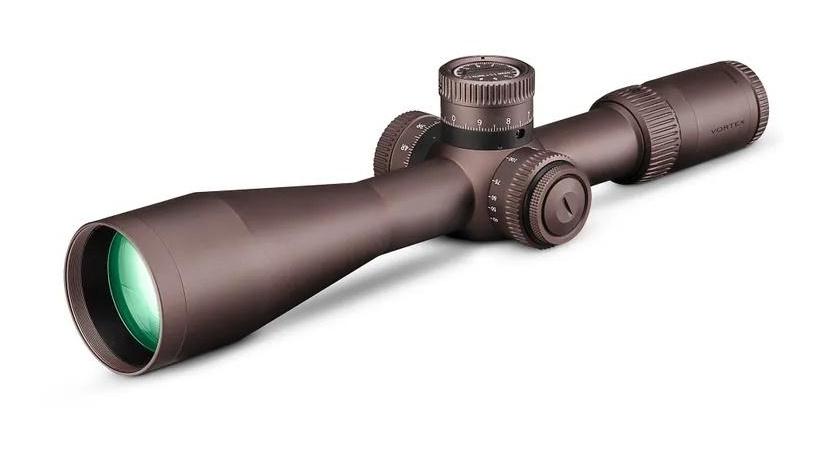

Vortex Razor HD Gen III 6-36x56 FFP 34 mm VMR-5 (MRAD) riflescope (SKU: RZR-63604) is a precision long-range riflescope equipped with a 6× zoom ratio, a 56 mm objective lens, and an illuminated VMR-5 reticle in the first focal plane. Its advanced HD optical system, XR Plus coatings, and L-Tec+ zero system provide a clear image and repeatable adjustment control in demanding competitive and professional applications.
• magnification range of 6–36× and a 56 mm objective lens
• illuminated VMR-5 (MRAD) reticle in the first focal plane, maintaining constant subtension values at every magnification
• clean reticle layout designed for PRS and long-range shooting, with fine subtensions supporting measurement and rapid corrections
• high-resolution HD optical system and XR Plus anti-reflective coatings on all air-to-glass surfaces
• exposed locking adjustment turrets with 0.1 MRAD click increments
• zero system L-Tec+ for quick setup and reliable return to zero
• external elevation turret rotation indicator providing visual and tactile reference of the adjustment range
• locking illumination control with 10 brightness levels and an off position between consecutive settings
• parallax adjustment from 10 yards to infinity and a fast-focus eyepiece
• tube with a 34 mm diameter, hard-anodized matte Stealth Shadow finish, and ArmorTek protective lens coating
• argon-purged, O-ring-sealed construction that is waterproof, fogproof, and shockproof
• riflescope Vortex Razor HD Gen III 6-36x56 FFP VMR-5 (MRAD)
• sunshade, 3"
• magnification Throw Lever
• flip caps Defender for the objective lens and eyepiece
• lens cloth
• battery CR2032
• tool for the Throw Lever, 2 mm
• turret tool, 2.5 mm
• manufacturer: Vortex Optics
• series: Razor HD Gen III
• product code (SKU): RZR-63604
• reticle: VMR-5 (MRAD)
• focal plane: first (FFP)
• reticle illumination: yes, 10 brightness levels
• illumination power supply: 1 × CR2032 battery
• magnification: 6–36×
• objective lens diameter: 56 mm
• tube diameter: 34 mm
• eye relief: 88.9 mm (3.5")
• linear field of view: approximately 6.8–1.2 m at 100 m (20.5–3.5 ft at 100 yd)
• turret type: exposed, locking
• adjustment graduation: 0.1 MRAD
• travel per rotation: 10 MRAD
• maximum elevation adjustment: 36.1 MRAD
• maximum elevation adjustment with zero system: 36.1 MRAD
• maximum windage adjustment: 15.5 MRAD
• maximum windage adjustment with zero system: 13 MRAD
• zero system: L-Tec+
• parallax adjustment: 9.1 m to infinity (10 yards to infinity)
• length: 388.6 mm (15.3")
• weight: 1279 g (45.1 oz)
• finish: hard-anodized Stealth Shadow
• purging gas: argon
• resistance: waterproof, fogproof, and shockproof
The combination of a wide magnification range, clean VMR-5 reticle, and locking adjustment mechanisms makes it easier to observe impacts and apply rapid, repeatable corrections during long-range shooting.
