Sharpstar 61EDPH III APO is the latest version of the astrograph, which is one of the most frequently chosen models of professional optical tubes. The third generation of the 61EDPH telescope is characterized by the use of a new lens system, in which two elements with reduced dispersion have been used.

The heart of this telescope is a three-element, apochromatic optics with an air gap. In order to ensure the best possible color reproduction, two of the lenses are made of low-dispersion glass (ED), resulting in ideal correction of chromatic aberration. The diameter of the full illumination of 44 mm allows for the connection of professional full-frame cameras to the tube without the fear of unwanted vignetting.

The capabilities of this telescope are not limited to astrophotography alone. This instrument allows for visual observations by attaching a diagonal or 1.25" and 2" eyepieces.

In addition to impeccable optical parameters, the Sharpstar 61EDPH III APO is distinguished by high quality and precision of mechanical elements. A solid extension allows for mounting even the heaviest astronomical cameras, and the mounting rings and Vixen foot made in CNC technology guarantee full stability of the tube.

Key Features of the Sharpstar 61EDPH III APO Telescope

• high-class APO astrograph with two low-dispersion glass lenses
• 55mm back focus, compatible with most optical accessories and cameras
• a disc of full illumination with a diameter of 44 millimeters
• can also be used in visual observations

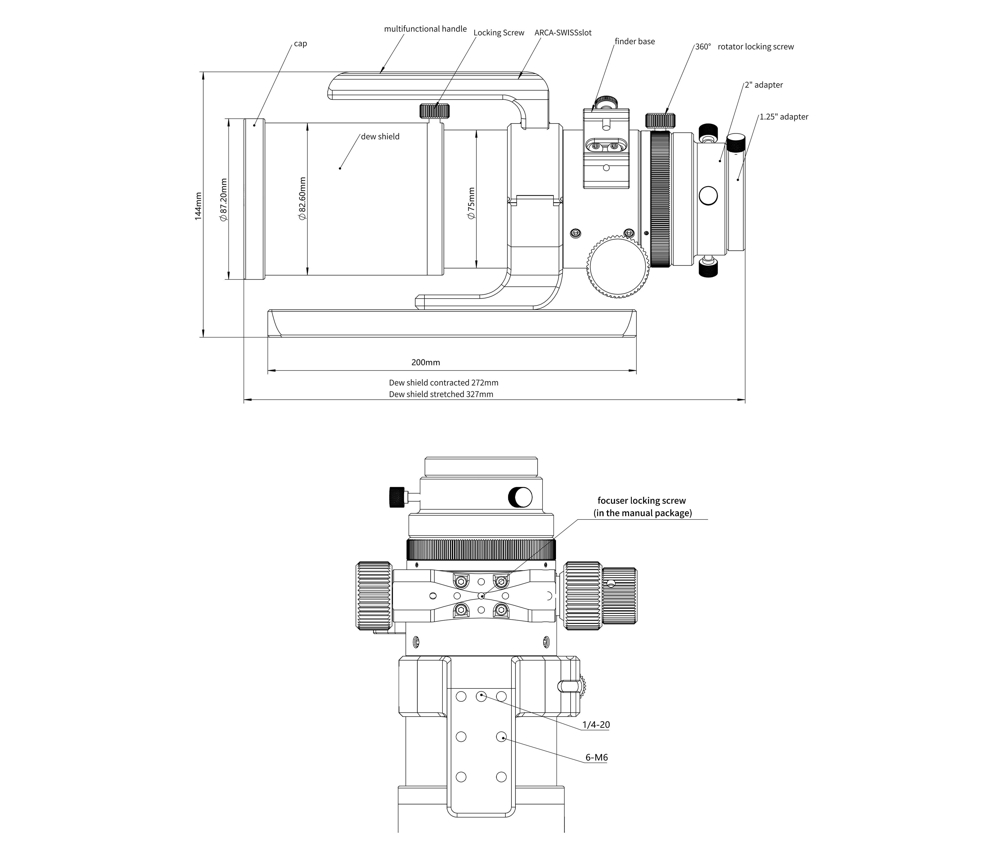

Technical parameters

• optical design: apochromatic refractor
• lens system: ED triplet with air gap
• Front lens diameter (aperture): 61 mm
• focal length: 360 mm
• aperture: f/5.9
• back focus: 44mm
• diameter of the full illumination disc: 50 mm
• rear exhaust outlet: 2" and 1.25"
• compatibility with full-frame matrices: yes
• Generation capacity: 1.93"
• star range: 10.7 mag
• finder mount: Vixen socket
• mounting bracket: Vixen foot, 200 mm
• tube length with unfolded dew shield: 327 mm
• Tube diameter with folded dew shield: 272 mm
• Deflector diameter: 82.6 mm
• tube weight: 1.48 kg

Set components

• Sharpstar 61EDPH III APO telescope
• mounting rings with finder socket and Vixen shoe
• documentation

Guarantee

24 months
