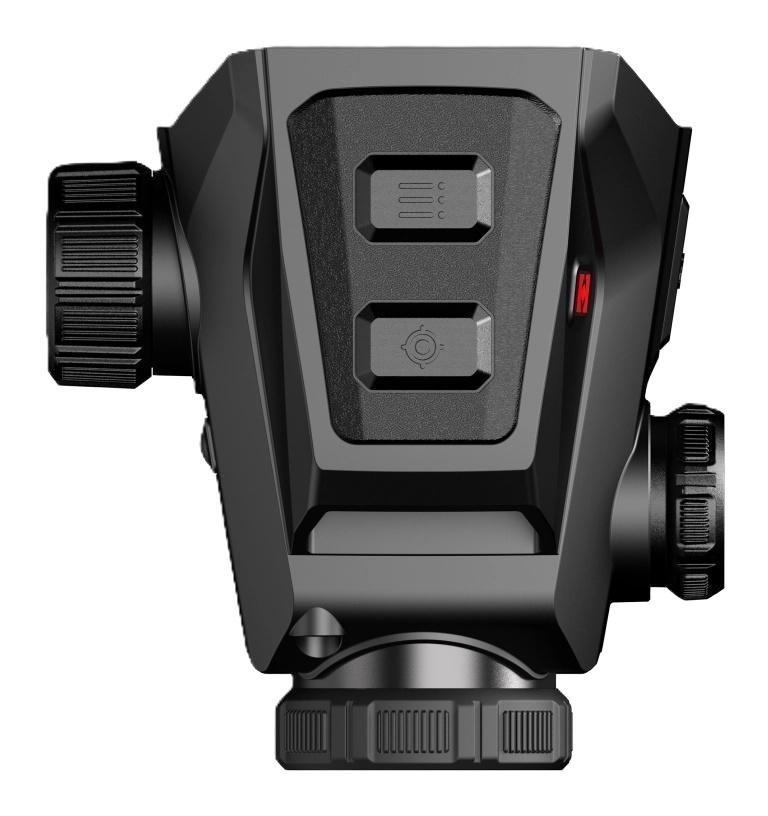

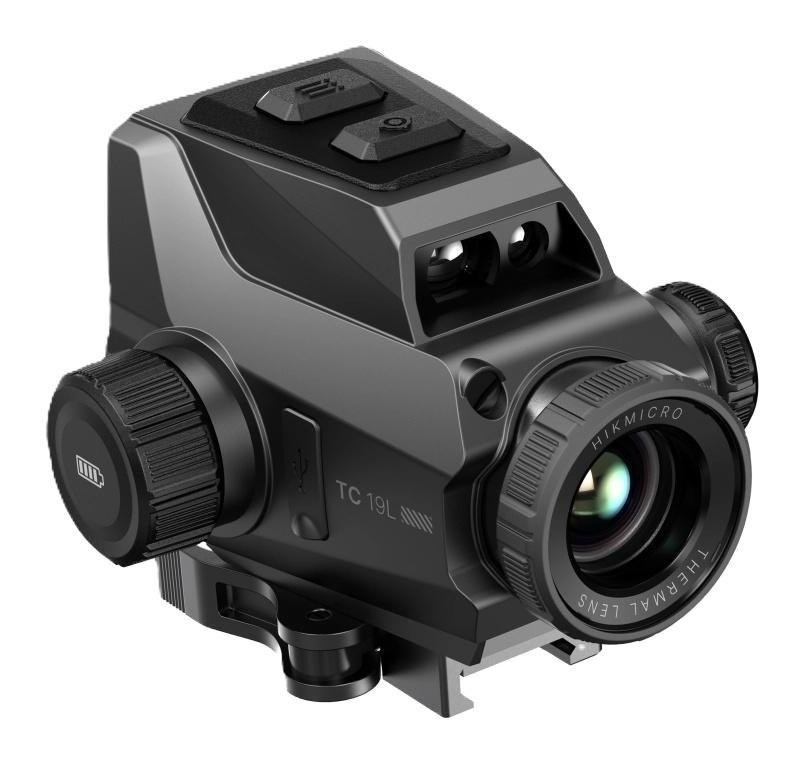

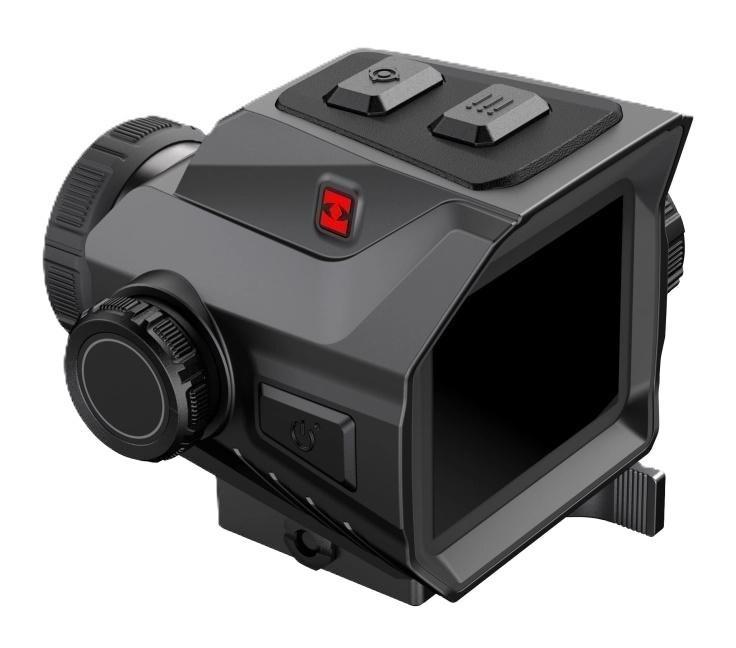

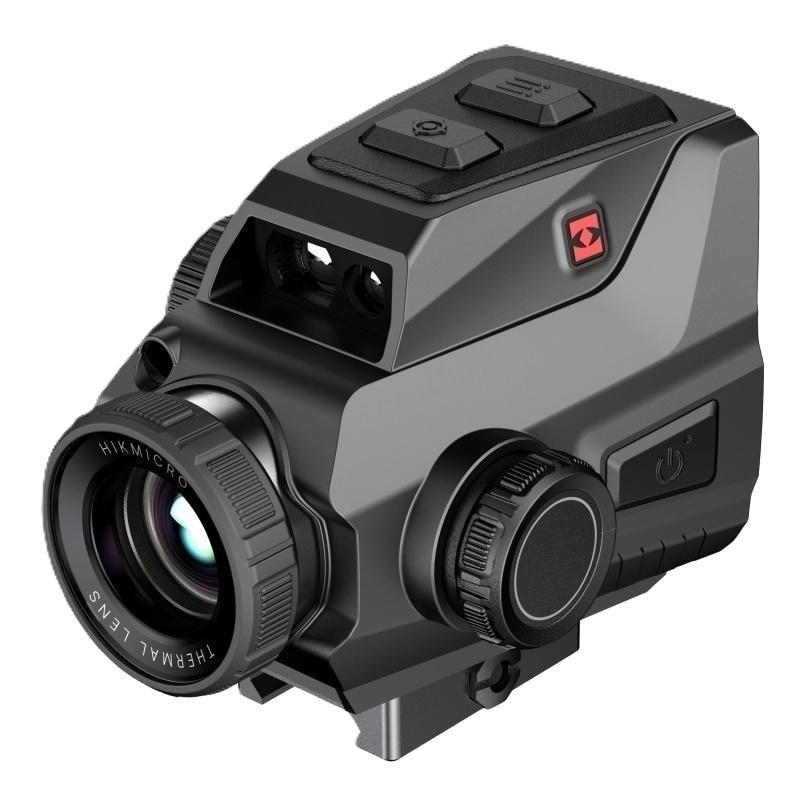

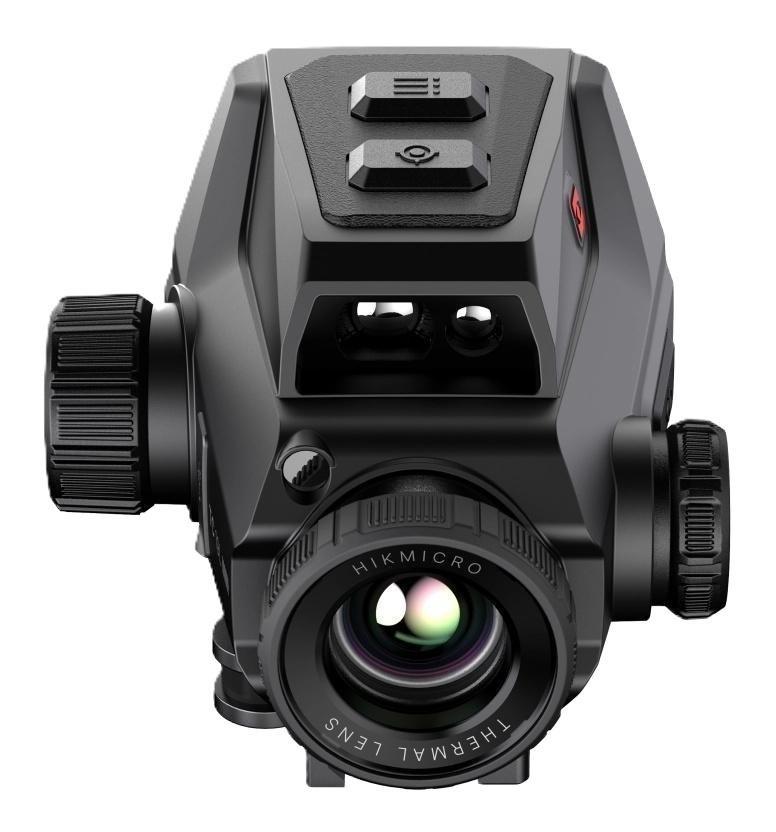

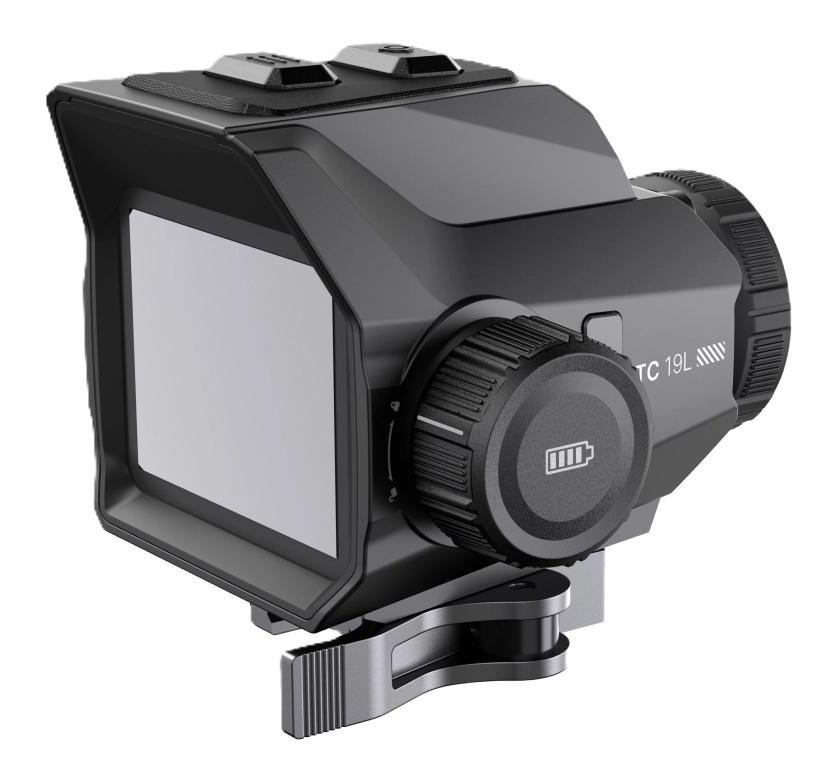

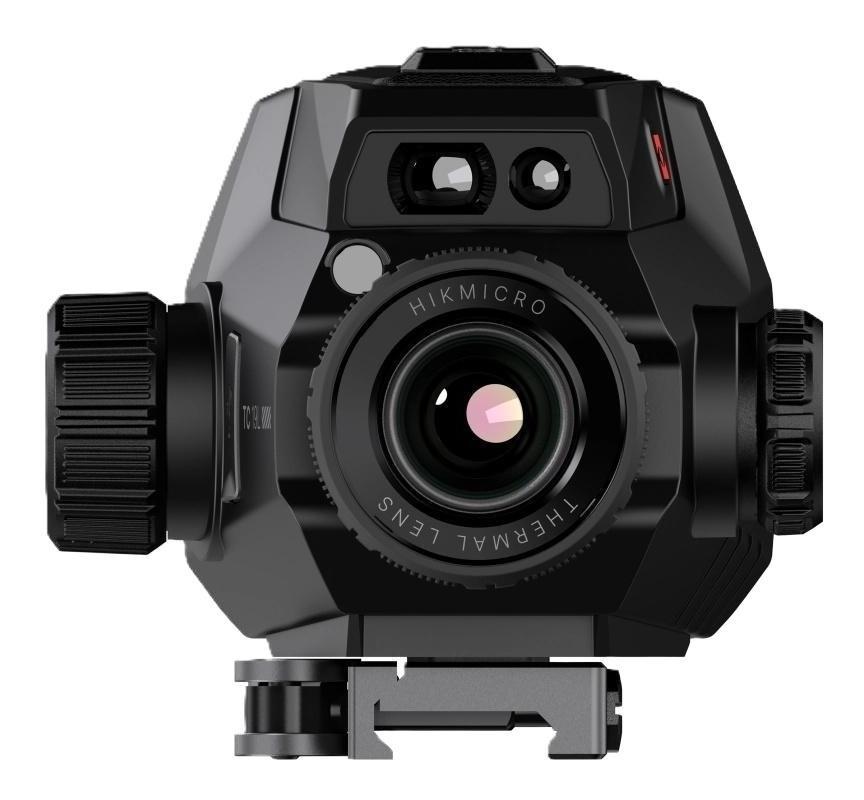

HIKMICRO HIKTac TC19L thermal imaging reflex sight with laser rangefinder (HIKMICRO by HIKVISION, SKU: 308101674) is a compact thermal imaging sight designed for rapid target detection and tracking. The VOx detector with a resolution of 256 × 192 px, 19 mm F1.0 lens and shutterless HSIS system provide a smooth image and effective detection of heat sources. The integrated laser rangefinder and ballistic calculator facilitate distance measurement and the selection of an appropriate correction.
• uncooled VOx thermal detector with a resolution of 256 × 192 px
• NETD thermal sensitivity below 18 mK
• 19 mm F1.0 lens with manual focus adjustment
• target detection range up to 900 m
• integrated laser rangefinder with a range of up to 1000 m
• ballistic calculator facilitating the selection of an appropriate correction
• magnification range of 1.2–9.6×
• wide field of view of 9.2° × 6.9°
• minimum focusing distance of 1 m
• 3.1" AMOLED display with a resolution of 600 × 450 px
• Image Pro 3.0, Zoom Pro and Sync Pro technologies and the shutterless HSIS system
• Picture in Picture function and four thermal imaging palettes
• five zeroing profiles and Freeze Zeroing function
• ability to capture photos and record videos with sound
• 4 GB internal memory for photos and recordings
• 2.4 GHz and 5 GHz Wi-Fi connectivity and compatibility with the HIKMICRO Sight app
• ability to quickly turn off the display with a single press of a button
• Killflash lens cover reducing reflections and protecting the optics against BB impacts
• powered by a replaceable 18650 rechargeable battery or through a USB-C port
• operating time up to 3.5 hours
• weight of 290 g without the battery and IP67 protection rating
• HIKMICRO HIKTac TC19L thermal imaging reflex sight
• Killflash lens cover
• spare sealing ring
• USB-C cable
• lint-free cloth
• quick-start guide
• detector type: uncooled VOx FPA thermal detector
• detector resolution: 256 × 192 px
• pixel pitch: 12 μm
• spectral range: 8–14 μm
• NETD thermal sensitivity: below 18 mK at 25°C and F1.0
• refresh rate: 50 Hz
• lens: 19 mm F1.0
• focus adjustment: manual, using a focusing ring
• minimum focusing distance: 1 m
• maximum detection range: 900 m
• optical magnification: 1.2×
• digital zoom: up to 8×
• magnification range: 1.2–9.6×
• angular field of view: 9.2° × 6.9°
• display type: AMOLED
• display diagonal: 3.1"
• display resolution: 600 × 450 px
• image palettes: Black Hot, White Hot, Red Hot, IronBow
• image tone settings: cold, warm
• brightness and contrast adjustment: yes
• image processing technologies: Image Pro 3.0, Zoom Pro, Sync Pro, HSIS
• Picture in Picture function: yes
• Hot Track hottest-point tracking: yes
• standby mode: yes
• photo capture: yes
• video recording with sound: yes
• internal memory: 4 GB eMMC
• wireless connectivity: 2.4 GHz and 5 GHz Wi-Fi hotspot
• compatibility with the HIKMICRO Sight app: yes
• laser rangefinder range: up to 1000 m
• ballistic calculator: yes
• number of zeroing profiles: 5
• Freeze Zeroing function: yes
• mounting method: Picatinny rail
• battery type: one replaceable 18650 rechargeable battery
• maximum operating time: up to 3.5 hours
• external power supply: USB-C, 5 V DC / 2 A
• protection rating: IP67
• operating temperature range: from –30°C to 45°C
• overall length: 106.9 mm
• overall width: 94.8 mm
• overall height: 86.7 mm
• weight without battery: 290 g
The HIKMICRO HIKTac TC19L combines thermal imaging, distance measurement and ballistic functions in a lightweight design, facilitating rapid target detection, acquisition and tracking.
