Levenhuk M800 PLUS is a professional microscope camera that is ideal as an image recording tool for research, diagnostic purposes and as a teaching aid at every stage of natural and biological education.

The camera is equipped with a low-noise CMOS sensor with a resolution of 3264 x 2448 px with an electronic shutter. The matrix allows you to record both photos and videos with a maximum frame rate of 62 fps. The camera connects to the computer via a USB port and dedicated LevenhukLite software.

The metal housing of the camera is designed for installation in microscope glasses with a diameter of 23.2 mm, 30 and 30.5 mm.

Key features of Levenhuk M800 PLUS camera

• professional microscope camera with the ability to record videos and save photos
• low-noise CMOS matrix with a resolution of 3264 x 2448 px
• compatible with 23.2 mm, 30 and 30.5 mm glasses
• intuitive camera control and image processing software

Technical parameters

• matrix type: CMOS
• matrix resolution: 8 MPx, 3264 x 2448 px
• matrix format: 1/2.5"
• single pixel size: 1.55 x 1.55 µm
• matrix spectral range: 380 - 650 nm
• built-in IR filter: yes
• exposure time: 0.4 - 2000 ms
• shutter type: electronic
• white balance: manual / automatic
• exposure time: manual / automatic
• photo saving format: .jpg / .bmp / .png / .tif
• video recording: yes
• video recording format: .wmv / .avi / .h264 / .h265
• frame recording resolution: 4 fps @ 3264 x 2448 px / 15 fps @ 1600 x 1200 px / 62 fps @ 800 x 600 px

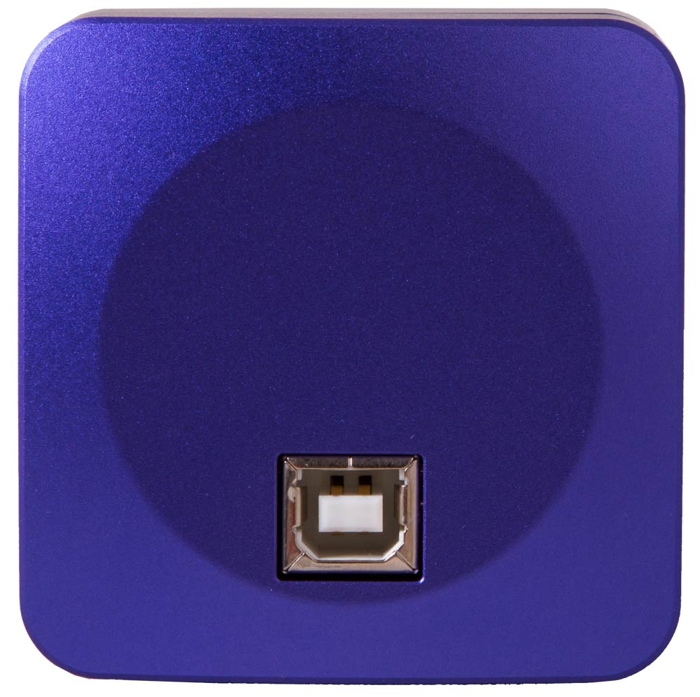

• connection to computer: USB 2.0
• compatible operating systems: Windows XP (32 bit), Windows Vista / 7 / 8 / 10 / 11 (32 and 64 bit), Mac 10.12, Linux Ubuntu 14.04
• housing: metal
• packaging dimensions: 170 x 150 x 60 mm

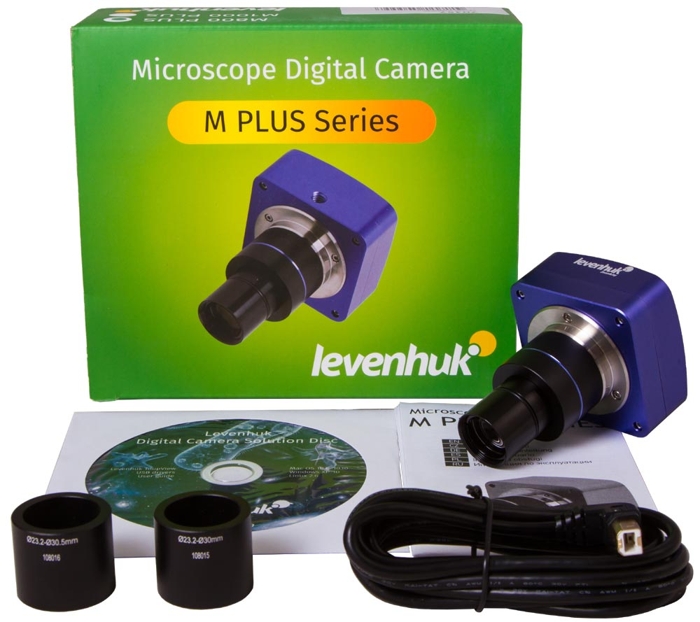

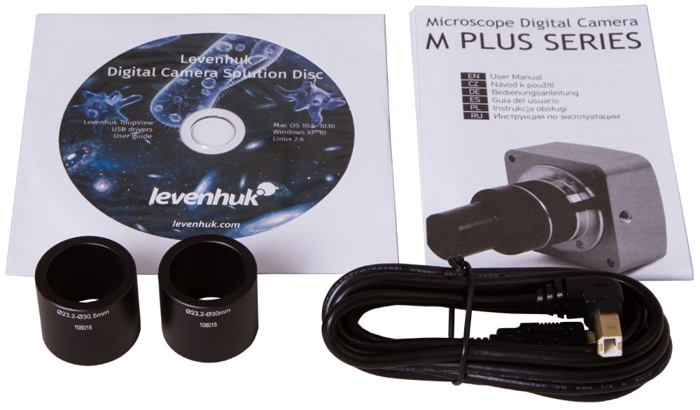

Set elements

• Levenhuk M800 PLUS camera
• 23.2 mm adapter
• adapters 23.2 - 30 mm and 23.2 - 30.5 mm
• USB cable
• CD with drivers and software
• documentation

Guarantee

lifetime manufacturer's warranty
