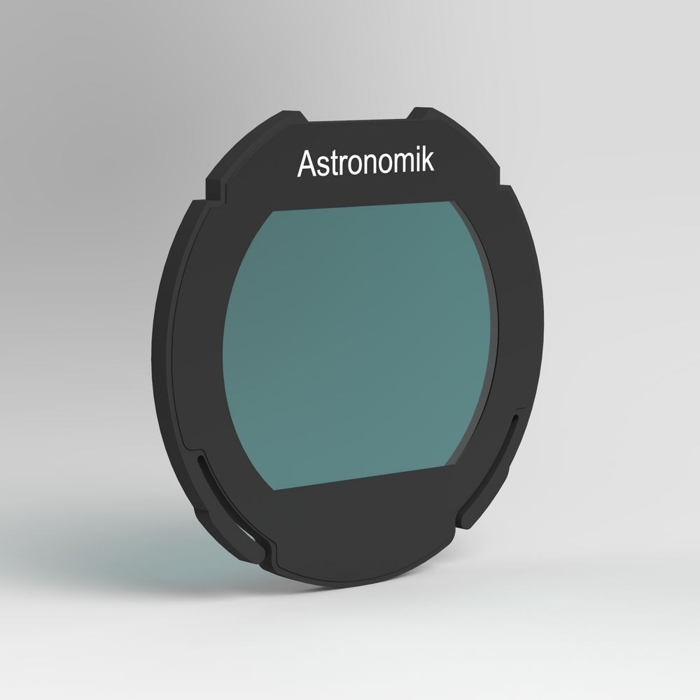

Astronomik UHC XT Clip-Filter EOS APS-C (Astronomik, SKU: 10203085) is a nebula filter that increases the contrast of emission objects against the sky background. It transmits the important H-beta and OIII lines and a red band containing H-alpha while suppressing much of the unwanted light.
It is most useful for gaseous and planetary nebulae. Its wider passband than an OIII filter preserves signals from several emission lines. In astrophotography, a camera without its own infrared cut-off requires an additional IR-Block filter; UHC does not replace this function.
The XT version uses a very thin substrate to reduce additional aberrations at the frame edges with wide-angle lenses. Parfocality with standard filters using 1 mm glass should not be assumed; check focus after changing the filter.
The Clip mount places the filter inside a compatible camera body, in front of the sensor. This allows the same filter to be used with different compatible lenses or a telescope and reduces dust settling on the sensor. The correct version must be selected for both the camera model and the lens.
Original Canon EF-S lenses are incompatible with the EOS APS-C filter installed. The filter works with suitable EF lenses and T2/M42 adapters. It can also be fitted inside the original Canon EF–EOS M adapter for EOS M cameras; this is different from direct EOS M filter mounting.
• selection of H-beta, OIII and the red H-alpha band
• suppression of sodium and mercury lamp lines and part of the natural sky background
• suited to emission and planetary nebulae
• mounting inside a compatible camera, in front of the sensor
• durable coatings resistant to scratching and moisture
• thin XT substrate for use with wide-angle lenses
• filter: Astronomik UHC XT Clip-Filter EOS APS-C
• protective filter box
• manufacturer: Astronomik
• manufacturer product code: 10203085

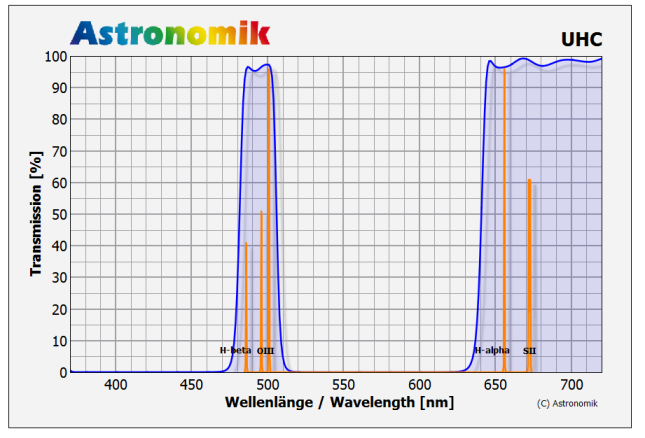

• transmission bands: 480–505 nm and above 645 nm
• main passband full width at half maximum (FWHM): 25 nm
• typical transmission: 95% at 486 nm, 496 nm, 501 nm and 656 nm
• infrared blocking: none; additional IR cut-off may be needed for imaging, depending on the camera
• mount: Clip-Filter EOS APS-C
• compatible APS-C DSLR bodies: Canon EOS 7D, 7D Mark II, 20D, 20Da, 30D, 40D, 50D, 60D, 60Da, 70D, 77D, 80D, 90D, 100D, 200D, 250D, 300D, 350D, 400D, 450D, 500D, 550D, 600D, 650D, 700D, 750D, 760D, 800D, 850D, 1000D, 1100D, 1200D, 1300D, 1500D, 2000D, 3000D, 4000D
• incompatible: original Canon EF-S lenses; full-frame bodies and EOS-1D
• substrate: very thin, XT version
• material: finely polished optical glass
• optical quality: diffraction-limited
• coating resistance: to scratching, moisture and ageing
Selective transmission helps separate nebular structure from a bright sky background.
