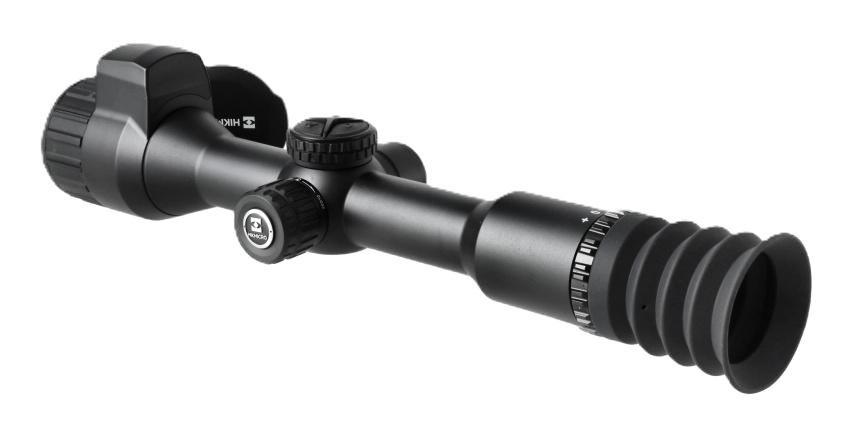

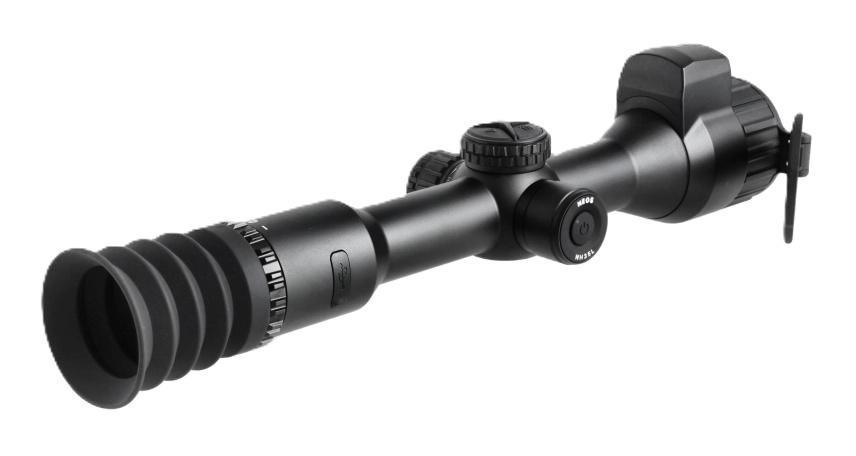

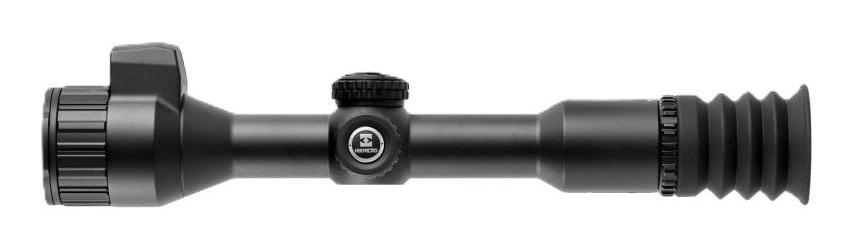

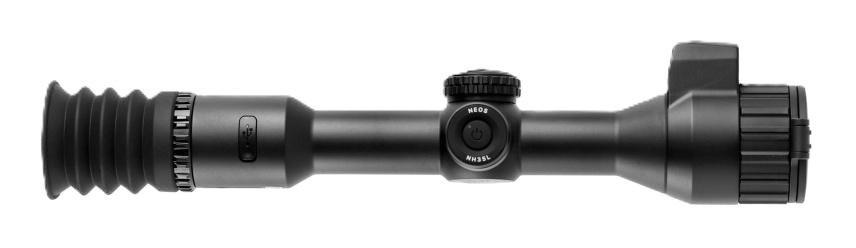

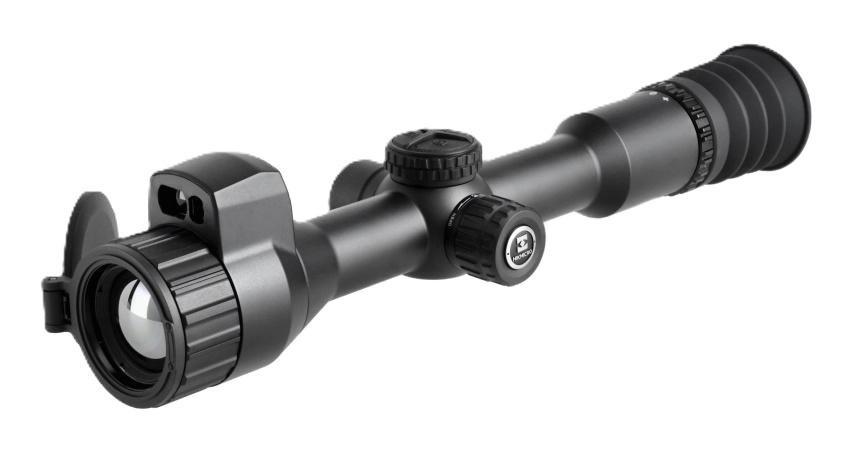

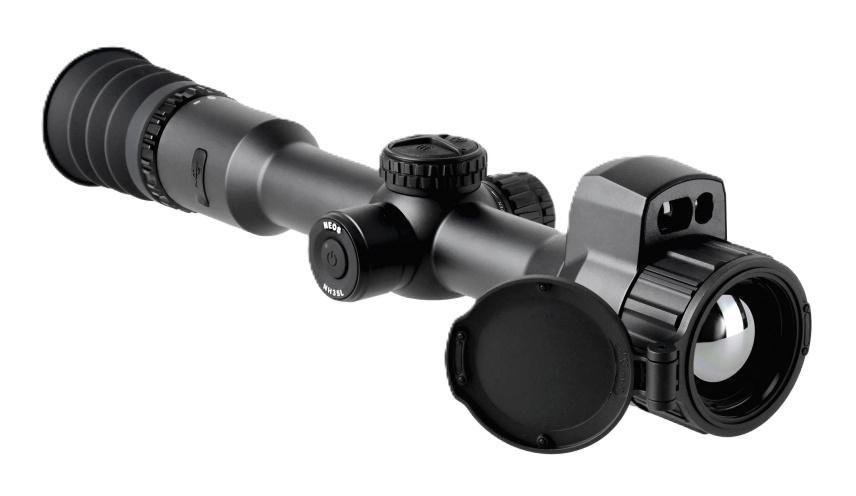

HIKMICRO Neos NH35L thermal imaging riflescope with laser rangefinder (HIKMICRO by HIKVISION, SKU: 308101626) combines the classic form of a riflescope with a modern thermal imaging system. The sensitive VOx detector, 35 mm F1.0 lens and image enhancement technologies enable effective observation in complete darkness and under conditions of limited visibility. The integrated laser rangefinder and ballistic calculator facilitate distance measurement and the selection of an appropriate correction.

Key features

• uncooled VOx thermal detector with a resolution of 384 × 288 px
• high thermal sensitivity with NETD below 18 mK
• 35 mm F1.0 lens with manual focus adjustment
• target detection range up to 1800 m
• integrated laser rangefinder with a range of up to 1000 m
• ballistic calculator and configurable zeroing profiles
• magnification range of 3.2–25.6×
• 0.49" AMOLED display with a resolution of 1920 × 1080 px
• Image Pro 3.0, Zoom Pro, Sync Pro technologies and the shutterless HSIS system
• Picture in Picture function and six thermal imaging palettes
• recoil-activated automatic recording
• 64 GB internal memory for storing photos and recordings
• dual power system with an internal rechargeable battery and a replaceable 18650 battery
• 30 mm mounting tube
• recoil resistance up to 1000 g and IP67 protection rating

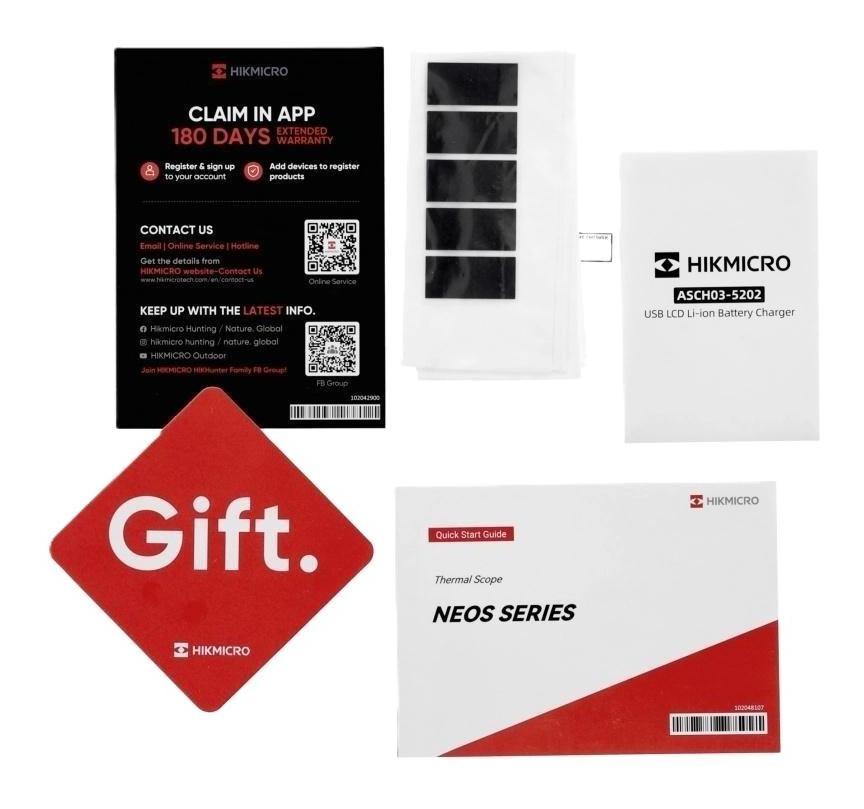

Package contents

• HIKMICRO Neos NH35L thermal imaging riflescope
• 18650 rechargeable battery

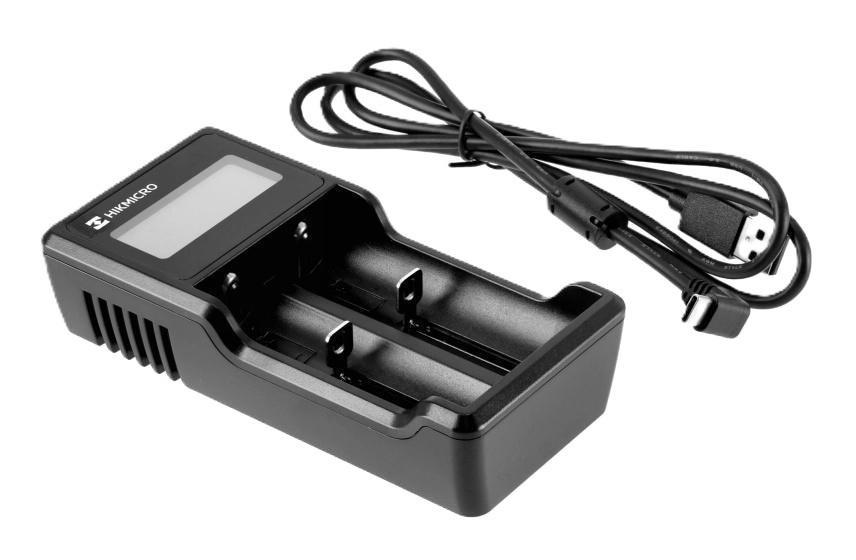

• battery charger
• USB-C cable
• microfibre cloth
• user manual

Technical specifications

• detector type: uncooled VOx microbolometer detector
• detector resolution: 384 × 288 px
• pixel pitch: 12 μm
• spectral range: 8–14 μm
• NETD thermal sensitivity: below 18 mK at 25°C and F1.0
• refresh rate: 50 Hz
• lens: 35 mm F1.0
• focus adjustment: manual
• minimum focusing distance: 3 m
• maximum detection range: 1800 m
• magnification: 3.2–25.6×
• angular field of view: 7.6° × 5.7°
• linear field of view at 100 m: 13.1 × 10 m
• display type: AMOLED
• display diagonal: 0.49"
• display resolution: 1920 × 1080 px
• image palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Picture in Picture function: yes
• image processing technologies: Image Pro 3.0, Zoom Pro, Sync Pro, HSIS
• exit pupil: 8 mm
• eye relief: 55 mm
• dioptre adjustment range: from –4 D to +4 D
• laser rangefinder range: 10–1000 m
• rangefinder measurement accuracy: ±1 m
• ballistic calculator: yes
• number of zeroing profiles: 5
• photo and video recording: yes
• recoil-activated automatic recording: yes
• internal memory: 64 GB
• wireless connectivity: Wi-Fi
• power supply: internal lithium rechargeable battery and replaceable 18650 rechargeable battery
• external power supply: USB-C, 5 V DC / 2 A
• maximum operating time: up to 8 hours
• recoil resistance: 1000 g / 0.4 ms
• tube diameter: 30 mm
• protection rating: IP67
• operating temperature range: from –30°C to 55°C
• overall length: 345.6 mm
• overall width: 86.1 mm
• overall height: 75.8 mm
• weight: 570 g
• warranty: 3-year manufacturer’s warranty
• EAN: 6974004649463

The HIKMICRO Neos NH35L provides a convenient combination of thermal observation, distance measurement and ballistic functions in a durable design adapted for use in demanding field conditions.
