Technical parameters

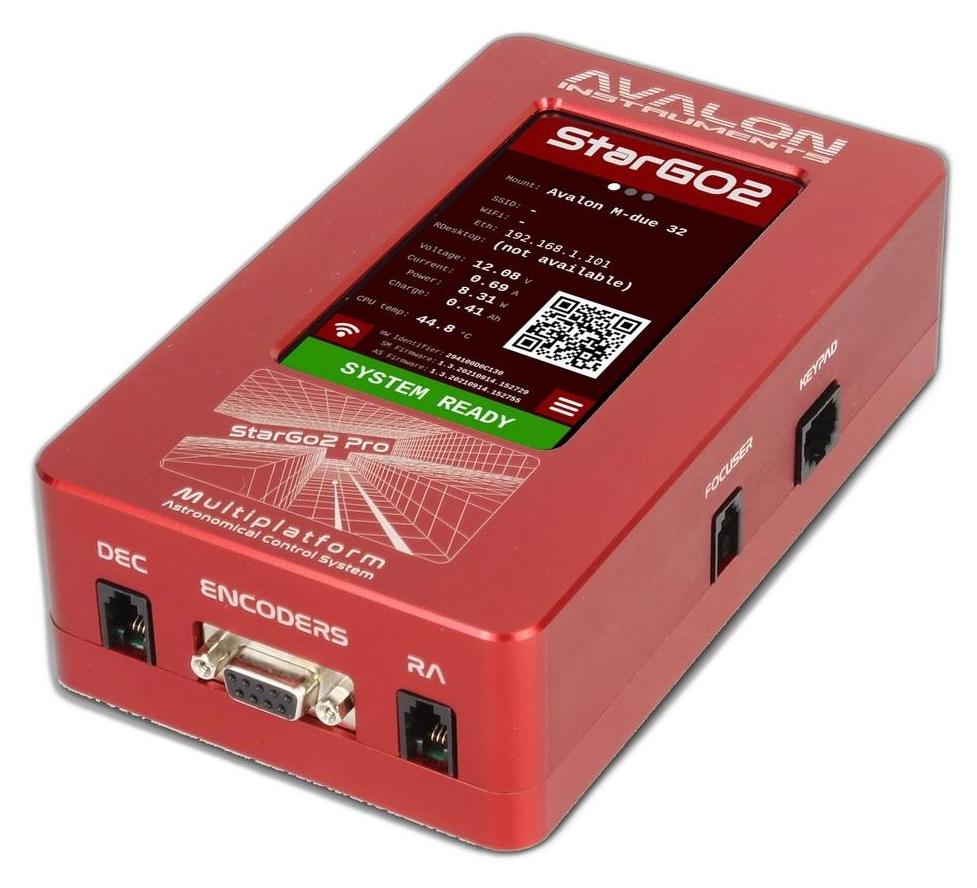

• General: Multiplatform Astronomical Control System
• System Speeds: Guide, Center, Find, Max
• Tracking Speeds: Terrestrial, Lunar, Solar, Sideral
• Autoguide Speeds: RA: From 0,05 to 0,95x with 0,05x increment step, DEC: From 0,05 to 0,95x with 0,05x increments

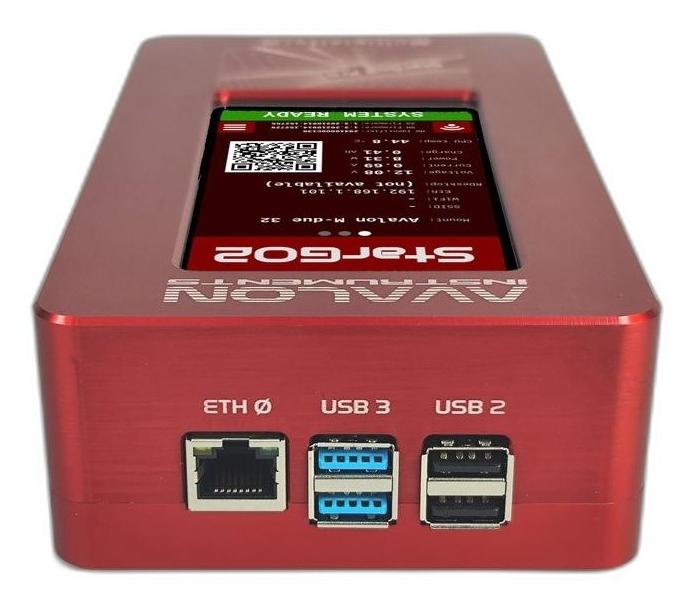

• Input/Output ports (Standard Raspberry pi4):
- 2 HDMI ports, 1 audio port, 2 USB 2.0 ports.
- 2 USB 3.0 ports, 1 Ethernet port

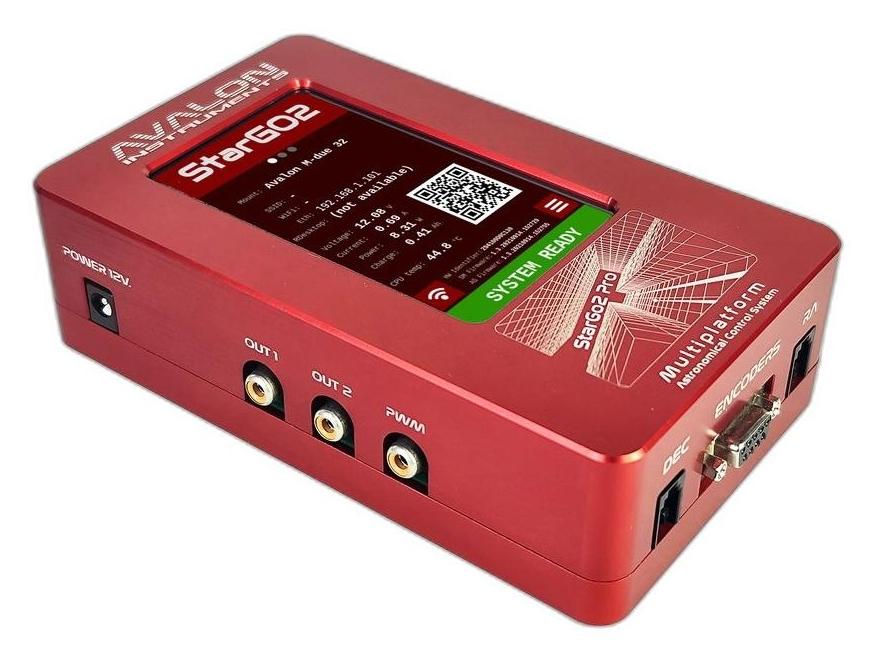

- 2 x 12 volt power out ports
- 1 x variable 6 – 12 volts power out port

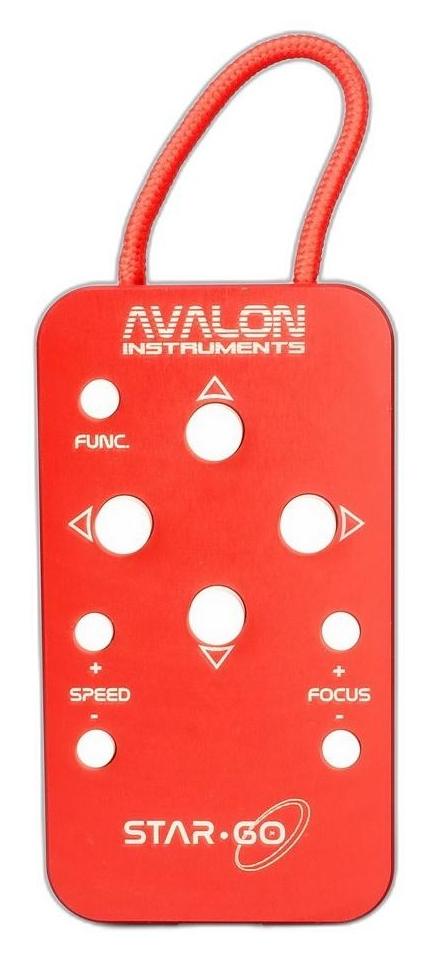

- 1 x Keypad
- Aux 1 RJ port with ASCOM and INDI driver ready to be used
• Electrical Charateristics: Power Supply: 12 – 18 VCC stabilized. Current: 0,5 to 1,5 A
• Control Operations: Goto, Sync, Park, Unpark
• Driver: INDI (Linux, Mac O.S.), ASCOM Alpaca (Windowd O.S.)
