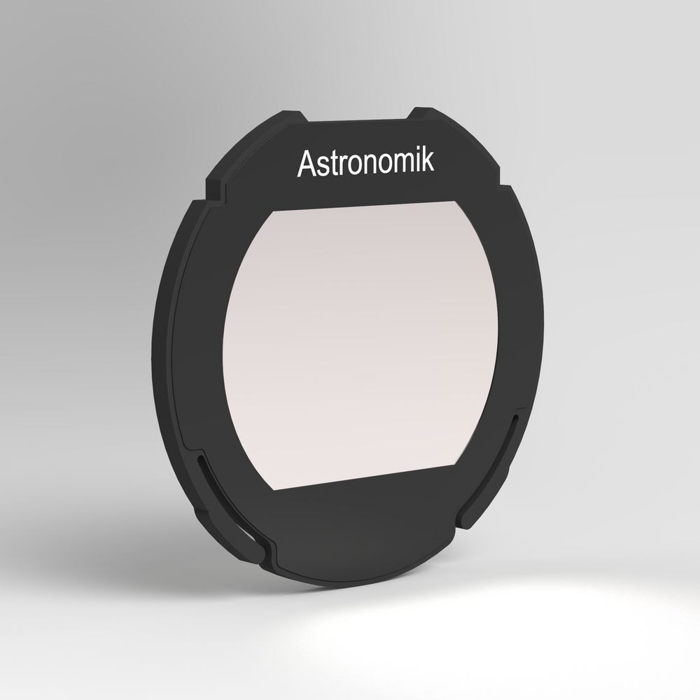

Astronomik ProPlanet 742 XT Clip-Filter EOS APS-C (Astronomik, SKU: 10203100) is a filter transmitting near-infrared light above 742 nm. It is intended for lunar and planetary imaging and specialist IR photography, reducing the effects of atmospheric turbulence compared with visible-light imaging.
For camera use with this Clip version, the body must transmit infrared, for example after a Full Spectrum or MC modification. A factory-standard camera or a conventional H-alpha-modified camera that retains IR cut-off is unsuitable. The filter also enables near-infrared vegetation photography and darkens the twilight sky background. It is not intended for visual observing.
The XT version uses a very thin substrate to reduce additional aberrations at the frame edges with wide-angle lenses. Parfocality with standard filters using 1 mm glass should not be assumed; check focus after changing the filter.
The Clip mount places the filter inside a compatible camera body, in front of the sensor. This allows the same filter to be used with different compatible lenses or a telescope and reduces dust settling on the sensor. The correct version must be selected for both the camera model and the lens.
Original Canon EF-S lenses are incompatible with the EOS APS-C filter installed. The filter works with suitable EF lenses and T2/M42 adapters. It can also be fitted inside the original Canon EF–EOS M adapter for EOS M cameras; this is different from direct EOS M filter mounting.
• near-infrared imaging above 742 nm
• reduced seeing effects in planetary imaging
• infrared photography with a suitably modified camera
• mounting inside a compatible camera, in front of the sensor
• durable coatings resistant to scratching and moisture
• thin XT substrate for use with wide-angle lenses
• filter: Astronomik ProPlanet 742 XT Clip-Filter EOS APS-C
• protective filter box
• manufacturer: Astronomik
• manufacturer product code: 10203100

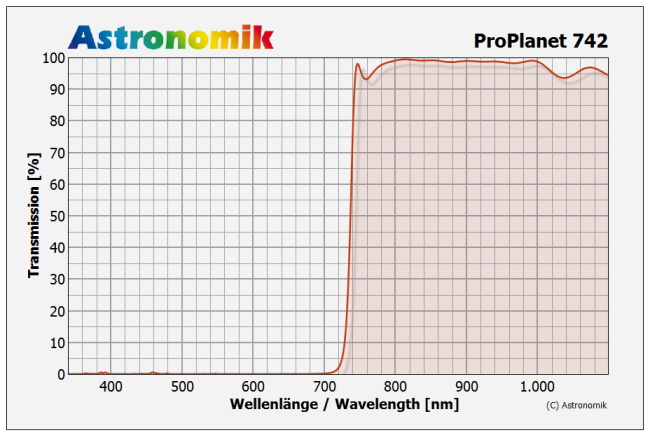

• transmission: over 96% between 742 and 1100 nm
• blocked range: 350–730 nm
• recommended aperture for planetary imaging: about 150 mm or larger
• required camera sensitivity: near infrared
• mount: Clip-Filter EOS APS-C
• compatible APS-C DSLR bodies: Canon EOS 7D, 7D Mark II, 20D, 20Da, 30D, 40D, 50D, 60D, 60Da, 70D, 77D, 80D, 90D, 100D, 200D, 250D, 300D, 350D, 400D, 450D, 500D, 550D, 600D, 650D, 700D, 750D, 760D, 800D, 850D, 1000D, 1100D, 1200D, 1300D, 1500D, 2000D, 3000D, 4000D
• incompatible: original Canon EF-S lenses; full-frame bodies and EOS-1D
• substrate: very thin, XT version
• material: finely polished optical glass
• optical quality: diffraction-limited
• coating resistance: to scratching, moisture and ageing
ProPlanet 742 enables infrared recording of planetary detail and distinctive landscape images.
