Astronomik H-alpha 6nm CCD Clip-Filter EOS M (Astronomik, SKU: 10204091 / 8h00s3) is a narrowband emission line filter designed for imaging hydrogen nebulae. It provides extremely high contrast between objects emitting at the H-alpha line (656nm) and the sky background, enabling the capture of faint structures even under heavy light pollution.
Key features
• 6nm narrowband H-alpha filter • maximizes contrast at 656nm • complete blocking of sodium (Na) and mercury (Hg) vapor lamp emissions, natural airglow and most moonlight • very effective blocking of unwanted radiation outside 656nm from UV to IR • reduces the number of stars in the image compared to the 12nm version • ideal for imaging faint objects in star-rich regions • suitable for cameras with very low dark current and for heavy light pollution conditions • integrated IR blocking layer (CCD version) • parfocal with other Astronomik filters • diffraction-limited design – no loss of resolution or contrast • Astronomik MFR coating providing excellent out-of-band blocking and no halos • strict quality control before shipment
Box contents
• Astronomik H-alpha 6nm CCD Clip-Filter EOS M • high-quality, durable filter storage box
Technical specifications

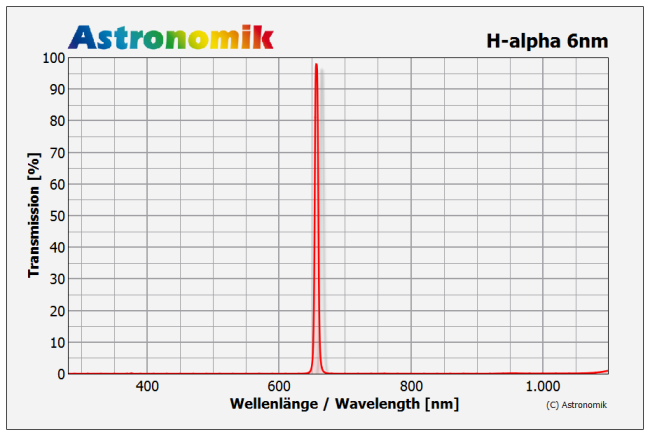

• spectral line: H-alpha (656nm) • bandwidth (FWHM): 6nm • guaranteed transmission >90% at 656nm • typical transmission 93% at 656nm • recommended focal ratio range (MFR): f/4 to f/∞ • glass thickness: 1mm • finely polished optical glass free from streaks, internal stress and bubbles • coating: Astronomik MFR • fully resistant to high humidity and aging effects
The Astronomik H-alpha 6nm CCD filter enables the capture of very faint nebular structures with maximum contrast, especially under demanding observing conditions. The filter must not be used for solar observation.
