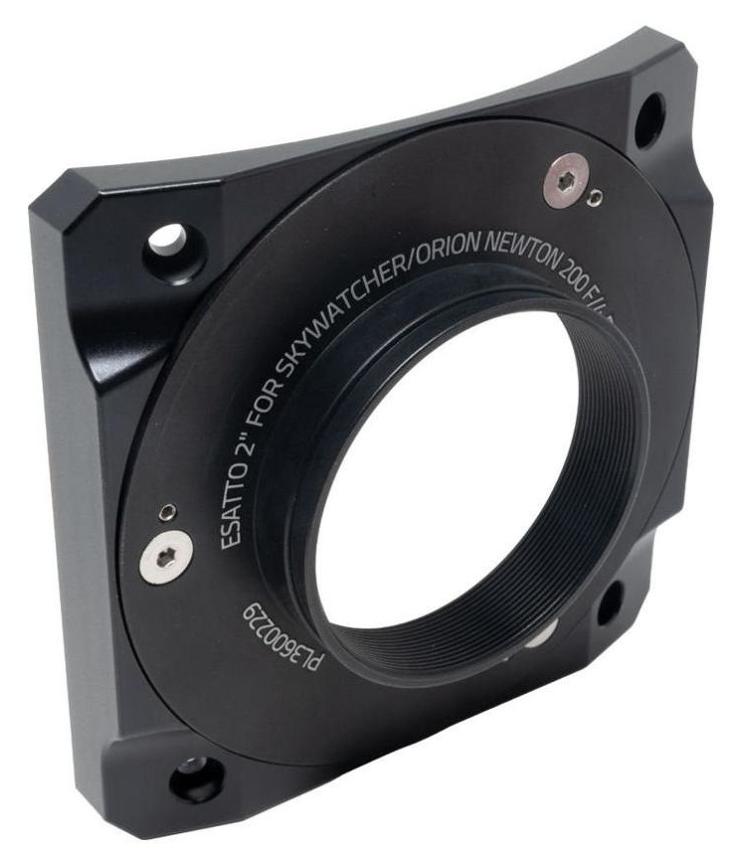

The ESATTO 2" → SkyWatcher / Orion Newton 200 f/4 and f/5 adapter (PrimaLuceLab, SKU: PL3600229 ) replaces the factory focuser on 8-inch reflectors, allowing for the mounting of a precise, remote-controlled ESATTO 2" . The aluminum collar, with an optical thickness of just 3.5 mm, screws into the original holes, maintaining the full back-focus budget and axial alignment of the optical path.

The most important features of the adapter

• optical thickness 3.5 mm – no focus shift
• mounting holes consistent with the factory exhaust system – installation without drilling
• Push-pull screws for precise adjustment of the orthogonality of the extraction
• full internal diameter 50.9 mm – no vignetting on APS-C matrices
• CNC milled 6061-T6 aluminum, hard anodized – lightweight and corrosion resistant

Set components

• ESATTO 2" collar adapter ↔ Newton 200 f/4–f/5 tube

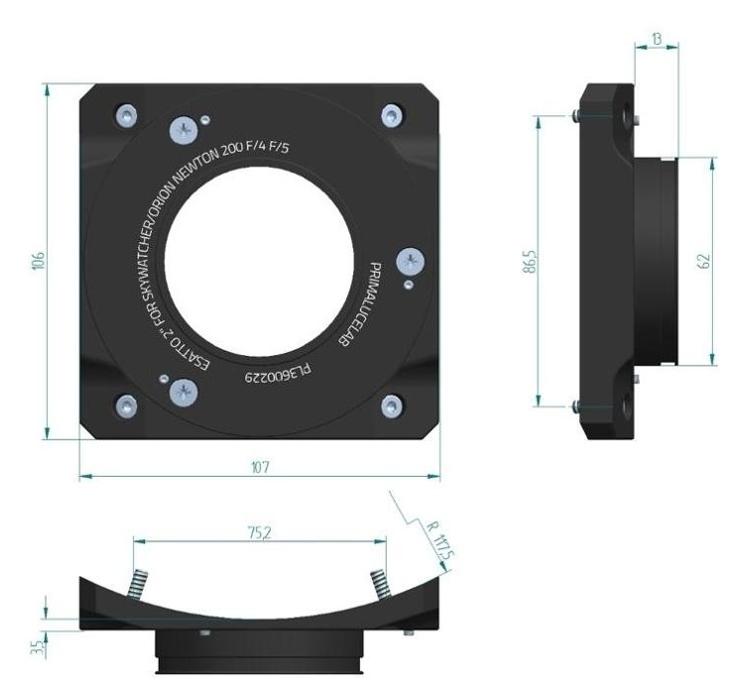

Technical parameters

• compatible telescopes: SkyWatcher / Orion Newton 200 f/4 or f/5
• compatible extractor: ESATTO 2"
• optical thickness: 3.5 mm
• Inner diameter: 50.9 mm
• material: aluminum 6061-T6, anodized
• mounting holes: identical to the original extractor (no drilling required)
• EAN: 8059020773168

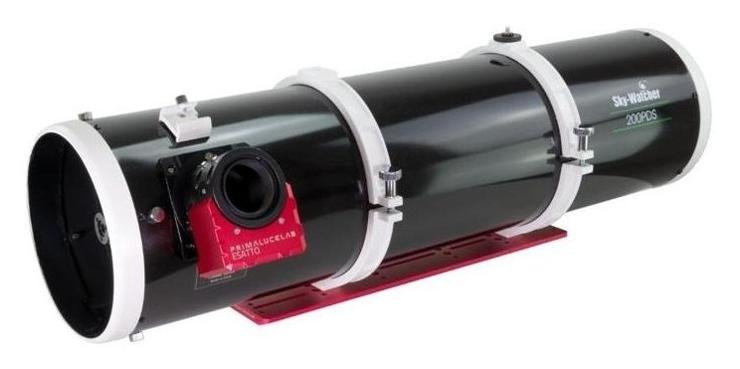

The PL3600229 adapter lets you leverage the accuracy and remote control of the ESATTO 2" focuser on popular 200mm Newtonians, providing a rigid mount and precise optical axis adjustment essential for astrophotography.
