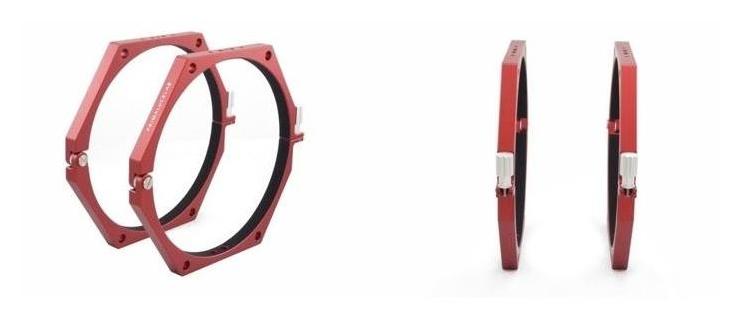

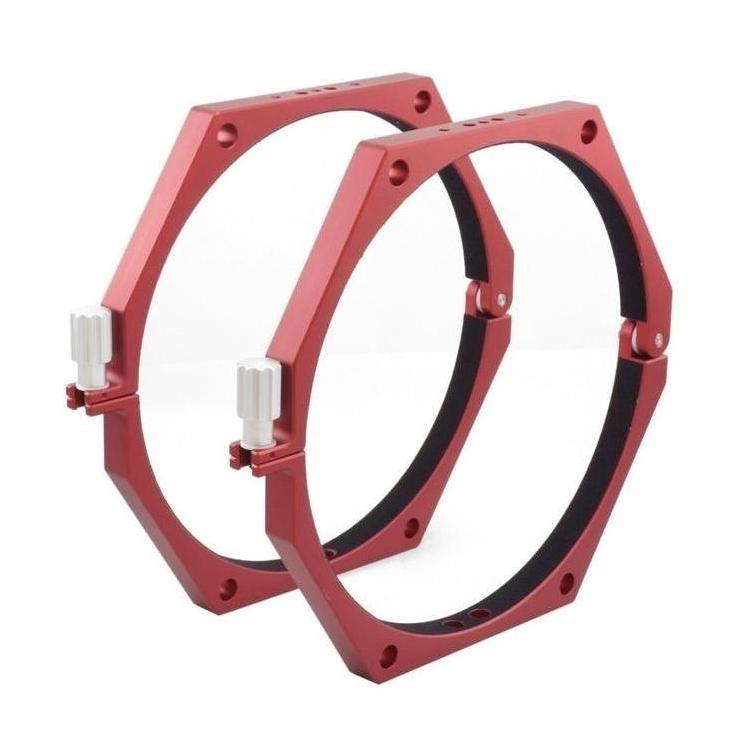

244 mm PLUS support rings (PrimaLuceLab, SKU: PLLANSU244P ) are a pair of massive rings designed for tubes with a diameter of about 244 mm - typically for 10" - 11" SCT or 12" Newtonian/RC class telescopes. The design, in accordance with the PLUS mechanics standard, allows for mounting Losmandy/Vixen rails under the tube and guider guides or other accessories above the telescope, maintaining perfect axiality.

Key Features of the 244mm PLUS Rings

• Inner diameter 244 mm – fits tubes 243 – 245 mm
• M6 threads in the PLUS system grid (55 mm and 20 mm spacing) – quick integration with PrimaLuceLab plates and clamps
• hinge and knurled set screw – easy opening and closing in the field
• milled 6061-T6 aluminum, hard anodized - high stiffness and corrosion resistance
• option of mounting the rail under and above the tube – mounting a guider, handle or additional counterweight

Set components

• two 244 mm PLUS support rings

Technical parameters

• Inner diameter: 244 mm
• mounting threads: 6 × M6 (PLUS standard)
• hole spacing: 55 mm (Losmandy) / 20 mm (Vixen)
• material: aluminum 6061-T6, anodized
• compatible tubes: telescopes Ø 243 – 245 mm
• manufacturer: PrimaLuceLab – Italy

The 244 mm PLUS rings guarantee rigid, axial mounting of large telescopes and enable easy configuration expansion thanks to full compatibility with the modular PrimaLuceLab PLUS system.
