140mm PLUS support rings (PrimaLuceLab, SKU: PLLANSU140P) PrimaLuceLab opinie

1399 zł price without VAT: 1137,40 zł Shop online: ● ready for shipping  Shop in Warsaw (qty): 1 ● ready for shipping  Shop in Chorzow (qty): ● on request

CHEAP DELIVERY TO EUROPEAN COUNTRIES CHECK IT OUT!

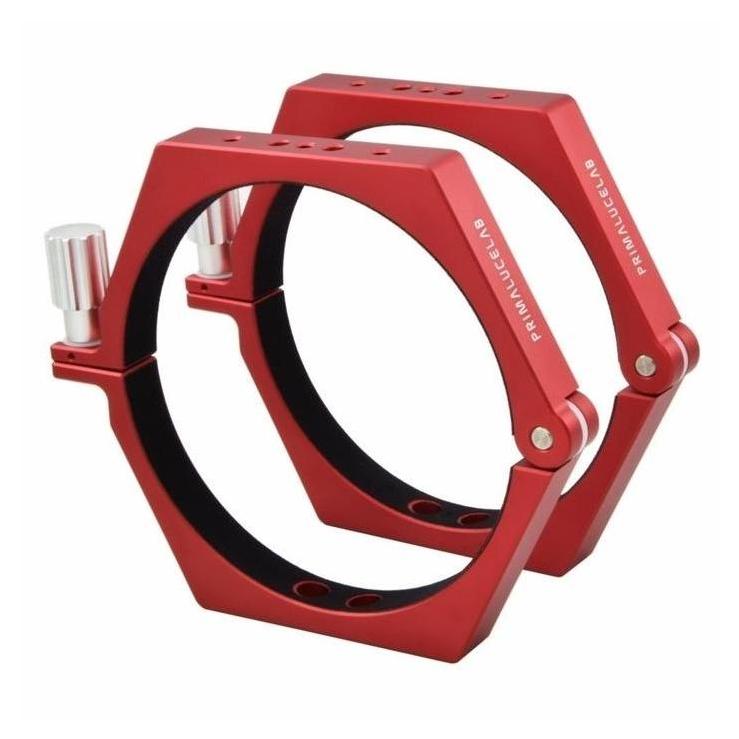

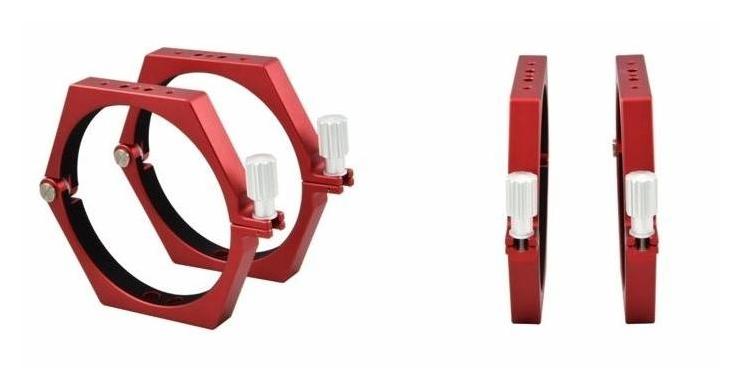

140 mm PLUS support rings (PrimaLuceLab, SKU: PLLANSU140P ) are a pair of aluminum clamps that allow rigid mounting of tubes with a diameter of about 140 mm in the PLUS mechanical ecosystem. With M6 threads arranged in a standard PLUS grid, the rings allow you to screw Vixen / Losmandy rails under the telescope and guides or holders above the tube, maintaining perfect axiality of the set.

Key Features of the 140mm PLUS Rings

• Inner diameter 140 mm – fits tubes 139 – 141 mm
• M6 threads in PLUS grid (55 mm and 20 mm spacing) – direct integration with PrimaLuceLab plates and clamps
• hinge and knurled set screw – quick opening and closing in the field
• CNC milled 6061-T6 aluminum, hard anodized - high stiffness and corrosion resistance
• possibility of mounting rails or guides under and above the tube – easy expansion of the configuration

Set components

• two 140 mm PLUS support rings

Technical parameters

• Inner diameter: 140 mm
• mounting threads: 6 × M6 (PLUS standard)
• hole spacing: 55 mm (Losmandy) / 20 mm (Vixen)
• material: aluminum 6061-T6, anodized
• compatible tubes: telescopes Ø 139 – 141 mm
• manufacturer: PrimaLuceLab – Italy

The 140mm PLUS rings provide stable, axial mounting of medium-sized telescopes and full compatibility with the PrimaLuceLab PLUS modular accessory system.
