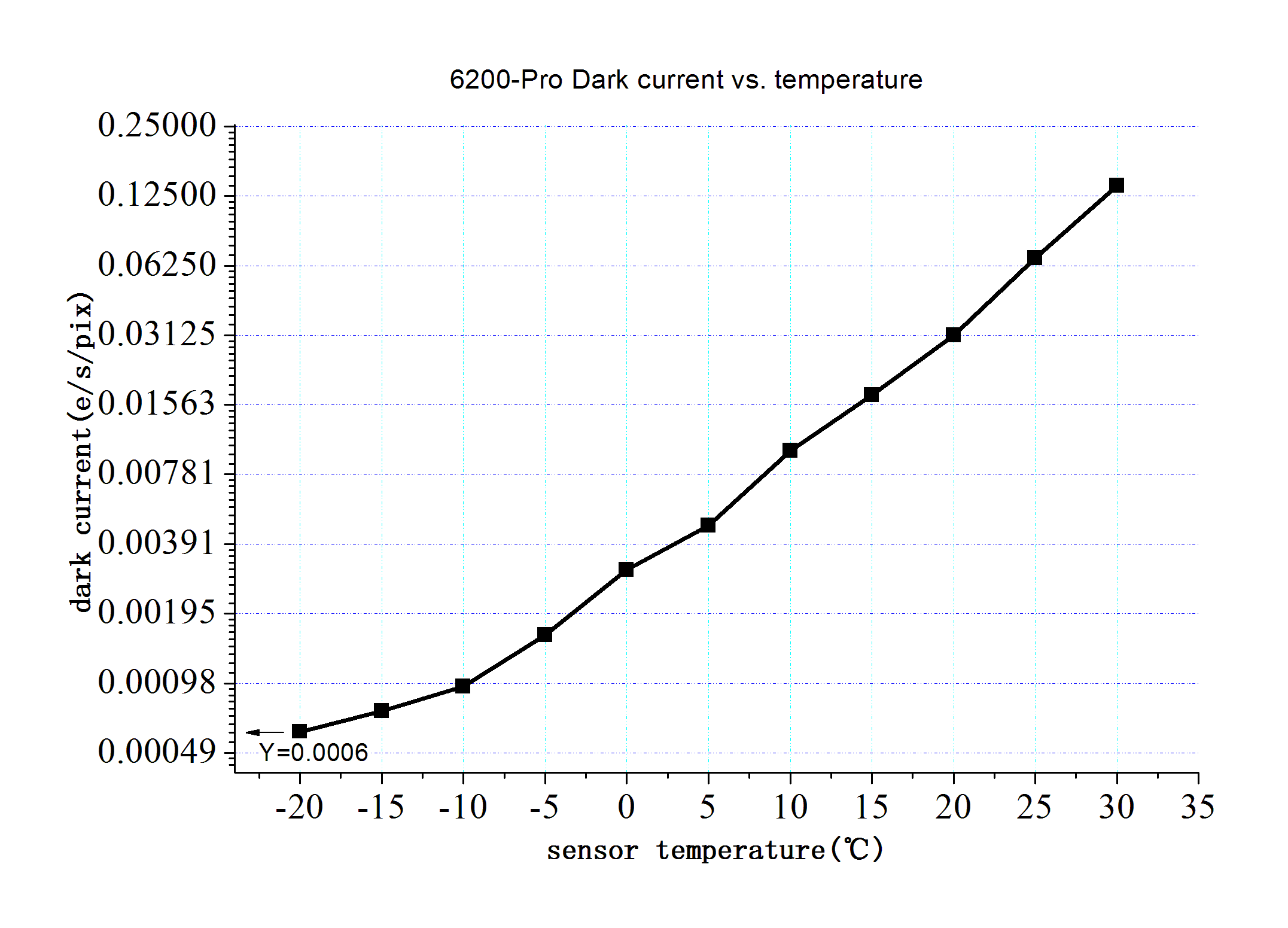

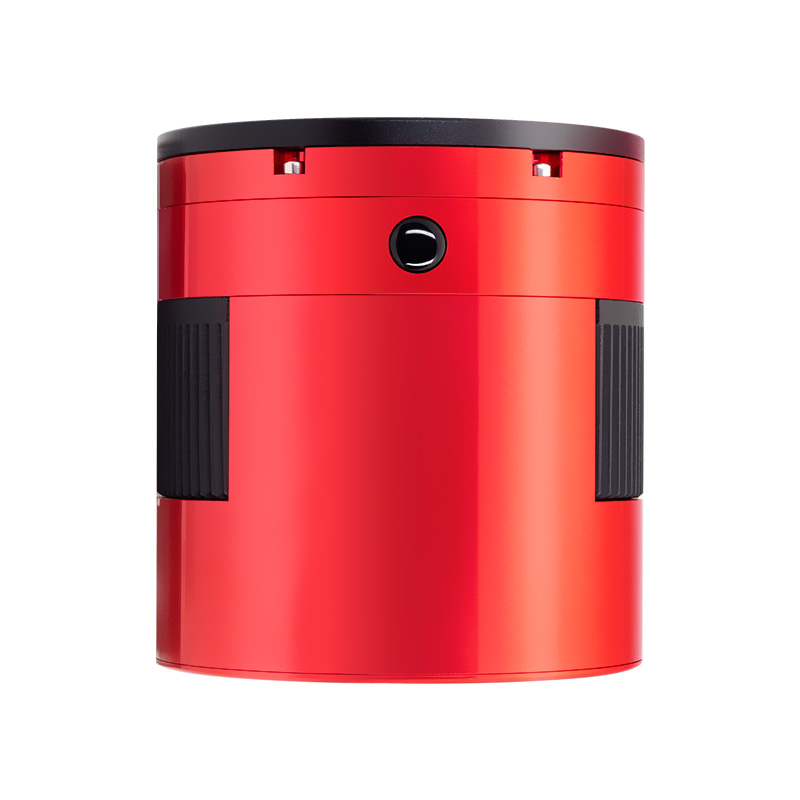

The ZWO ASI 6200MM-PRO monochrome camera is setting new standards in astrophotography. At the heart of this camera is the unrivaled, full-frame Sony IMX455 optical sensor with a resolution of 62 MPix (9576x6388 px). This camera is one of the first to combine a CMOS sensor with a 16-bit ADC. This combination produces images with sharpness and dynamic range unmatched by other cameras, making them impossible to ignore. The ASI 6200MM-PRO camera is a product where nothing has been left to chance. Thanks to the use of an optical sensor built using "back-illuminated" technology, unprecedented sensitivity has been achieved, allowing the camera to push the boundaries of astrophotography. The use of an extremely efficient Peltier-based cooling system ensures that the sensor's dark current is maintained at an extremely low level of 0.003 e/s/pix at zero degrees Celsius. This means that for a 5-minute exposure, the noise generated by the IMX455 sensor is negligible! This product is also free from the "Amp Glow" effect characteristic of many CMOS sensors.

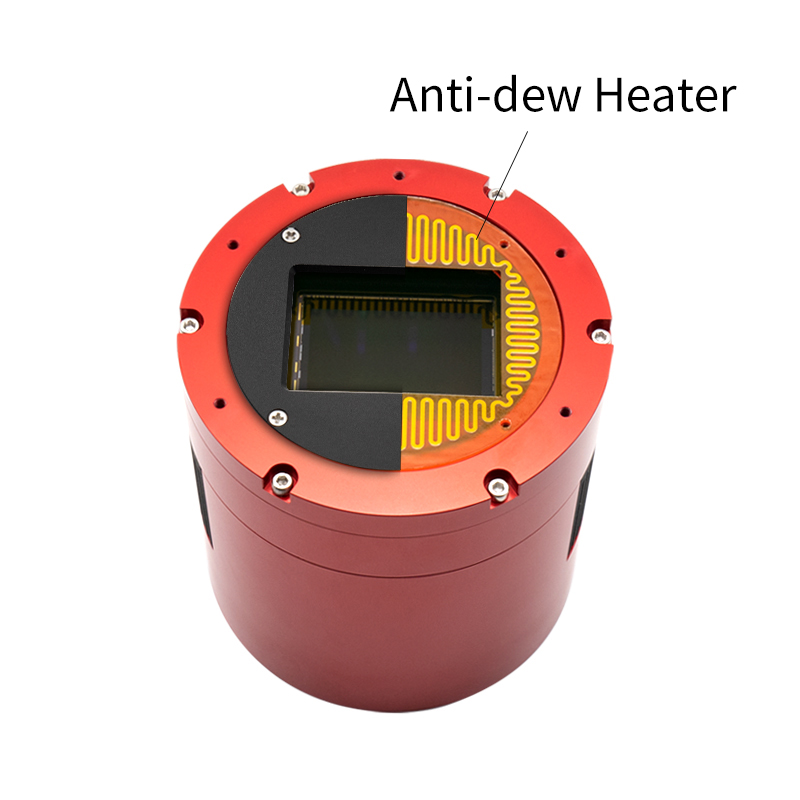

To prevent condensation, the camera is equipped with a 5W polyamide heater surrounding the sensor's protective window. The entire device is housed in a very lightweight and compact housing. • full-frame Sony IMX455 matrix made with back-illuminated technology
• 16-bit ADC for wide dynamic range
• 512 MB DDR3 memory acting as a buffer ensuring stable data transmission
• no Amp Glow effect
• very efficient, two-stage cooling system based on the Peltier module

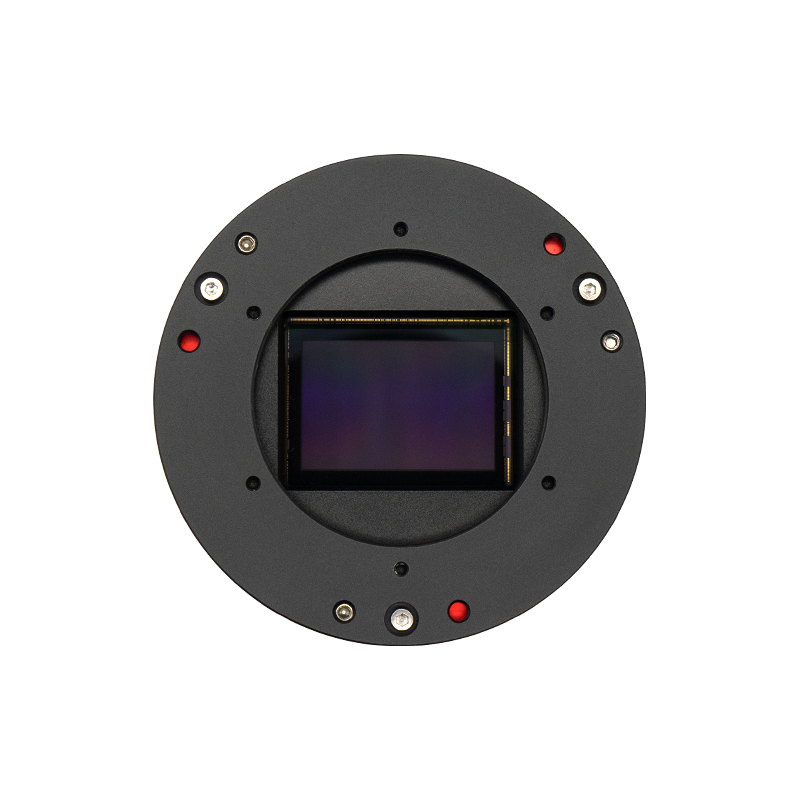

• polyamide heater preventing condensation of water vapor on the matrix window • matrix: Sony IMX455 (monochrome)
• matrix type: CMOS
• matrix size: 36x24 mm (full frame), diagonal 43.3 mm
• matrix resolution: 62 MPix, 9576x6388 px
• single pixel size: 3.76 µm

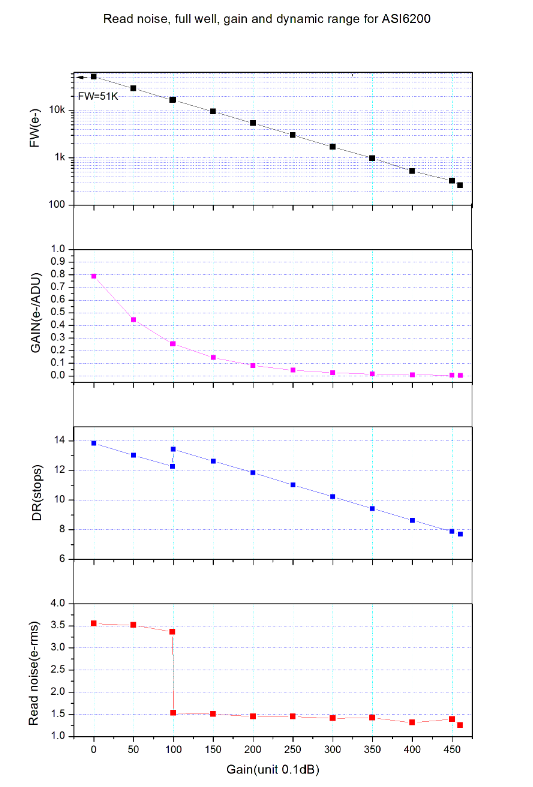

• capacity of the potential well: 50 ke

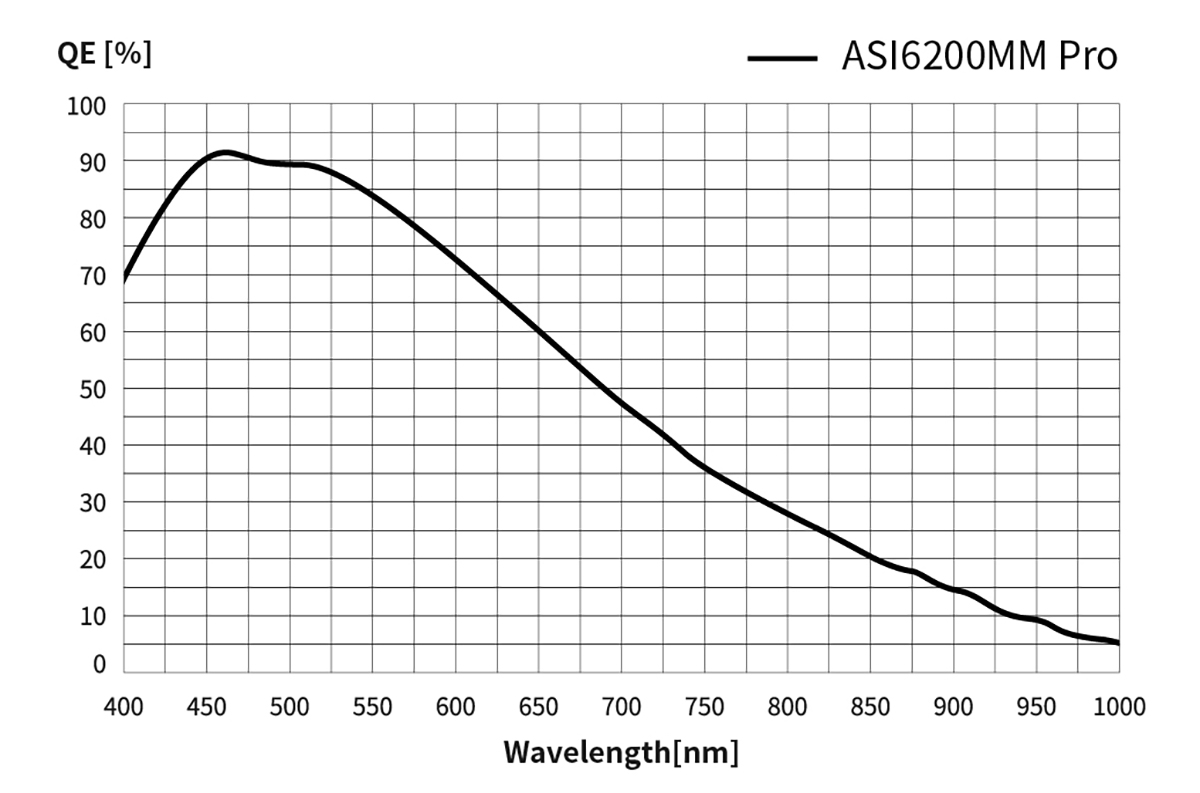

• peak quantum efficiency: >80%
• exposure time: 32 µs - 2000 s
• ROI (selection of area of interest): possible
• shutter type: rolling shutter, electronic

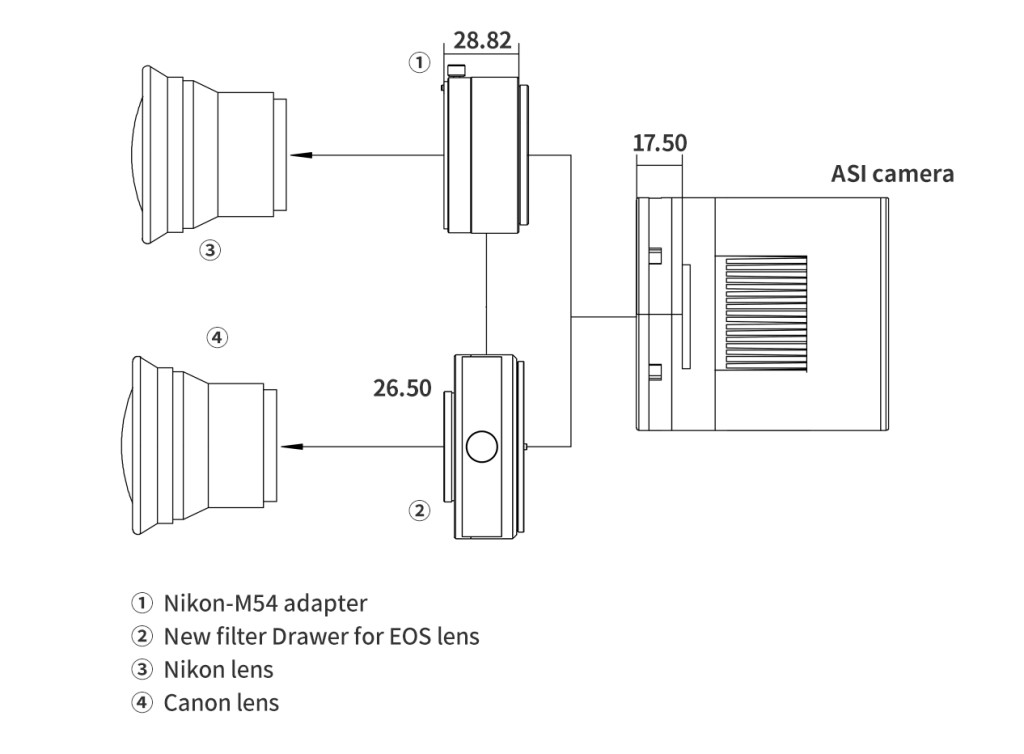

• back focus: 17.5 mm
• matrix protection glass: covered with D60-AR Coating
• buffer size: 512 MB DDR3
• compatible operating systems: Windows, Mac OS, Linux
• ports: 1x USB 3.0 (in), 2x USB 2.0 (out)
• cooling system: 2-stage, Peltier cells, maximum power consumption 12V, 3A
• camera power consumption: 5V, 650 mA
• minimum permissible operating temperature: -5°C
• maximum permissible operating temperature: 45°C
• connector: M42x0.75
• weight: 700 g

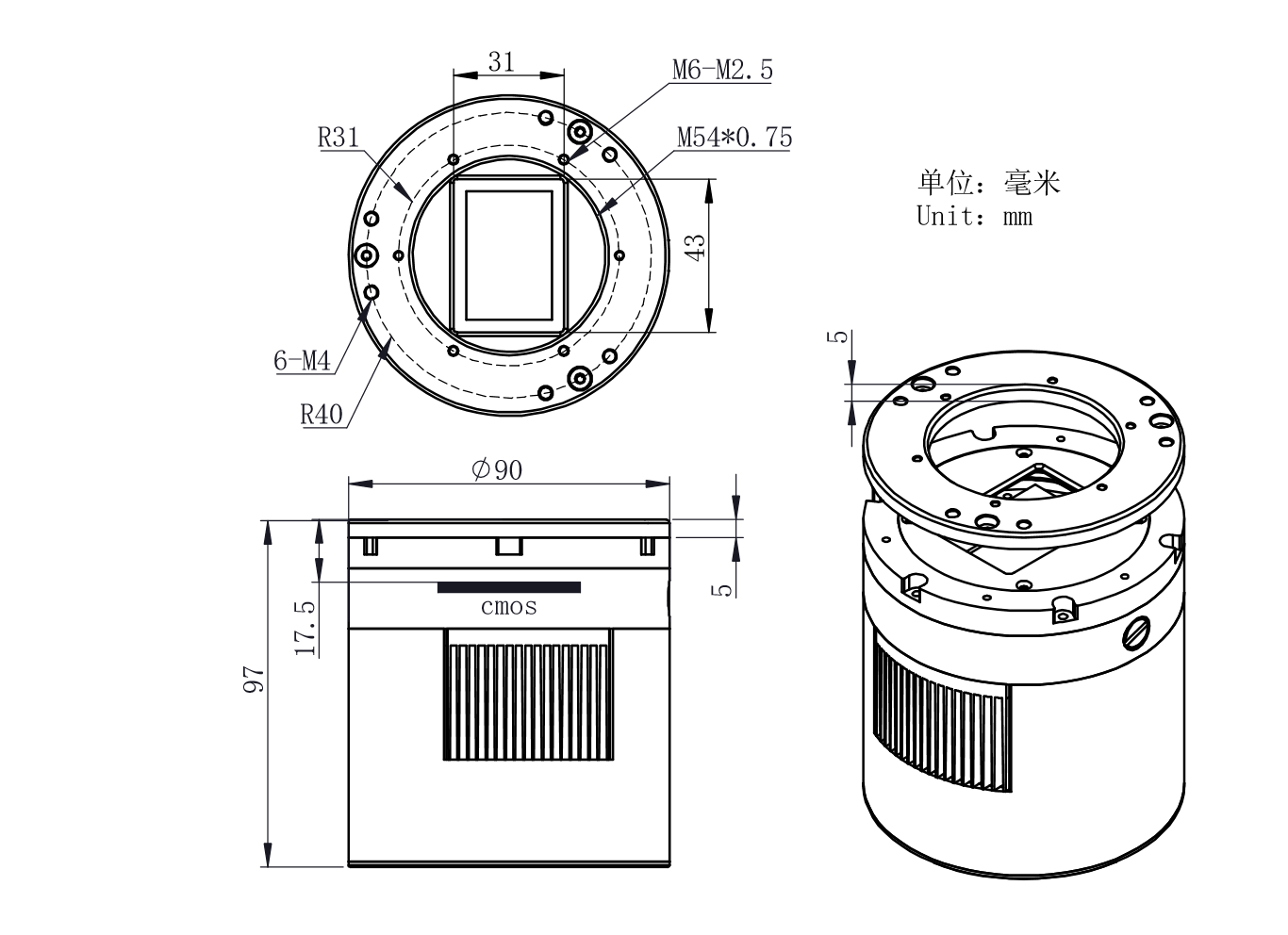

• dimensions: 90 x 97 mm 16-bit ADC
• 9576×6388 @ 3.19fps
• 7680×4800 @ 5.29fps
• 6400×4096 @ 7.44fps
• 4096×2160 @ 14.35fps
• 3840×2160 @ 14.35fps
• 1920×1080 @ 28.04fps
• 1280×720 @ 41.12fps
• 640×480 @ 59.67fps

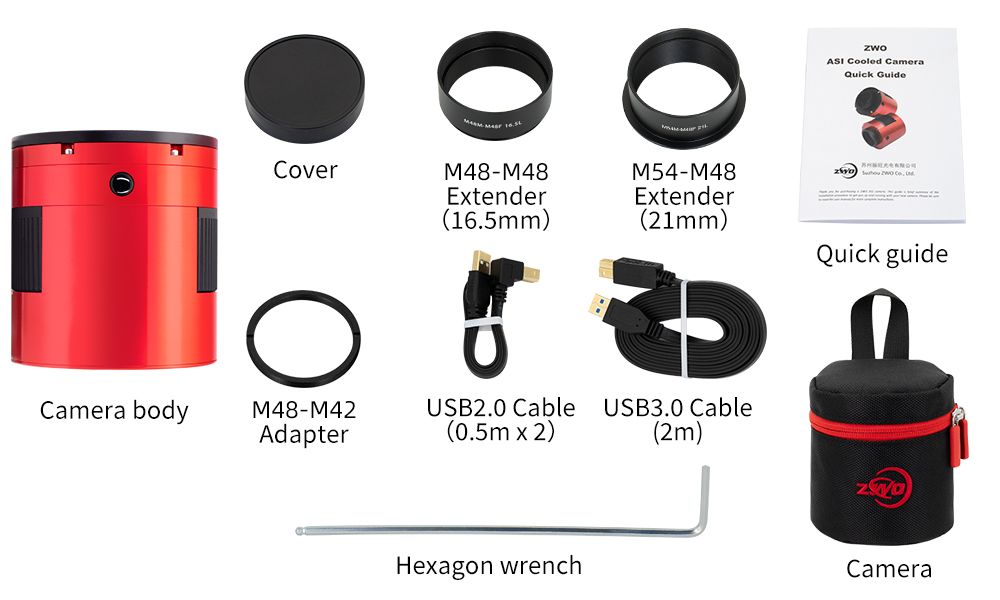

• 320×240 @ 108.72fps • ASI 6200MM-PRO camera
• cover
• USB 3.0 cable (2m)
• 2x USB 2.0 cables
• adapter ring T2, 21 mm
• adapter ring T2-M48, 16.5 mm
• adapter ring M54-M48, 21 mm
• M42-M48 adapter
• 2" plug
• Allen key 24 months
|
